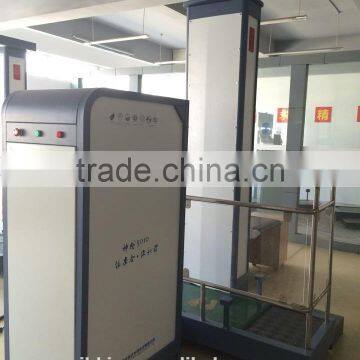

Customs X-ray human body screening system

JH-5010 Micro-dose Human body X-ray Scanner

Main Features of the body security anti-thief detection system:

1.Detecting the full ranges

body security anti-thief detection system can inspect the foreign matter concealed inside or outside of human body, but X backscatter and millimeter wave detector can only inspect the foreign matter and metal concealed outside of human body.

2.Protection of personal privacy

body security anti-thief detection system uses mini dose of x-ray radiation technology without showing human privacy, but X backscatter detectors and millimeter-wave detectors show human privacy, a definite invasion of privacy.

3.High inspection efficiency Time

per inspection of body security anti-thief detection system needs less than 2 seconds, but inspection times of other various brands need more than 10 seconds. Body security anti-thief detection system is suitable for places with a large flow of people to detect uninterruptedly, but other detectors do not have this function.

4. Inspection of low dose NB,Dose per inspection is less than 0.05

5. The Lowest inspection dose of body security anti-thief detection system closely approximate to natural radiation

6. Customized service Customized products are accepted according to different requirement

Application:

• Detecting for enterprises and armies.

• Detecting for court, prison,Customs,GOV.

• Detecting for entering or exiting mines.

• Explosion-proof for detecting contraband at airport,railway station,subway.

• Anti-shoplifting for jewelry stores , bank, precious metals.



  Technical Specification:



  Wire display……………………………………………...40AWG (0.0787mm)

  Spatial resolution…………..........................................1.0mm

  Displayer............................................................................24' LCD

  Time per inspection...........................................................<3.5s

  Moving pavement speed...................................................0.2m/s

  Detecting dose...................................................................<0.05µGy



  Operating Environment

  Ambient temperature range.............................................0~ 104F

  Relative humidity range..................................................0~80%

  Atmospheric pressure range............................................86KPa~106KPa



  Installation Data

  Power...............................................................................<1000W

  Voltage.............................................................................180V-240V

  Frequency.........................................................................50Hz/60Hz

  Weight..............................................................................650kg

  External dimension..........................................................2100 x1700 x2500mm

  Moving pavement dimension..........................................1500 x520 x200mm

  Operating temperature.....................................................0-104F

  Storage temperature........................................................-4-140F



  Image processing: Detail enhancement, super enhancement, spatial display,anti-color, contrast stretch, partial enhancement, pseudo color.

  Image enlarge: Optionally scan parts, continuous zoom, magnification of 1-32 time

  Image storage: Automatic storage, Select the storage,Image retrieval ,Format conversion (bmp,jpeg,tiff and so on).

  USB interface makes your imaging external storage easily.

  User management: User rights management add or delete user's account,operation privilege setting.

  Auxiliary management: Time and date,people counting,working chronograph, operation log,maintenance & diagnose,X-ray beam Timer.

  Others: Photograph, suspect information inputting,video recording.
