PP PE PVC Waste Plastic Pelletizer Machine for Recycling

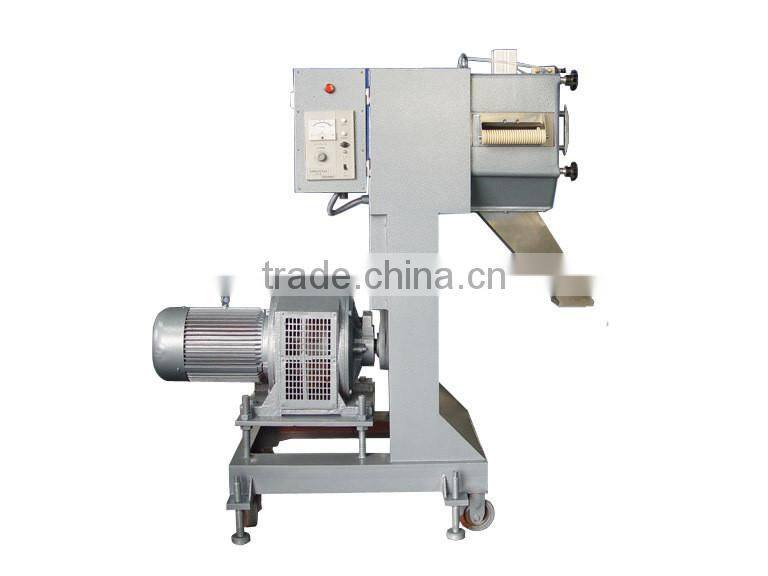

PP PE PVC Waste Plastic Pelletizer Machine for Recycling photo-1
US$ 999 - 1,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Granulating Production Line
Capacity:
500kg/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Granulating Production Line
Capacity 500kg/h
Place of Origin Jiangsu, China
Brand Name Haisi
Model Number HS-LQ
Material Other, PP/PE/PVC/ABS/EVA
Screw Design Double
Voltage 380V 50HZ
Power 5.5-7.5KW
Dimension(L*W*H) 1530*750*1630 mm
Weight 1500-4000kg, 1500-4000kg
Certification CE ISO9001, CE ISO SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description


Characteristics of the Plastic Pelletizer/Cutter/Granulator Machine

High quality & reasonable price
Low noise
Easy operation
Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
Produced as customer required
Motor can be controlled by Frequent Inverter control to meet customer productivity demand.



Parameter Table of Various Pelletizer/Cutter/Granulator Machine

Model

HS-LQ 60

HS-LQ 300

HS-LQ 500

HS-LQ 900

Max output

60kg/hr

300kg/hr

500kg/hr

900kg/hr

No. of strand

6

15

625

42

Standard pellet

3*3mm

3*3mm

3x3mm

3x3mm

Cutter dimension

(L*W*H)

120x60mm,

14 tooth

120x100mm,

32 tooth

200x200mm,

32 tooth

200x300mm,

32 tooth

Effective rotation speed

350-1000rpm

350-1000rpm

350-1000rpm

350-1000rpm

Haul off speed

0-36m/min

0-96m/min

0-96m/min

0-96m/min

Motor power

1.5kw

3kw

5.5kw

11kw

Rotated cutter   clearance

0.06-0.12mm

0.08-0.12mm

0.08-0.12mm

0.08-0.12mm

Leading roller

PU

PU

PU

PU

Driver control

Frequency inverter

AC motor

3 Phase / 380 V / 50 Hz

Material of cutter

High-speed Steel / Hard Alloy

 PP PE PVC Waste Plastic Pelletizer Machine for Recycling



The Pellets Application


Mixing Nature-Changing → PE/PP+SBS;PP+NBR;EVA+Silicon RubberPP+ABS(Alloy) ; PP+PEProcess → Representative Materials

Filling Nature-Changing→PP/PE/EVA+Calcium Carbonate/Talcum Powder/Titanic Powder ;

ABS+Aluminum Hydroxide/Magnesium Hydroxide/Antimony Oxide ;

PP/ABS+Ferrous Powder/Sulphuric Powder/Ceramic Powder

Functional Machine Pellets → PP/ABS+Anti-Burning Agent and Other Auxiliary Agent

PE/PP+Starch ; PE+Frog-Preventing Dlipper/Stabilizer ; PE/EVA/ABS+Carbon Black

Colored Machine Pellets → PE/PP/ABS/EVA+Pigment and Auxiliary

Intensified Glass Fibres and Carbon Fibres → PP/ABS+Long Fibre/Small Fibre/Carbon Fibre/Crystals

Various Cables → EVA/PVC/PP Lnsulating Cables; PE peroxide

Special Materials → EVA Heat-Melting Glue; PP Cigarette Filterial

Heat-Susceptible Plastics → PVC Cables;EVA Sole; PE Peroxide Crossing Cables

PE Silicon Alkyl Crossing Cables; PE Crossing Piping; PE/EVA Crossing Shield



PP PE PVC Waste Plastic Pelletizer Machine for Recycling



Packaging & Shipping

Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.



PP PE PVC Waste Plastic Pelletizer Machine for Recycling

Our Services

Company Information





Nanjing Haisi Extrusion Equipment Co., Ltd. has a professional sales team, personal contact with customers, regular reminders and solve installation, maintenance, repair and other problems encountered by customers in the mechanical operation of the equipment failure analysis and quick to do the maintenance program, in any country and region can get our professional and technical personnel of the most timely and quality service.





PP PE PVC Waste Plastic Pelletizer Machine for Recycling



Ce and ISO 9001 Certificates

PP PE PVC Waste Plastic Pelletizer Machine for Recycling

Service Stystem





Before-sale

 Introduce products in detail  • Recommend suitable solution   • Offer test

During manufacturing

• Provide layout and engineering conditions   • Offer screw plan and related documents

• Inform the project processing status  • Insure the product designed in accordance with technical document

After-sale

• Provide installation, commissioning and training • Offer spare parts

• Provide necessary technical support and update information.



 PP PE PVC Waste Plastic Pelletizer Machine for Recycling

FAQ

 1. Q: How about Haisi?

    R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.

2. Q: What's Haisi capacity?

    R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.

3. Q: What's the delivery time?

    R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.

4. Q: Where is Haisi factory and how to reach there?

    R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.

5. Q: How to contact with us?

    R: Plz reply to me directly if you have any question.
