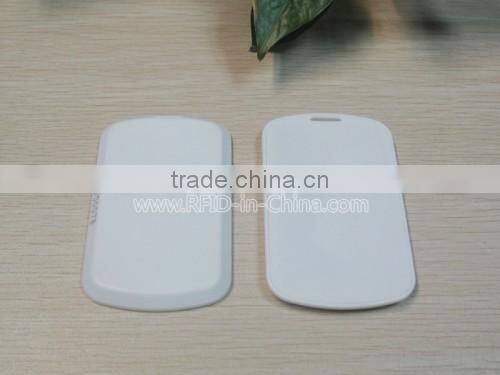

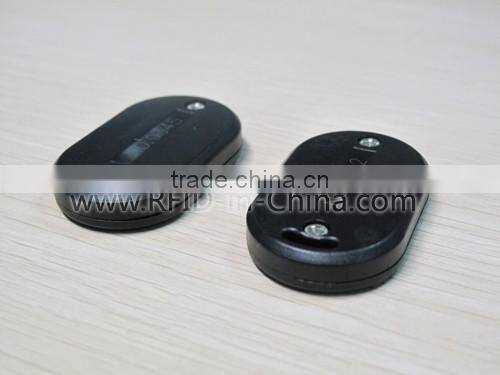

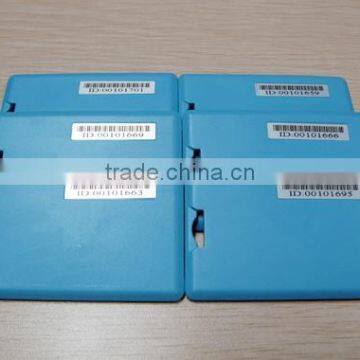

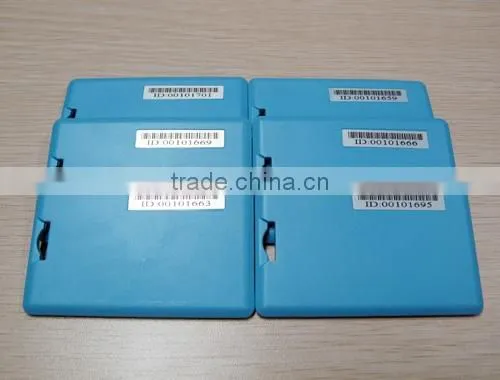

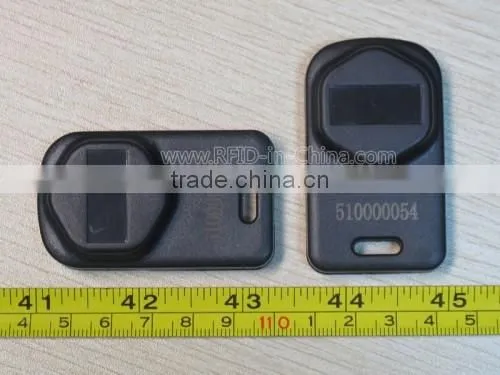

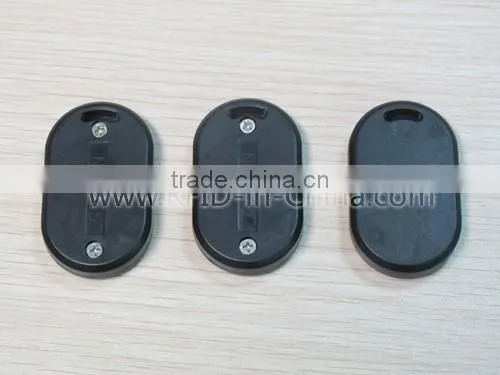

Types of RFID Tags with High Identification Rate

Electrical Characteristics

l      Static Current: <3µA

l       Operating Current: <15mA, Peak Current: <40mA

l       Bettery Life: <4.5 years

l       Working Speed: About 5 times / 2s

Microwave Link Characteristics

l       Rate of Communication: Bidirectional, 1024K bits/s

l       Operating Frequency: 2.4~2.5GHz

l       Reading Distance: <80M

Physical Characteristics

l       Material of Shell: ABS

l       Type: Read Only

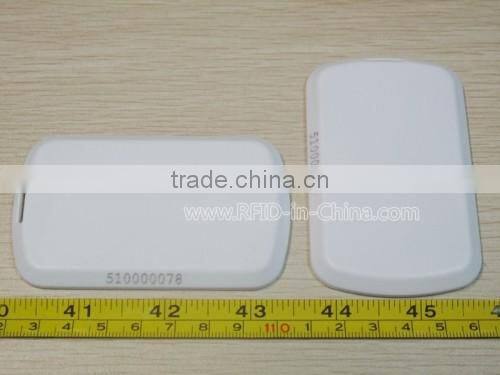

l       Dimension: 86*54*4mm

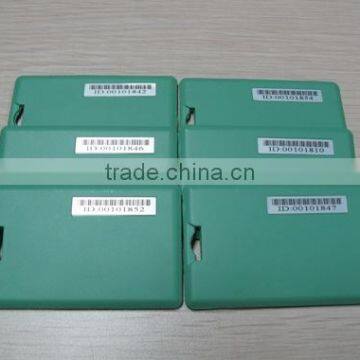

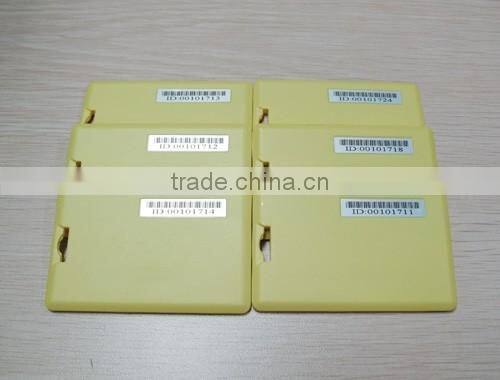

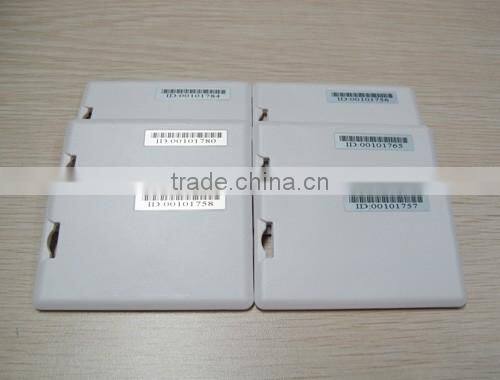

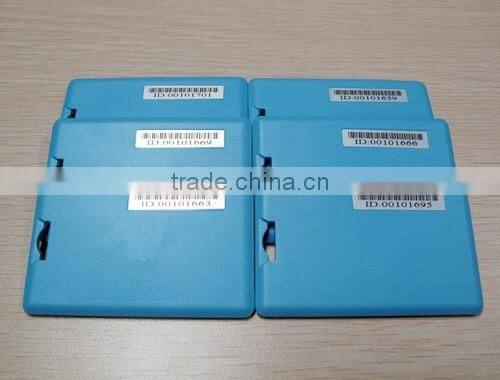

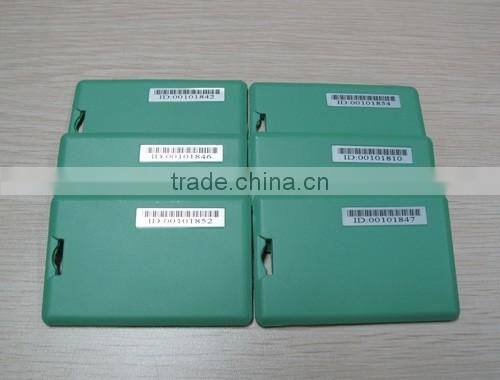

l       Color: White, Yellow, Blue, Green

l       Protection Standard: Waterproof IP34

l       Installation: Hanging, Sticking to the Object Surface

Working Environment

l       Operating Temperature: -40℃ ~ +80℃

l       Operating Humidity: <85%

l       Storage Temperature: -40℃ ~ +80℃

l       Shake: 10 ~ 2000Hz, 15g Three Axis

l       Anti Electromagnetic Interference: 10V/m 0.1 ~ 1000MHz AM Amplitude Modulated Electromagnetic Wave

Feature & Advantage

1.    Anti-Collision: Identify 100pcs Tags/s

2.    High Identification Rate: Up to 200km/h

3.    Identification Security:Encryption and Authentication to ensure Data Security and Prevent Eavesdropping and Data Cracking

4.    Identification Direction: Directional and Non directional Identification Available

5.    High Identification Reliability: -40℃ ~ +85℃, Anti Shock

6.    Effective Cost: Using 0.18uM Chips lead to Lower Cost

7.    Transmission:Low Frequency and High Frequency are Global Open Microwave Band,Applilication and Charges are not needed.

8.    Anti Interface:No Special Requirements for the Various Kinds of Interference Source
