5w data radio/ rf transmitter and receiver

Specifications

1) 5W data radio with CE, FCC
2) Frequency: 136-174MHz,12.5Khz,25Khz
3)Dimensions: 120*60*20mm
4)Weight:170g

Product Description:



 FC-301/D is a synthesized 5-watt FM transceiver module which is designed for data as well as voice (with selectable pre-emphasis, squelch, and audio amplifier). Two-point modulation for good low-frequency response used in the radio makes it a good choice to work with 9600 baud data modem. Compact size and multi-voltage DC connection capability gives the module flexibility in use.





Technical Specifications:

•       Frequency band: 136-174MHz
•       Operation voltage: DC12.5V
•       Transmit 5 Watts RF Power :< 1.5A
•       Transmit 1 Watt RF Power:<0.8A
•       RX current: 40mA
•       RF output power:  1W - 5W Programmable
•       Channel Spacings:25KHz,12.5KHz programmable
•        Modulation type :16K0F3E ,8K5F3E
•        Intermediate Frequency: 45.1MHz&455KHz
•        Number of Channels:16
•        Frequency Source :Synthesizer
•        Operation Rating:Intermittent   5:5:90 ( TX: RX: Standby)
•        Storage:from  -40°C to +80°C
•        Operating:from  -30°C to +60°C
•        Dimension: 120*60*20mm(Length * width * height)



Other accessories



FC-301/D can transfer both data and audio.



If customer needs to transfer data,  a data modem is a must, as below.

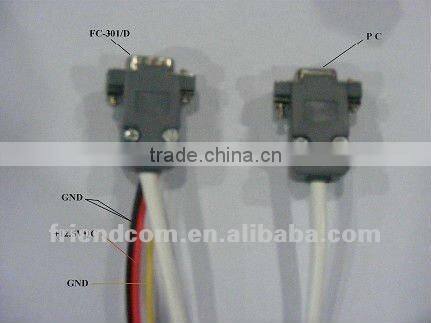

Program cable for programming FC-301/D, connect it to computer.

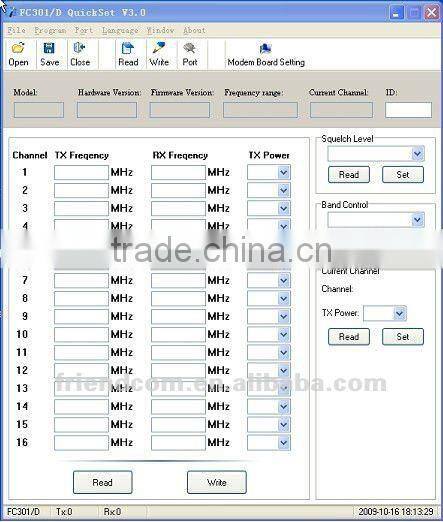

Software for easy programming.









Antenna
