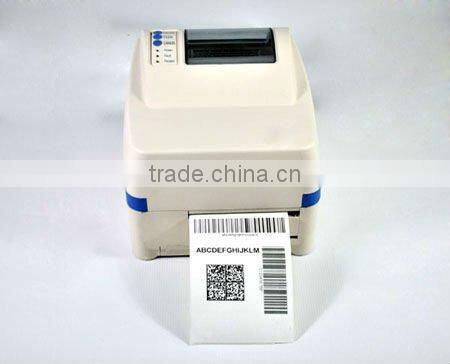

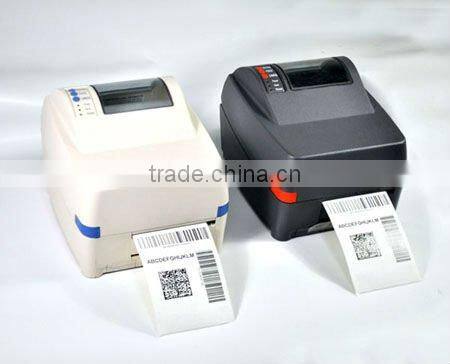

Mini Barcode Print qr Code Printer MP-3

Specifications

Thermal Barcode Printer

Main specification:

Print technology : Direct thermal, thermal transfer (optional)

Print width(maximum ) 4.25” (108 mm)

Resolution (maximum) : 203dpi (8 dots/mm)
Print speed: 5 ips [127 mm/s]

Physical characteristics:

Dimensions:
– 7.05” H x 8.77” W x 10” D
(179mm H x 223mm W x 254mm D)
• Weight:
– 5.2 lbs. (2.4kg)
• Color:
– Available in light or dark case colors
• Operating temperature:
40°F to 95°F (4°C to 35°C)
• Construction:
– Cantilevered full access printhead with die
cast metal frame
– Plastic shell, clear top window to easily
monitor media supply levels
• Power source:
– External auto-ranging power supply; specify
appropriate power cord when ordering

Integration:

Communication ports:
– Standard: USB, Parallel Centronics®, Serial
RS232 (DB-9) up to 38,400 BPS
– Optional: Internal Ethernet 10/100 Base-T Fast
Ethernet, Internal 802.11b/g wireless LAN with
WPA security (WEP 64, 128, PSK; WPA LEAP,
64, 128; PSK64, 128; TKIP+40, +128)
• Software
– DMX Config: Complete printer setup utility
– DMX NetManager
– Embedded Network Web Pages
– Windows Drivers - NT, XP, Vista
• Firmware
– Updates: Regular updates available online
– Universal printer

Print length range:

– 0.375” - 100” (9.5mm - 2540mm)
– min length of 1.25” (31.8mm) with
optional cutter installed

Warranty :

Printer*: 1 year (including platen roller and
installed options)
• Printhead*: 1 year or 1,000,000 inches
whichever comes first
• Contact sales representative for extended
warranty options

Accessories:

Battery pack • External rewinder
• External media supply stand
