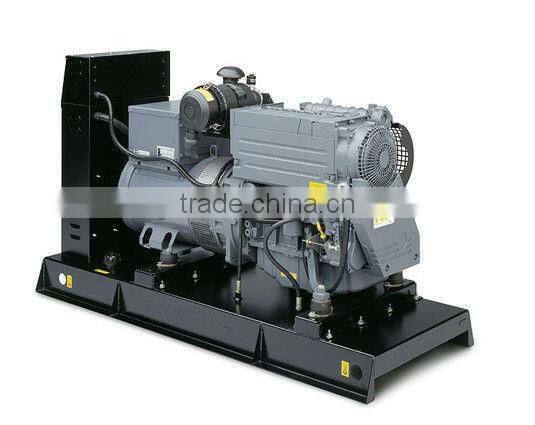

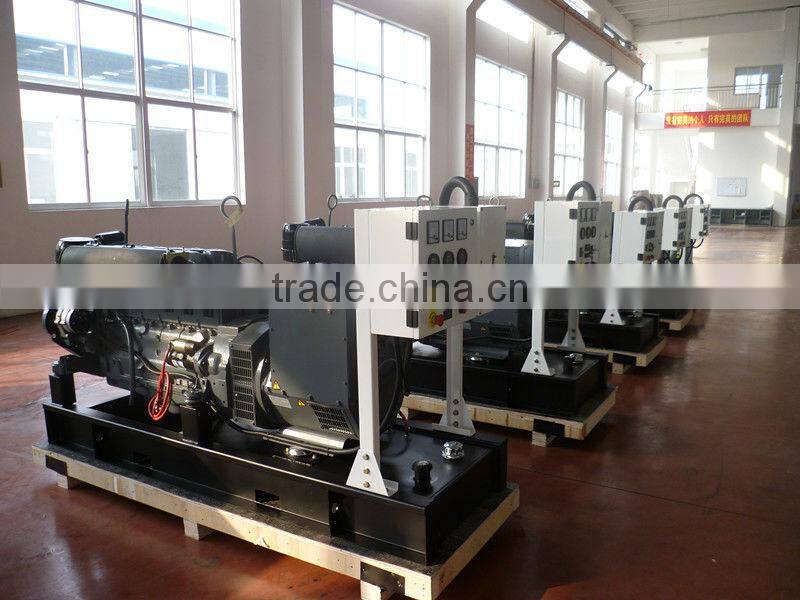

15kva to 70kva Deutz Air-cooled Genset

Specifications

Air-cooled Genset
1)Deutz Engine With Stamford
2)Low noise & low fuel consumption
3)Two Year Warranty
4)CE & ISO 9001

           15kva to 70kva Deutz Air-cooled Genset

DEUTZ engine is one of the most famous engines in the world. It gains plenty of users’ trust with its advanced performance. It is four strokes air-cooled industrial engine.

It is based on German technique, combined the outstanding feature of compact structure,big power, low fuel consumption, small size,light weight, high Reliability and durability, slight vibration,low noise, convenient using and easy maintenance. Its exhaust emission comes up to  EURO 2,3 standards





Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRD18A	12	15	14	18	F2L912	≤238	2	1.88	100*120
GNRD37A	28	35	30	37	F3L912	≤232	3	2.82	100*120
GNRD41A	31	39	33	41	F3L913	≤228	3	3	100*125
GNRD52A	38	47	42	52	F4L912T	≤228	4	3.77	102*125
GNRD55A	40	50	44	55	F4L913	≤228	4	4.08	100*120
GNRD65A	48	60	52	65	F4L912T	≤228	4	4.08	102*125
GNRD75DA	50	62	60	75	BF4L912	≤221	4	4.08	102*125
GNRD77A	55	69	62	77	F6L912	≤228	6	5.65	100*120
GNRD85A	64	80	68	85	F6L913	≤228	6	6.12	102*125
GNRD96A	72	90	77	96	F6L912T	≤228	6	6.12	100*120
GNRD102A	78	97	82	102	BF6L913	≤228	6	6.12	102*125
GNRD144A	105	131	115	144	BF6L913C	≤228	6	6.12	102*125





Specifications:

1. Output range: 12KW to 105KW

2. Available Engine: Deutz

3. Small volume, light weight, low noise, low fuel consumption, Air-cooled with water tank and fanair cooling

4. Key start / auto start

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

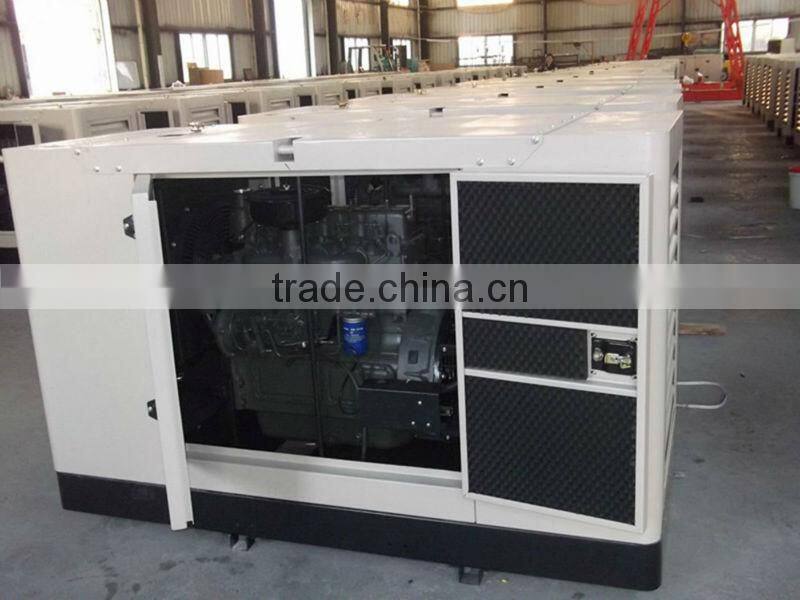

7. Soundproof / weatherproof canopy optional



Alternator:

1. Brushless, 4 poles, rotation magnet

2. IP21-23(NEMA1) enclose is standard for all industrial alternators

3. H class insulation system

4. AVR self-regulated, voltage regulation rate: ≤±1%

5. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

6. Wide range of flange adaptors and single bearing disc coupling

7. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

8. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop



Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.



Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
