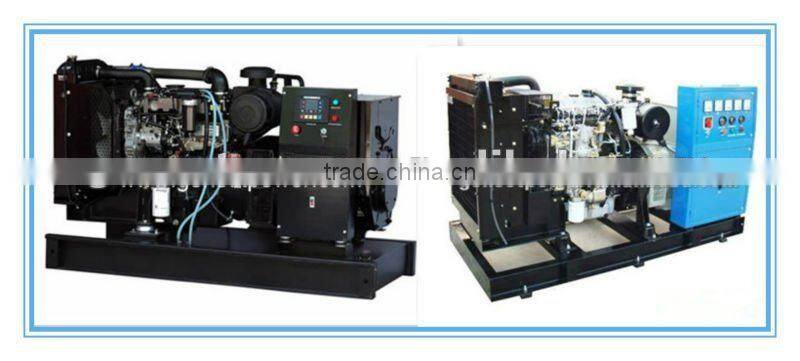

235kva and 270kva diesel engine powered generators made in UK

FOB Price

USD $8,000 - $78,955 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	UK	Model Number:	GNRP
Output Type:	AC Three Phase	Speed:	1500rpm or 1800rpm	Frequency:	50Hz or 60Hz
Rated Power:	16kw to 1000kw	Rated Voltage:	220V/380V, 230V/400V, 240V/415V	Rated Current:	29A to 1800A

Product Description

Specifications

diesel engine powered generators
1.UK imported engine ,water-cooled
2.230V/400V,3phase,50Hz
3.Smartgen control panel

Diesel engine powered generators made in UK

1,UK Series Engine

UK engine is one of the world’s leading diesel engine manufactures since 1932, nearly 400,000 units for one year, quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust, long period maintenance. In the auto car, construction, agricultural, industrial and marine markets, major original equipment manufacture choose Engines because of its fuel, nature gas elding for reliable and durable use.

2,Alternator

1)Optional Brand: Engga, Stamford, Marathon,leroy somer …

2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.

3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59

3,Digital Control Panel

Controller Brand: Smartgen

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.

4,Optional Diesel Genset Accessories

Engine	Heater	Battery Charger
Fuel System	Daily Fuel Tank	Base Fuel Tank
Control System	Auto Control Panel	Remote Control Panel	Auto Transfer Switch (ATS) Control Panel
Alternator	Single phase, three phase	Brushless, carbon brush
Type	Weatherproof Type	Soundproof Type	Trailer type
Spare Parts	Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List

5,Warranty and Maintenance

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first, global warranty for Perkins.

3) After expiration, we provide spare parts maintenance with low price.

Engine for generator

Alternator

Control system with ATS :

1.Auto start when power goes out

2.Auto stop when power comes back on

3.Worldwide technical support with programmable software download

4.Full online documentation

5.Trouble shooting symbols to assist owner on concerns with the generator

6.Safety shutdown feature to protect the engine and generator from damage

7.Totally digital with few points of contact to the engine to increase reliability

8.Exercise features and daily start and stop programmable

UK Generator
