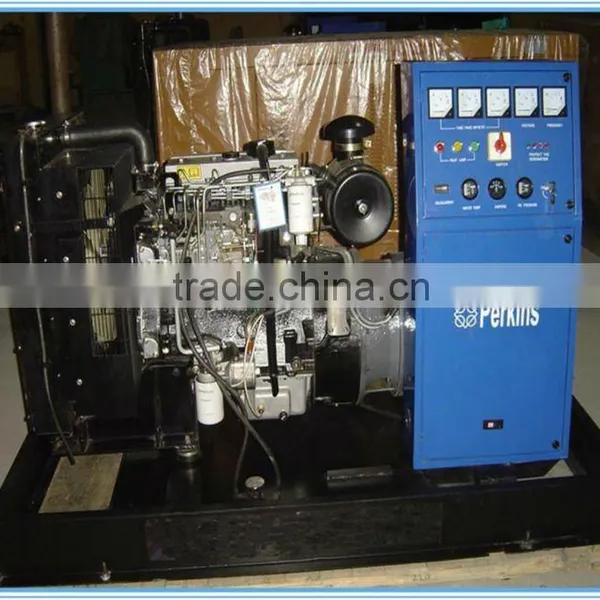

With Perkins diesel engine 27kw home emergency standby generator

FOB Price

USD $6,785 - $7,599 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	GENOR POWER	Model Number:	GNRP
Output Type:	AC Three Phase	Speed:	1500rpm or 1800rpm	Frequency:	50Hz or 60Hz
Rated Power:	9kva to 1250kva	Rated Voltage:	220V/380V, 230V/400V, 240V/415V	Rated Current:	13A To 1800A

Product Description

With Perkins diesel engine 27kw home emergency standby generator

UK imported diesel generator have earned a reputation for ease of service along with low costs of maintenance and repair and all Power part products carry an unequivocal 12-months warranty from date of purchase.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRP10	7	9	8	10	403D-11	≤252	3	1.131	77*81
GNRP15	10	13	12	15	403D-15	≤264	3	1.496	84*94
GNRP23	16	20	18	23	404D-22	≤243	4	2.216	84*100
GNRP33	24	30	26	33	1103A-33G	≤210	3	3.3	105*127
GNRP50	36	45	40	50	1103A-33TG1	≤212	3	3.3	105*127
GNRP65	48	60	52	65	1103A-33TG2	≤211	3	3.3	105*127
GNRP73	52	65	58	73	1104A-44TG1	≤207	4	4.4	105*127
GNRP88	64	80	70	88	1104A-44TG2	≤213	4	4.4	105*127
GNRP103	75	94	82	103	1006TG1A	≤210	6	5.99	100*127
GNRP150	110	138	120	150	1006TAG	≤205	6	5.99	100*127
GNRP165	120	150	132	165	1006TAG2	≤205	6	5.99	100*127
GNRP225E	165	206	180	225	1306C-E87TAG3	≤220	6	8.7	117*136
GNRP250E	180	225	200	250	1306C-E87TAG4	≤219	6	8.7	117*136
GNRP259E	188	235	207	259	1306C-E87TAG5	≤221	6	8.7	117*136
GNRP275E	200	250	220	275	1306C-E87TAG6	≤223	6	8.7	117*136
GNRP344E	250	313	275	344	2206C-E13TAG2	≤201	6	14.6	137*165
GNRP388E	280	350	310	388	2206C-E13TAG2	≤198	6	14.6	137*165
GNRP450E	320	400	360	450	2206C-E13TAG3	≤201	6	14.6	137*165
GNRP500E	360	450	400	500	2506C-E15TAG1	≤216	6	15	137*171
GNRP550E	400	500	440	550	2506C-E15TAG2	≤211	6	15	137*171
GNRP625E	450	563	500	625	2806A-E18TAG1A	≤196	6	18.13	145*183
GNRP700E	508	635	560	700	2806A-E18TAG2	≤203	6	18.13	145*183
GNRP800	580	725	640	800	4006-23TAG2A	≤199	6	22.921	160*190
GNRP900	640	800	720	900	4006-23TAG3A	≤200	6	22.921	160*190
GNRP1000	720	900	800	1000	4008-TAG1A	≤206	8	30.561	160*190
GNRP1125	818	1022	900	1125	4008-TAG2A	≤208	8	30.561	160*190
GNRP1375	1000	1250	1100	1375	4012-46TWG2A	≤212	12	45.482	160*190

Genset Features:

1. Genuine UK industrial diesel engine

2. Radiator 40°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9.Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler

14. Comply with ISO and CE standards

15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Engine Features:

1. Genuine UP industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA
