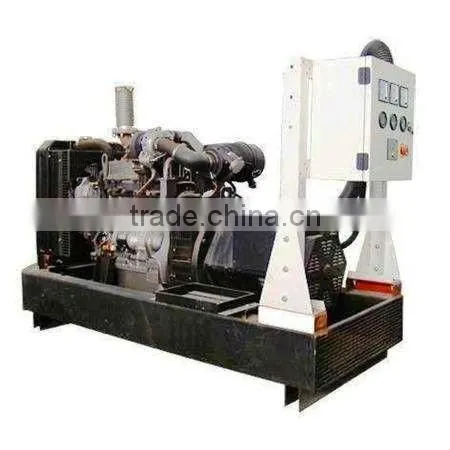

Super Silent ! 15kva Yanmar Generator

  Japan Yanmar Silent Portable Generators

Gensets compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N

Prime output power: 7kw to 45kw

Rated voltage:400/230v, 440/254v, 220/127v, etc.

Phase/connecting method: 3 phase 4wire/Y type connection

Rated frequency: 50/60hz

Rated speed: 1500/1800rpm

Excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

 Engine: Yanmar

a) 4-stroke
b) Water cooling
c) Direct combustion chamber
d) Supercharging internal cooling
e) Integrated high intensity cylinder

Alternator

Engine can be coupled with WT series A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator according to customers’ demand.

 Gensets can be open type or soundproof (silent) type.

Controller system

1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.

2.It can be with ATS electric control cabinet, including circuit breaker,  LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…

Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
