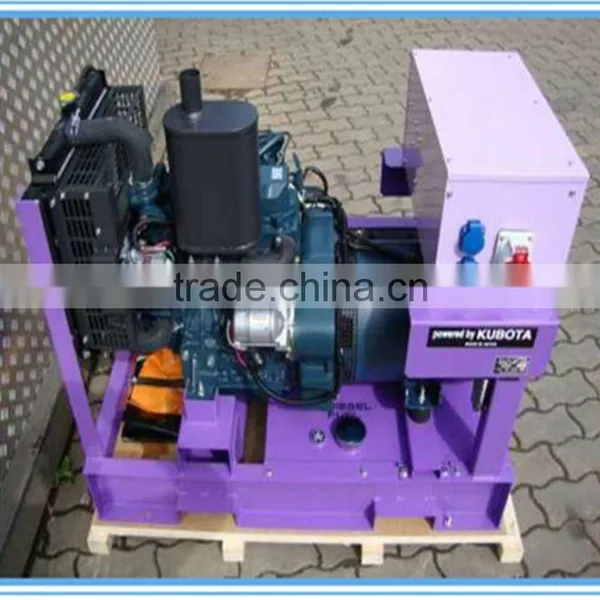

Kubota Portable Diesel Generator 8kw

Specifications

Portable Diesel Generator 8kw
1.CE,ISO,Soncap Cerificate
2.Deepsea controller, ATS AMF
3.1500 hours/12 months warranty

  Kubota Portable Diesel Generator 8kw



1.Composed of of Kubota diesel engine and Stamford or Leroy Somer alternator
2.12V DC start motor and storage battery
3.Brushless, Self-excited, IP23, insulation class H alternator
4.40°C radiator as standard, 50°C is optional
5.Key start panel control system as standard, digital auto-start panel is optional
6.8-hour operation base tank
7.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function

Prime Power	8KW/10KVA	Standby Power	8.8KW/11KVA
Rated Speed	1500RPM	Output Frequency	50HZ
Phase	3	Rated Voltage	400V
Engine Model	D1105-E2BG-CHN-1	Alternator Model	PI044E
Fuel Consumption of 100% load	3.2L/H	Fuel Consumption of 75% load	2.4L/H
Voltage Regulation Rate	≤±1%	Random Voltage Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%
Dimension (open type)	1000×600×820(mm)	Weight (open type)	300kg
Dimension(silent type)	1300×650×900(mm)	Weight (silent type)	400kg



Prime Power:
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annul hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby Power:
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Rated Voltage:
Available with customer requirements.



Kubota  Diesel Engine

Engine Model	D1105-E2BG-CHN-1
Number of Cylinder	3
Cylinder arrangement	Vertical in-line
Cycle	Four Stroke
Aspiration	Natural Aspiration
Bore×Stroke (mm×mm)	78×78.4
Displacement (L)	1.123L
Compression Ratio	22.0:1
Prime Power/Speed(KW/rpm)	8.5/1500
Standby Power/Speed(KW/rpm)	9.4/1500
Speed Governor	Electrical
Cooling System	Water-cooled, 4°C Radiator As Standard, 50°C Is Optional
Speed Stability(%)	≤5%
Total Lubrication System Capacity (L)	5.6
Coolant Capacity(without radiator) (L)	5.5
Fuel Consumption at 100% Load(g/kwh)	3.2(at 1500RPM)
Starter Motor	DC12V
Alternator	AC12V



Alternator Specifications

Alternator Model	PI 044E
Alternator Brand	Stamford
Exciter Type	Brushless, Self-excited
Rated Output	8kw/10kva
Rated Speed	1500RPM
Rated Frequency	50HZ
Phase	Three
Rated Voltage	230V/400V (Available with customer requirements)
Power Factor	0.8
Voltage Adjust Range	≥5%
Voltage Regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Other alternator option: Leroy Somer



Control System
Harsen GU601A Genset Controller
Description:
The GU601A is an Automatic Start Control Module designed to automatically start and stop the Generator.The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s.
1.Configuration of parameters by front panel push buttons or by PC via mini USB interface with license free software.
2.Configurable fuel output energise to stop energise to run.
3.3Configurable inputs.
4.3 Configurable outputs.
5.2 Analogue inputs configurable for different senders for oil pressure and engine temperature.
6.True RMS measuring
