Mitsubishi Generators In Pakistan

Name: Mitsubishi Generators In Pakistan
Brand: Mitsubishi
Price: USD $86,520 - 169,835 / Set

FOB Price

USD $86,520 - $169,835 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Mitsubishi	Model Number:	GNRM
Output Type:	AC Three Phase	Speed:	1500rpm or 1800rpm	Frequency:	50Hz or 60Hz
Rated Power:	375KVA to 2000KVA	Rated Voltage:	220V/380V, 230V/400V, 240V/415V	Rated Current:	540A to 2880A

Product Description

Specifications

Mitsubishi Generators In Pakistan
1 Mitsubishi Diesel Generator
2 Low Fuel consumption
3 High efficiency
4 CE

Mitsubishi Generators In Pakistan

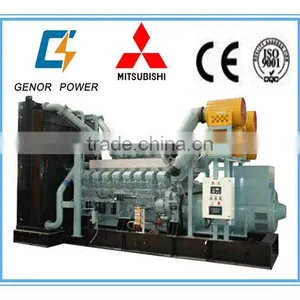

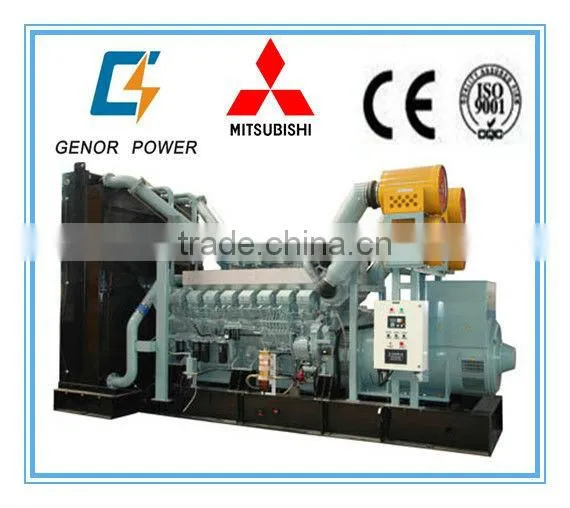

Our company install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180
GNRM1875	1300	1625	1500	1875	S16-PTA	≤207	16	65.4	170*180
GNRM2100	1500	1875	1680	2100	S16-PTA2	≤207	16	65.4	170*180
GNRM2250	1600	2000	1800	2250	S16-PTAA2	≤207	16	65.4	170*180

The feature of Mitsubishi series diesel generating sets

Steady $ credible running, high shock resistance, strong load resistance, sufficient output power.

Low oil consumption, low emission;

Easy and cheap maintenance;

Small and light figure

Electric capability of diesel generator sets.

Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502

Technical requirement of special diesel generating set for telecom.

Voltage Regulation(%):Steady state≤±1 Transient state -15~+20

Frequency Regulation(%):Steady state≤±1 Transient state -7~+10

Voltage Fluctuation ratio(%):≤0.5

Frequency Fluctuation ratio(%):≤0.5

Voltage stabilization time(When the load changes suddenly): ≤1S

Frequency stabilization time(When the load changes suddenly): ≤3S

Waveform Distortion(%):≤5

Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820

To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.

Diesel Engine

Stroke: 6-16

Combustion system: Direct spray or Electronic spray

Start: DC start

Cooling: Coolant radiator with fan

AC Generator

Structure Characteristics: Single bearing, automatic voltage regulation (AVR)

Excitation: Brushless & self-excited

Insulation: H grade

Level of protection: IP21 or IP23

control Box

Manual/Automatic start & stop controller

Various Monitor Meter and Optional Switch

Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)

MCCB for Short circuit & Overload (optional)

High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm

Standard scope of supply

Diesel generating set include:

Diesel engine (with all standard accessories, filters and electric system)

Radiator (with water tank and fan)

Alternator

Control panel

Steel base frame

All above parts are assembled into a whole
