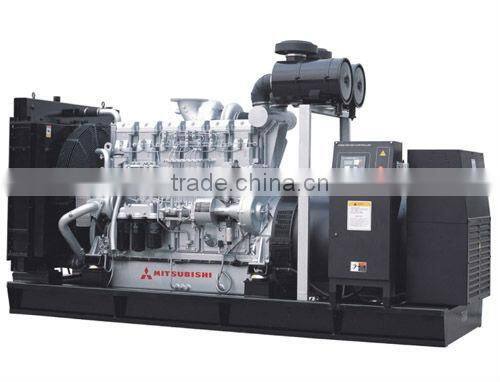

600kw to 1500kw Mitsubishi Generator

Name: 600kw to 1500kw Mitsubishi Generator
Brand: Mitsubishi
Price: USD $85,320 - 158,650 / Set

FOB Price

USD $85,320 - $158,650 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Mitsubishi	Model Number:	GNRM
Output Type:	AC Three Phase	Speed:	1500rpm or 1800rpm	Frequency:	50Hz or 60Hz
Rated Power:	300kw to1200kw	Rated Voltage:	6KV/11KV	Rated Current:	96A/58A

Product Description

Specifications

Mitsubishi Generator
1 OEM Mitsubishi,Stamford
2.Stable Quality
3.High efficiency and reliability
4.CE & ISO9001

600kw to 1500kw Mitsubishi Generator

Our company install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180

Electric capability of Genor diesel generator sets.

Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502

Technical requirement of special diesel generating set for telecom.

Voltage Regulation(%):Steady state≤±1 Transient state -15~+20

Frequency Regulation(%):Steady state≤±1 Transient state -7~+10

Voltage Fluctuation ratio(%):≤0.5

Frequency Fluctuation ratio(%):≤0.5

Voltage stabilization time(When the load changes suddenly): ≤1S

Frequency stabilization time(When the load changes suddenly): ≤3S

Waveform Distortion(%):≤5

Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820

To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.

Diesel Engine

Stroke: 6-16

Combustion system: Direct spray or Electronic spray

Start: DC start

Cooling: Coolant radiator with fan

AC Generator

Structure Characteristics: Single bearing, AVR or DVR

Excitation: Brushless & self-excited

Insulation: H grade

Level of protection: IP21-23

Control Box

Manual/Automatic start & stop controller

Various Monitor Meter and Optional Switch

Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)

MCCB for Short circuit & Overload (optional)

High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarms

Standard scope of supply

Diesel generating set include:

Diesel engine (with all standard accessories, filters and electric system)

Radiator (with water tank and fan)

Alternator

Control panel

Steel base frame

All above parts are assembled into a whole

Other standard parts:

Anti-condensation heater for alternator

Effective muffle

Exhaust elbow

Bellows

Storage battery and connection wires

Shock absorber

Technical documents

Optional equipments

High voltage switchgear

DC Power System or Inverter

Auxiliary device for starting at low temperature

ATS (Automatic transfer switch)

Genset combined device

Water forewarmer

Moisture eliminator of alternator

Various kind of monitoring system

Remote monitoring system

Fuel tank for daily use or base frame fuel tank

Other kinds of special equipment

Soundproof canopy

Mobile Diesel Generating Set

Container Generating Set

Power Station for refrigerated container generating set

Gantry Diesel Generating Set
