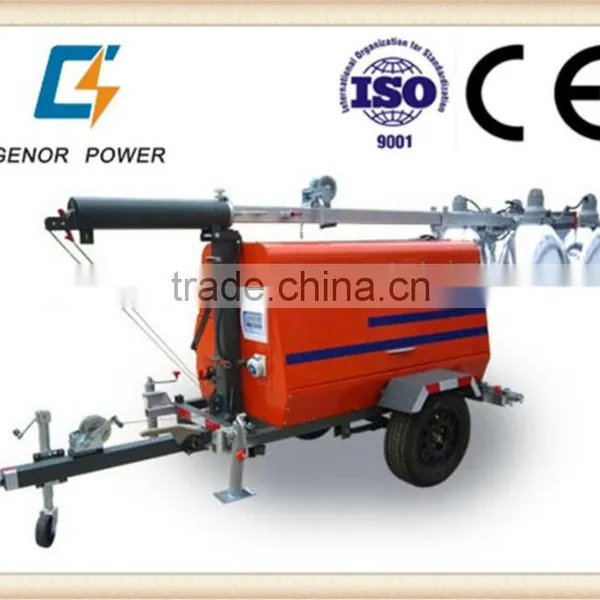

7kva to 30kva Trailer Mobile Generator Lighting Tower

Specifications

Trailer Mobile Generator Lighting Tower
1.World Diesel Generator
2.9m Mast with 4 Light Tower
3.Warranty 1year
4.CE

     7kva to 30kva Trailer Mobile Generator Lighting Tower

Parameters:

Model		GNRL5000	GNRL6000	GNRL20000
Mast & Lamp	Max. extension of mast	4.8m	9m	9m
	Stages	2	3	3
	Total power of lamps	4*400W	4*1000W	4*1000W
	Light capacity	4*250000 lumen	4*110000lumen	4*110000lumen
	Lifetime of lamp	2000 hours	5000 hours	5000 hours
Generator	Model	GNRD6500I	GNRK10	GNRP20
	Rated Power	50Hz  4.2kw	50Hz  6.0kw	50Hz  20kw
		60Hz  5.0kw	60Hz  8.0kw	60Hz  23kw
	Standby Power	50Hz  4.5kw	50Hz  7.0kw	50Hz  22kw
		60Hz  5.5kw	60Hz  9.0kw	60Hz  25kw
	Engine model	RP186FA	Kubota D1105-BG	Perkins 1003G
	Fuel tank capacity	16L	100L	120L
	Prime fuel consumption	≤1.65L/h	≤2.0L/h	≤5.25L/h
Trailer	Stabilizer Support	4*manual	5*manual	5*manual
	Tire Size	Diameter=25cm	Diameter=25cm	Diameter=25cm
	Anti-wind capacity	≤6	≤10	≤10
Dimension	Dimension(mm)	1300*840*2600	4400*1200*1930	4400*1450*2100
	Net Weight	350kg	870kg	1950kg



Engine Features:

1. World most famous brand diesel engine: Kubota/Yanmar/Perkins/Cummins

2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%



Soundproof/Slient Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and safety

6. 1m<80dB/7m<70dB



Control Panel:

1. Automatic control panel(AMF), LCD display

2. Four protection systems

3. Emergency stop



Optional:

1. Trailer type

2. Soundproof/water proof

3. ATS(automatic transfer switch)

4. Parallel system

5. Remote system
