AUTOMATIC CAPSULE FILLING MACHINE FOR CAPSULE ENCAPSULE

AUTOMATIC CAPSULE FILLING MACHINE FOR CAPSULE ENCAPSULE

Explains the features of NJP1200 capsule filling machine performance
Our factory is specialized in producing automatic capsule filling machine, and has a group of high-quality professional designers, to the current domestic similar models to improve the innovative design. It has the following characteristics and innovations compared with the existing domestic filling machine, with the supply and demand side in the choice of products to pay attention:

1 capsule vacuum positioning mechanism, so that the capsule on the machine rate of 99% or more.
2 choose increase cam box, change the current national similar products RU83 and RU83 dividing box configuration, become the only by supporting the use of RU100 and RU83 indexing box, although the increase in cost, but the stability and the service life of the machine is greatly improved (other manufacturers repeated dividing box breaking).
3 to improve the internal design of the mold, the use of Japanese linear bearings 90, to ensure the accuracy and service life of the equipment (and other manufacturers of the turntable is only 40 bearings, the other 50 are the use of copper, and wear fast, not easy to change).
4 increase the metering disc design, improving the measurement of disc powder flow is uniform, filling accurate dose, completely better than the national standard (metering disc increase 3 cm).
5 in the measurement of the flat surface as a benchmark, the use of three-dimensional adjustment mechanism, eliminating the metering plate, copper pad plate natural deformation, the gap is uniform, reducing the phenomenon of leakage, clean convenient, to ensure the difference, the same type of national original (patent number: 20042006795X)
6 due to the factory innovation design, increase the structure of the index box, and the use of the original bearing 90 mold bearing, measuring plate to increase the design, so the overall size of the same product more than 9 cm.
7 increase the design of capsule control switch. (outside the body control: safer, more convenient)
8 increase the point move control system, easy to produce and clean in the human operation.

9 increase in the setting, equipped with the two time of the indoor humidity of the desiccant device, to solve the filling workshop system, the effect of the desiccant and
the operation of the body of the body of the limit (optional).
10 increase of blowing mold cleaning structure, solve the mould cavity and plane internal production of viscous strong medicine dust deposition, the capsule is difficult to unplug the problem, greatly improving the rate of capsule (optional).

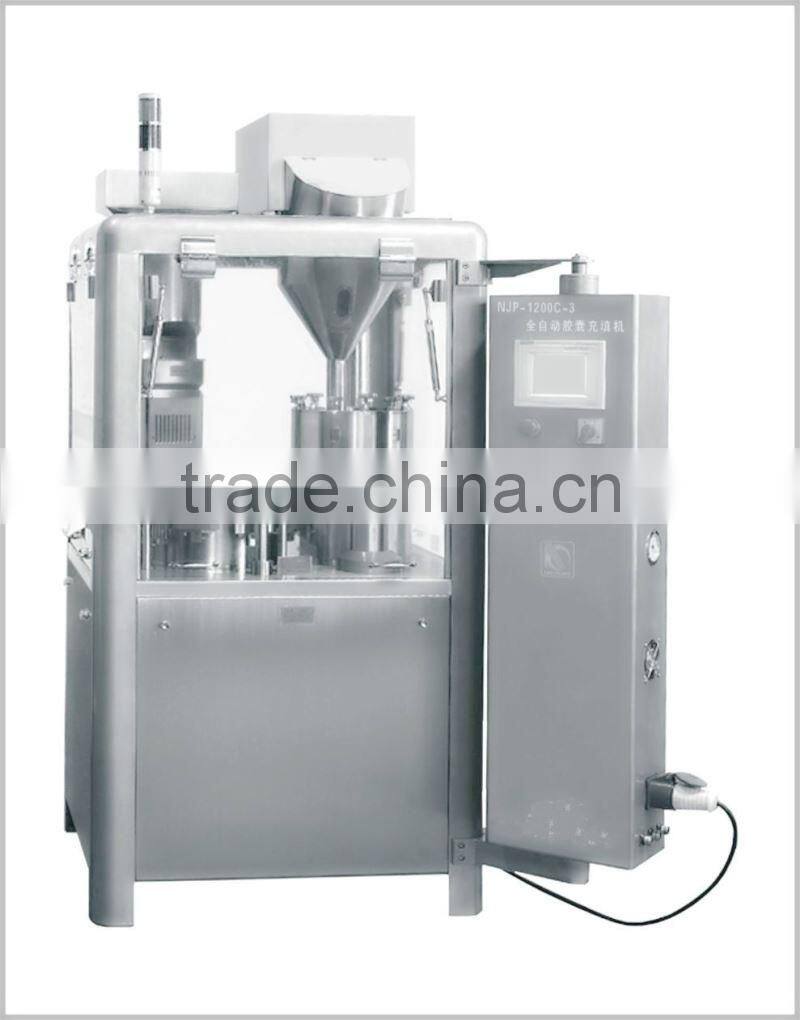

Product pictue:
