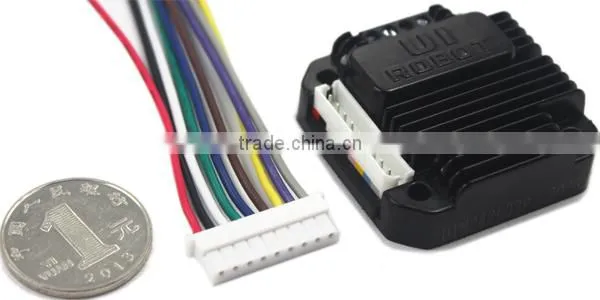

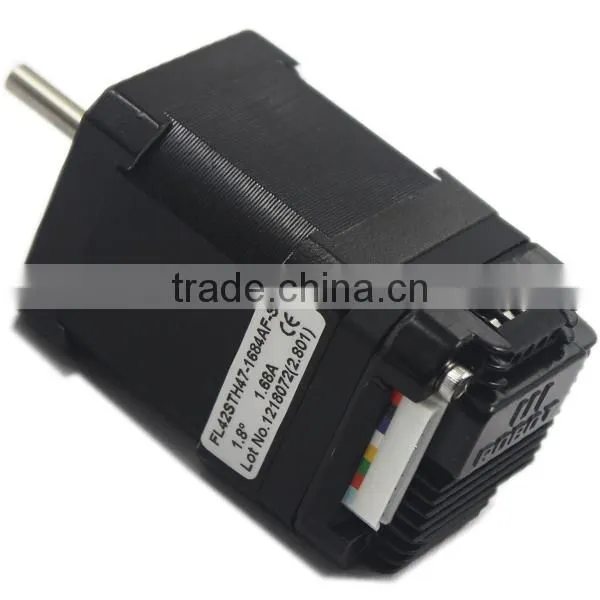

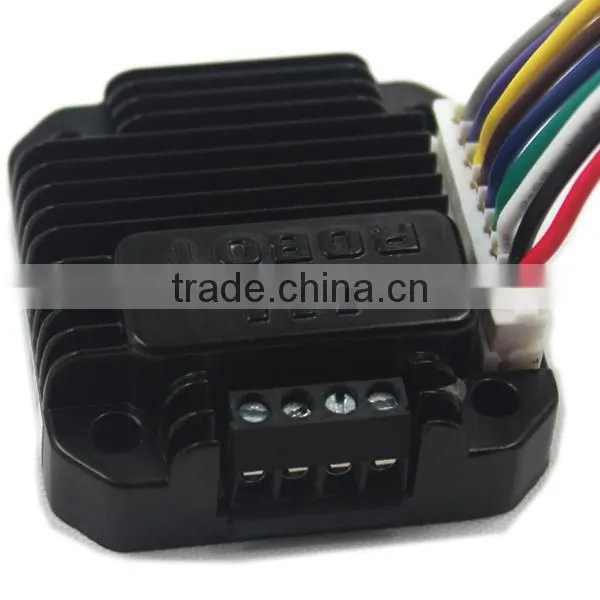

NEMA 11CAN bus Integrated Servo Stepper Motor

Environment Requirements

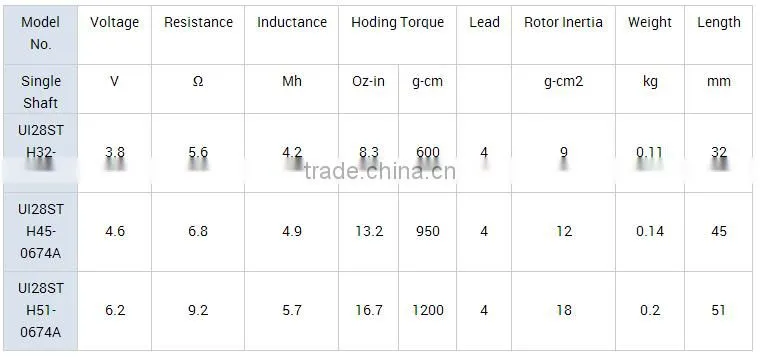

Technique parameter of NEMA 11CAN bus Integrated Servo Stepper Motor

Technique Specification of NEMA 11CAN bus Integrated Servo Stepper Motor

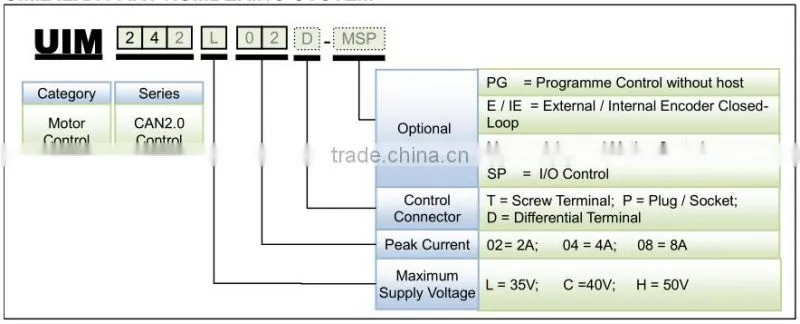

In order to serve you quicker and better, when you order UIM242 series CAN2.0B intergrated miniature stepper motor motion controller, please provide the product model number in following format.

Note:
1)  Peak current is decided by maximum supply voltage (Table 0-1).
2)  Default control connector is T (screw terminal) if not selected.

3)  -H product (Max. supply voltage is 50V) is custom made, please contact with salesmans before purchase.

4)  -D product (Differential Terminal) is custom made, please contact with salesmans before purchase.

5)  -PG (Programme Control without Host), need the hardware model be 1232 or higher.

Table 0-1 Correspondence between Max. Supply Voltage and Peak Current

Examples:
UIM242L02T, UIM242L02D, UIM242C04P-MSP, UIM242H08P-IE

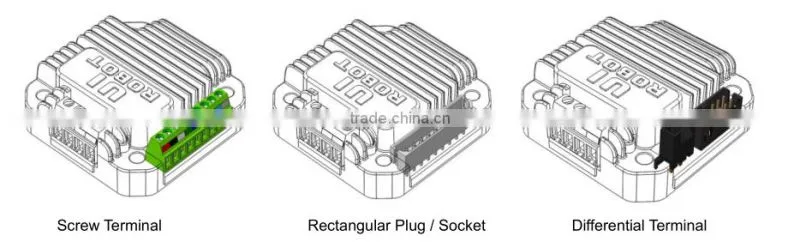

Examples of Control Connector options:

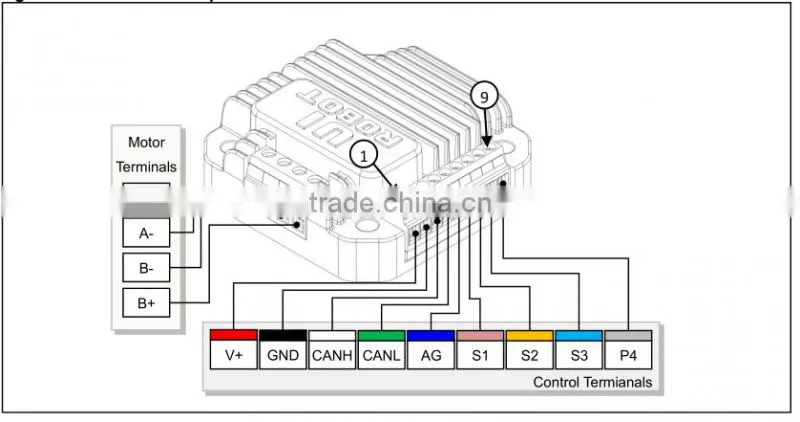

TERMINAL DESCRIPTION(-T/P):

Control Terminals

Note: *-H product (Max. supply voltage is 50V) is custom made, please contact with salesmans before purchase.

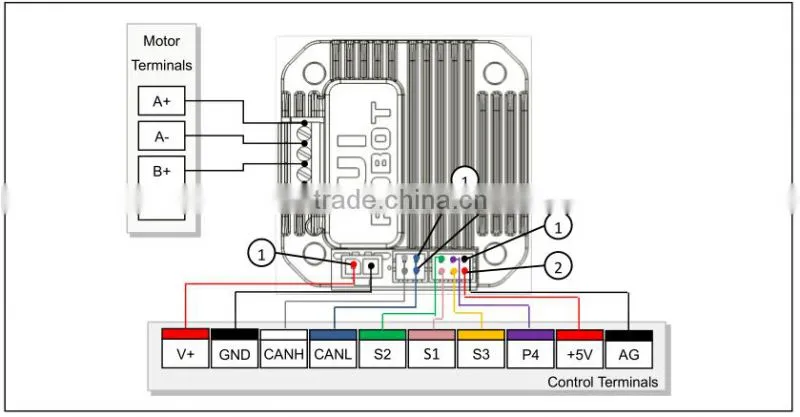

TERMINAL DESCRIPTION(-D):

Note: -D product (Differential Terminal) is custom made, please contact with salesmans before purchase.

Standalone Operation

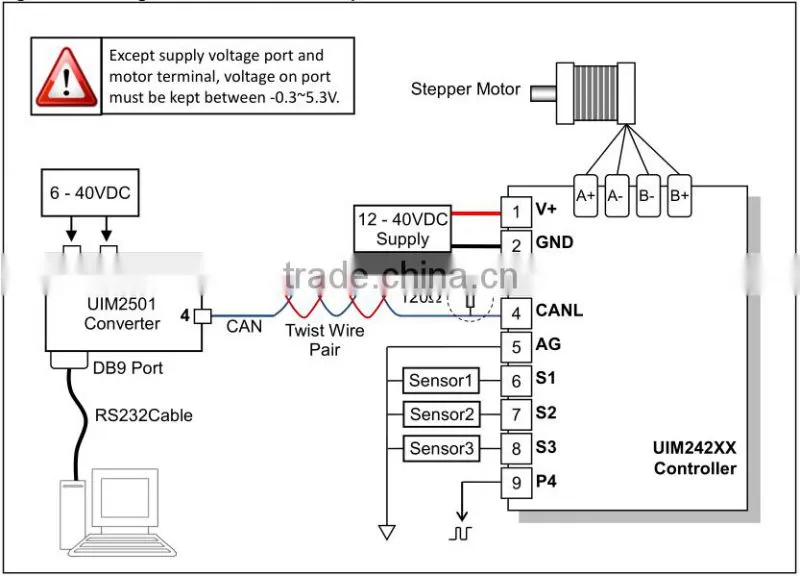

When working standalone, user can use the wiring scheme shown in figure 0-3.Please note that, this wiring scheme should be used for setting the ID of a UIM242 controller.

For long distance transfer, both ends of the CAN bus should be terminated with120Ω terminating resistors. As UIM2501 converter has a build-in terminating resistor, user only needs to attach a resistor at the other end of the bus. Please refer to the UIM2501 user manual for how to enable the UIM2501 converter’s terminating resistor. CANH and CANL should use a twisted wire pair.
