Air Shower Spray Nozzle for Clean Room

detailed spec:

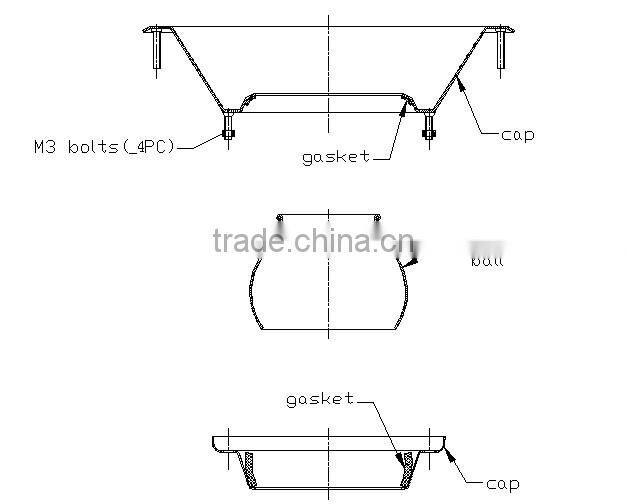

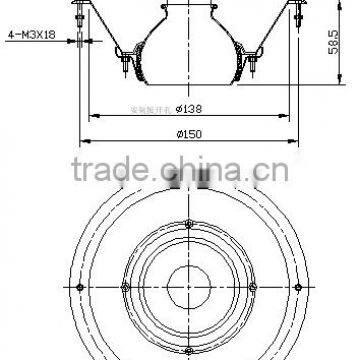

3366QHF cold air shower nozzle(adjustable) is consist of spray orifice, internal and external bellmouth and fixed flange, a gasket was installed between two bellmouths ,as per V=F/S rules, the S is small,the V will be large,so the dia of inlet and outlet is degressive design, in order to concentrate flow rate and improve the speed. We made them with metal ,ss310 also is available .

Dia of orifice:  40-50mm, 60-70mm,80-100mm

Orifice can be customized as per your requirement

Typical application:

1. dry with cold air
2. curing line with high temperature
3. air transmiting
