Hot Selling High Quality VOXLINK 4K HDMI splitter 1X2 (HDMI 1.4,HDCP1.4 ,4K,IR extension, EDID management, RS232) EUVOXLINK

INTRODUCTION

The 1x2 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/30Hz.

This product can support EDID management function, comes with seven kinds of EDID mode, the users can choose according to their own needs. In addition, it is with built-in IR extension function, it can work with our hdmi repeater which has IR-RX to receive the IR command to control the source.

FEATURES

<!--[if !supportLists]-->l <!--[endif]-->Support HDMI 1.4 ,HDCP1.4

<!--[if !supportLists]-->l <!--[endif]-->Support 3D video format

<!--[if !supportLists]-->l <!--[endif]-->Support high resolution up to 3840X2160/30HZ

<!--[if !supportLists]-->l <!--[endif]-->Support the max baud rate of 3.4G and TMDS clock can be up to 340 MHz

<!--[if !supportLists]-->l <!--[endif]-->Support8/10/12 bit deep color

<!--[if !supportLists]-->l <!--[endif]-->Support AWG26 HDMI standard cable, output up to 8 meters.

<!--[if !supportLists]-->l <!--[endif]-->Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

<!--[if !supportLists]-->l <!--[endif]-->Built-in IR extension function.( it can work with our hdmi repeater which has IR-RX to receive the IR command to remote control the source)

<!--[if !supportLists]-->l <!--[endif]-->Support serial port online upgrade

<!--[if !supportLists]-->l <!--[endif]-->Support EDID management

<!--[if !supportLists]-->l <!--[endif]-->5V/1A power adapter

Specifications:

HDMI version  ………………………………………………………………………………. HDMI 1.4

HDCP version  ……………………………………….……………………………………. HDCP 1.4

HDMI resolution ……………………………….. ……….. ………. …………up to 3840x2160/30Hz

Support video format ………………………………..…………………………8/10/12bit Deep color

Support audio format………………..………. …….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………………………………………………….340MHz

Max baud rate……………….…….………………….………………………………………..3.4Gbps

Input cable distance.…………………………………………≤8m AWG26 HDMI standard cable

Output cable distance………………………………………≤8m AWG26 HDMI standard cable

Max working current…………………………………………………………………………....500m A

Power adapter format………………….….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A

Operating Temperature range……………………………..…………….………………(-15 to +55℃)

Dimension (L x W x H)………………...............…………..……………………….154x60x24 (mm)

Weight…….…..………………………………………………………..…….……………………335g

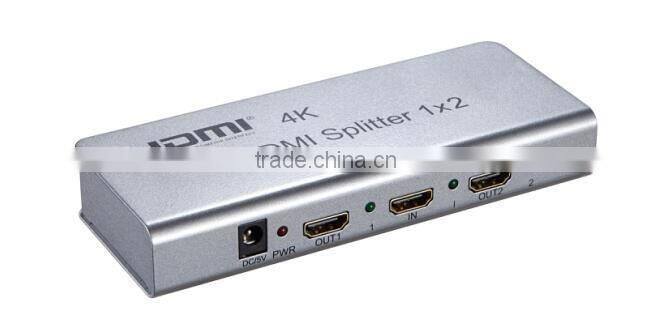

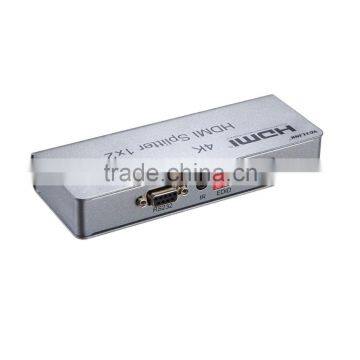

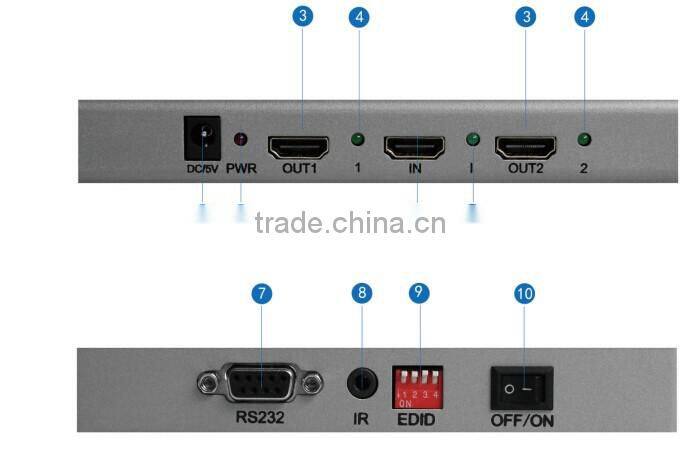

Product interface pictures

1:5V Power Interface

2:Power adapter indicator

3:HDMI output port

4:LED Output indicator

5:HDMI input port

6:LED Input Indicator

7:RS232 port ,serial port online upgrade

8:IR TX Extension Interface

9:DIP switch,using for EDID management

10:Power switch

DIP EDID Switch Description:

DIP 1   2   3   4
         X  0   0  0    :copy output1 EDID only
       X  0   0    1    :  EDID MIX
       X  0   1    0    :  4Kx2K (YUV420)

    X  1   0    0    :  4K 30Hz 5.1ch
          X  0   1    1    : 4KX2K  30Hz
          X  1   0    1    : 1080P 3D 2ch
          X  1   1    0    : 1080P 2D 2ch
          X  1   1    1    : 1080P 2D 5.1ch

1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)

Working Mode Description:

There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.

IR Extension description:

There is an IR TX Extension port, it can work with an optional HDMI  repeater which works as IR-RX and IR extended via HDMI cable

Output port:

Only output1 can support CEC function, output 2 support IR extension function.

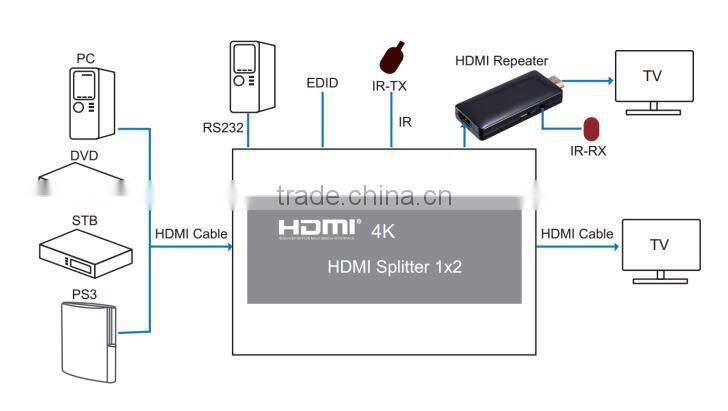

Connection and Operation:

1: connect the HD source to the splitter input with one hdmi cable

2: connect the splitter output to the diaplays with 2 hdmi cables

3: connect 5V/1A power adapter to the splitter

Package include :

1. HDMI splitter       x1pc

2. Power adapter      x1pc

3. User manual       x1pc

4. IR cable   x1pair

5. HDMI repeater (optional)
