CNC automatic rebar steel wire rod straightening and cutting machine
- 20 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A PayPal
- Hydraulic Steel wire straightening and cutting machine for round rebar, coiled bar, deformed rebar
- 6mm-16mm High Capacity automatic Wire straightening and cutting machine
- 4-12mm Automatic Wire Straightening and Cutting Machine manufacturer
- 2-5/6-12mm Automatic Straightening and Cutting Wire Machine
- Fully Automatic 4mm-16mm steel wire straighting and cutting machine
- Steel rod cutting machine,Wire Straightening and Cutting Machine
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | HTK-001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CNC automatic rebar steel wire rod straightening and cutting machine
Description of machine:
This machine mainly consists of tray bar rack, straightening rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances. This machine is applicable to straightening and cutting of all types of metal wire.

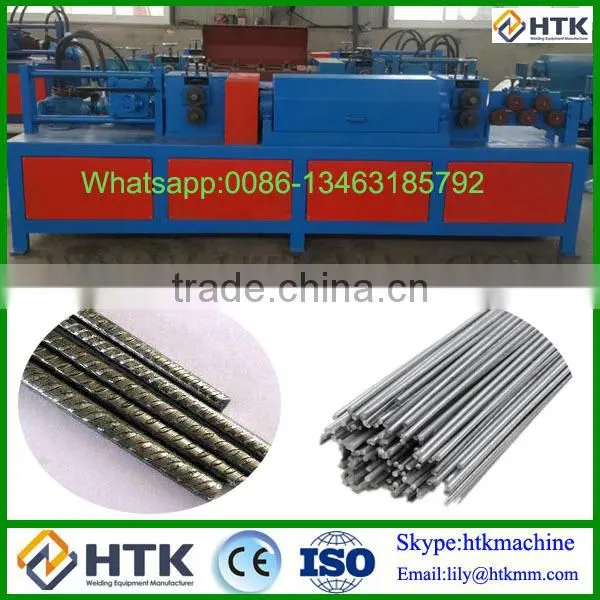

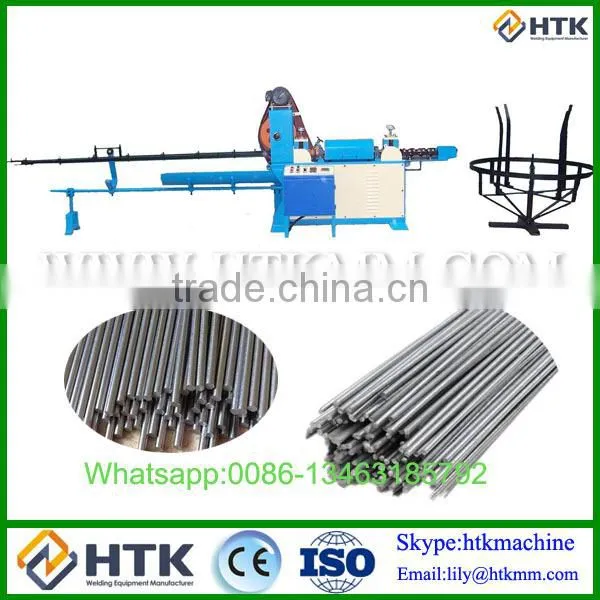

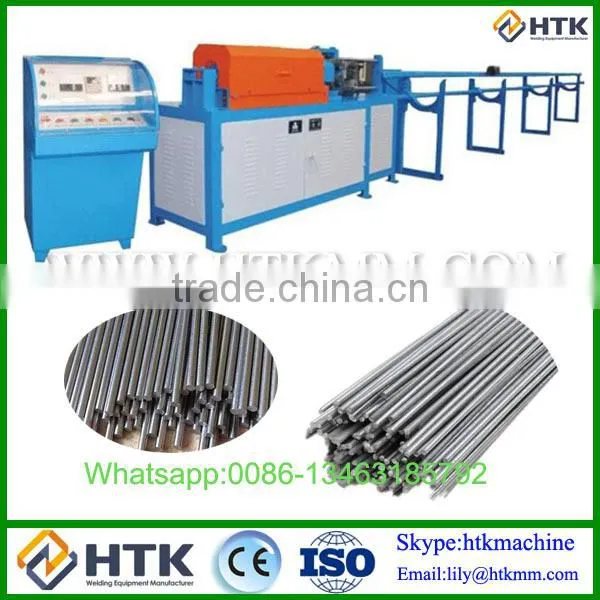

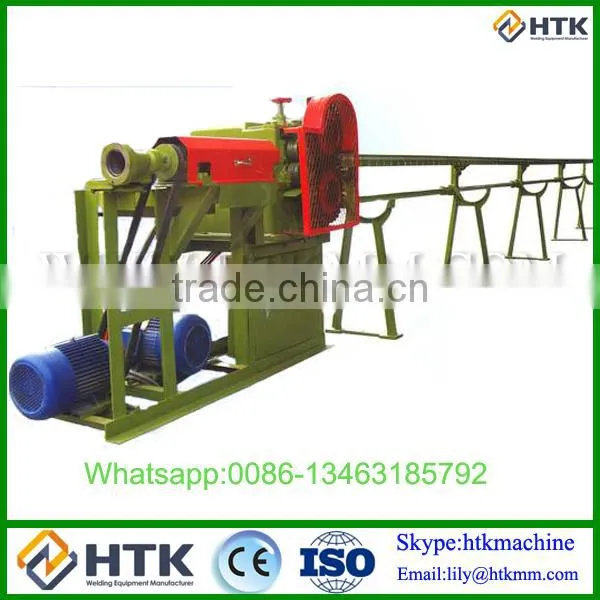

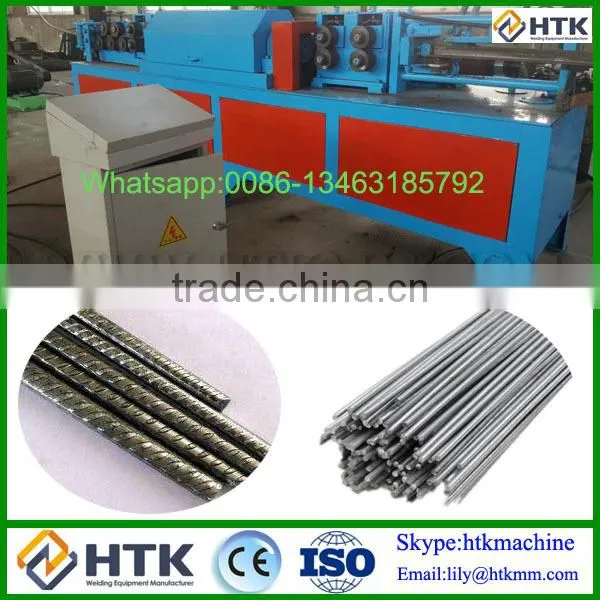

Picture of product
Technical Parameter
Model | SC1.5-3.5 | SC2-5 | SC4-8 | SC4-12 | SCHA5-12 | SCHB5-12 |
Dia. mm | 1.5-3.5 | 2-5 | 4-8 | 4-12 | 5-12 | 5-12 |
Cut Length mm | 30-2000 | 30-6000 | 200-6000 | 200-6000 | 700-12000 | 700-12000 |
Cut error mm | ±1 | ±1 | ±1 | ±1 | ±10 | ±10 |
Speed m/min | 25 | 30 | 35 | 30 | 45 | 45 |
Straight Motor kw | 1.5 | 1.5 | 4 | 7.5 | 11 | 11 |
Cutting Motor kw | 0.75 | 0.75 | 3 | 4 | 4 | 4 |
Overall Size M | 1.7×0.4×0.8 | 1.2×0.4×0.9 | 7.3×0.6×1.2 | 8×0.8×1.3 | 2.1×0.7×1.3 | 1.9×0.6×1.4 |
Weight KG | 130 | 150 | 650 | 1000 | 1200 | 900 |
Function of machine:
It is widely used for steel melting and welding net.
Features of machine:
The machine is high efficient, safe and stable. Besides it is automatic and simple and one person can operate multiple devices. So it reduces manpower and saves cost and improve efficiency.
After sale service:
- Engineer can install, test and adjust the machine for you
- 24 hours online after-sale service
- We will train workers for you
Our Factory:
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians, more than 100 employees
- Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market:South Africa, Mongolia, Asia, Dubai
Advantage of HTK factory:
- We have professional engineer supervision
- The price preferential benefit
- Product quality assurance
- High production efficiency
- With credibility and protection
- Can visit the factory in person
- Good after sales service
- Business model: Factory direct
