high quality and lower price Changlin wheel loader 937H
- 200 Unit / Units per Month
- shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
changlin wheeled loader hot sale 3T equipped with yuchai engine YC6B125
-
price CHANGLIN wheel loader zl30g/937H/936
-
3T Wheel Loader Changlin 936 model with 1.7m3 bucket
-
Best Quality 3T-5T Wheel Loader Changlin brand with new condition
-
changlin loader hot sale 3T equipped with Chinese yuchai engine YC6B125
-
Cheap sale Changlin 957H Wheel Loader with competitive price
Product Details
Condition | New | Brand Name | CHANGLIN | |
Model Number | 937H | Place of Origin | Jiangsu, China | |
Type | Front Loader | Moving Type | Wheel Loader | |
Dimension(Long * Breadth * High) | 7425*2305*3095MM | Rated Load | 3 T | |
Certification | ISO | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
one unit in one 40HQ container or RORO/Bulk Break
Product Description
high quality and lower price Changlin wheel loader 937H
1. Engine type: YC6B125 engine
2. Rated power: 92Kw
3. Bucket capacity: 1.7m3 .
4. Operating weight: 10200kgs
Changlin Wheel Loader | ||||
Model | Engine Model | Rated power | Standard bucket capacity | Operating weight |
ZL30H | Dongfeng | 87KW | 1.7m³ | 10200kg |
933 | Yuchai YC6B125-T20 | 92KW | 1.7m³ | 10200kg |
947H | Dongfeng | 128KW | 2.3m³ | 13200kg |
957H | Shangchai C6121 | 162KW | 3.0m³ | 16700kg |
967H | Shangchai | 177KW | 3.5m³ | 18600kg |
Parameter:
Overall Dimension | ||
1 | Length(with bucket on ground) | 7425(mm) |
2 | Width(to outside of wheels) | 2305(mm) |
3 | Bucket width | 2462(mm) |
4 | Height(To the top of the cab) | 3095(mm) |
5 | Wheel base | 2750(mm) |
6 | Tread | 1855(mm) |
7 | Min. ground clearance | 370(mm) |
Main Technical Specification | ||
1 | Rated load | 3000(Kg) |
2 | Operating weight | 10200KG |
3 | Rated bucket capacity | 1.7(m3) |
4 | Max. breakout force | 96kN |
5 | Max. dump clearance | 2850(mm) |
6 | Dump reach | 1030(mm) |
7 | Dump angle at any position | ≥450 |
8 | Min. turning radius | |
| (1) Outside of bucket | 5600(mm) |
(2) Outside of rear wheel | 5205(mm) | |
9 | Pivot angle frame | 38+10 |
10 | Oscillating angle of rear axle | +11o |
11 | Lifting time of bucket | ≤5.1(sec.) |
12 | Lowering time of bucket | ≤3.0(sec.) |
13 | Dumping time | ≤1.1(sec.) |
14 | Traveling speed(Km/h),3 forward and 3 reverse | |
| (1) 1st gear forward | 7.3 |
(2) 2nd gear forward | 15.7 | |
(3) 3rd gear forward | 35 | |
(1) 1st gear reverse | 7.8 | |
(2) 2nd gear reverse | 16.8 | |
(3) 3rd gear reverse | 36 |

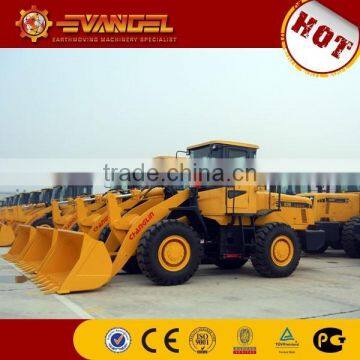

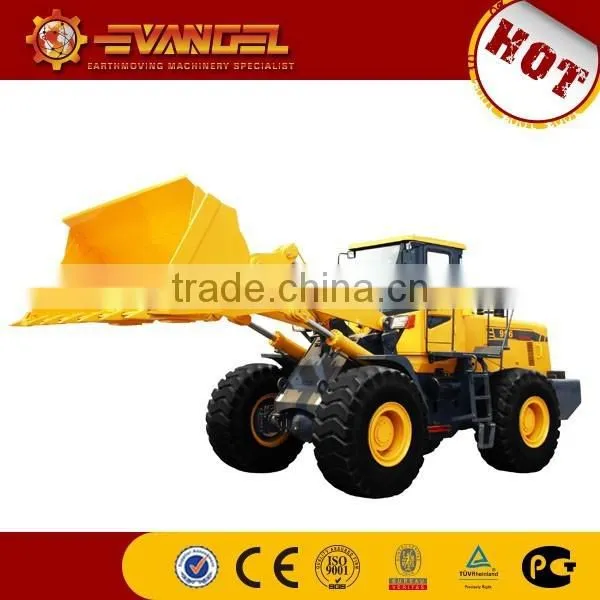

Photos:
Feature:
1). Best Matched Drive System
Adopted ShangChai SC11CB220G2B1 engine that features power reservation ,low consumption and good power performance.
2). Advanced &Reliable Brake System
Axle Housing and hub reduction adopted separate structue that features low maintenance cost.
Dual piping service brake with caliper disc brake ensure safety and reliability.
3).High Efficiency Hydraulic System
Advanced radiation system of hydraulic system is adpoted for working under high ambient temperature.
Hydraulic tank with vacuum device ensures easy maintenance and fixing of hydraulic system.
Convenient maintenance
The independent chamber design of the hydraulic oil tank return circuit guarantees the conveninence of the maintenance.
The hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
The classic dead axle transmission features maturity, stability, and easy maintenance. The parts are easy to replace.
Comfortable operation
The cab features luxury decoration, large space and excellent visibitity.
The adjustable seat features comfortability and elegance.
Key breakthrough in the leading level of the industry.
Starting the vehicle manufacturing technology first in China; including metal cover part and electrophoretic coating, and featuring high residual value.
