Low Price High Quality HBXG SD6G Bulldozer For Sale

Specifications

High quality.
Competitive price.
Professional service
Quick delivery and small order is allowed

HBXG Bulldozer SD6G

Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service.







Features— HBXG Bulldozer SD6G



SD6G bulldozer is 160 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic controls. It is equipped with Shangchai C6121 diesel engine manufactured. The engine has the characteristics of big torque reserve coefficient and capacity against over-load. The torque converter is a hydro-mechanical converter whose power is divided outside, which has the characteristics of wide high efficiency range. Steering and braking can be controlled with the same control lever. Braking system utilizes hydraulic boosting structure, which is convenient and labor-saving. The final drive gear has the characteristics of large displacement coefficient value. This kind of design raises bearing capacity and prolongs the useful time. The final drive also utilizes the structure that its bearing clearance is free of adjustment, which is convenient for service. The equalizer bar utilizes free lubricating structure to decrease service cost. There are optional equipments like 3 shanks ripper, U-blade and so on.



Parameter— HBXG Bulldozer SD6G

Blade	Straight and tilting
Ground pressure:(kpa)	55.23
Min. ground clearance:(mm)	445
Dozing capacity:(m3)	4.5
Max. digging depth:(mm)	592
Operation weight:(kg)	16500(without ripper)
Track gauge:(mm)	1880
Gradient:	30°/25°
Blade width:(mm)	3297
Overall dimensions:(L×W×H)(mm)	5037×3297×3077

  Undercarriage System

Type:	Swing type of sprayed beam, suspended structure of equalizer bar.
Number of track rollers(each side)	7
Number of carrier rollers(each side)	2
Pitch (mm)	203
Width of shoe (mm)	560

Gear

	1st	2nd	3rd
Forward (Km/h)	0-4.00	0-6.90	0-10.80
Backward (Km/h)	0-4.80	0-8.40	0-12.90

  Engine

Engine Name	Shangchai C6121ZG55
Rated revolution:(rpm)	1900
Flywheel power (KW)	119
Max. torque:(N.m/rpm):	770/1400
Rated fuel consumption:(g/kw.h)	≤215

  Implement Hydraulic System

Max. system pressure (MPa):	15.5
System output(L/min)	178
Pump type:	Gears pump

  Driving System

Torque converter:	Outside separating combination.
Transmission:	Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch:	Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.
Braking clutch:	Brake is oil two direction floating band brake operated by mechanical foot pedal.
Final drive:	The final drive are double reduction with spur gear and   segment sprocket.

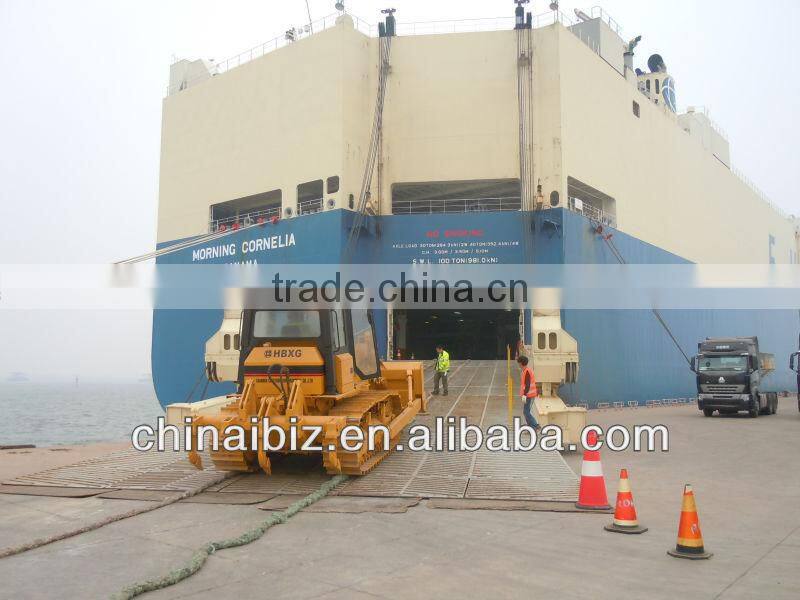

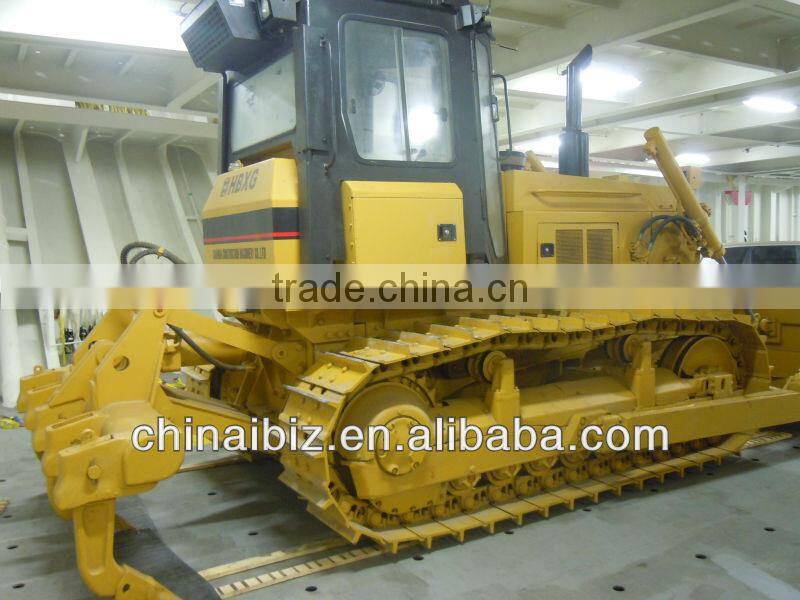

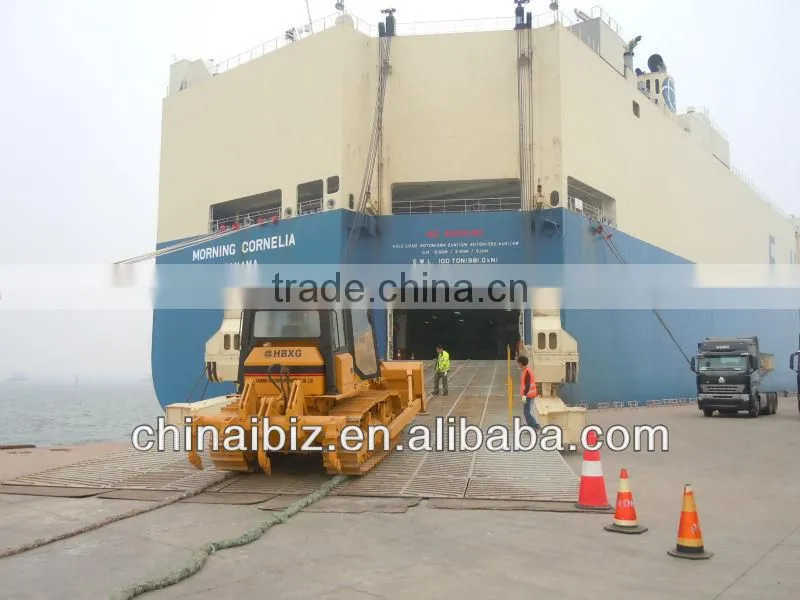

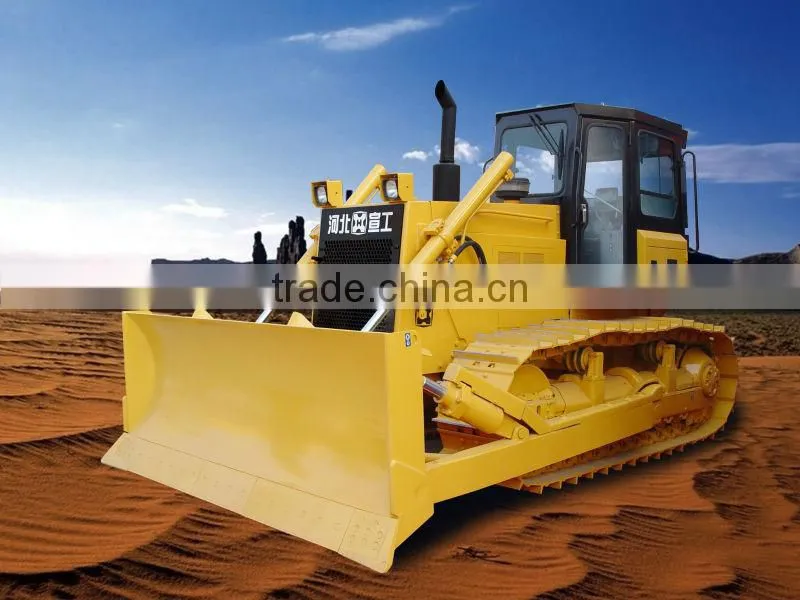

Photos— HBXG Bulldozer SD6G
