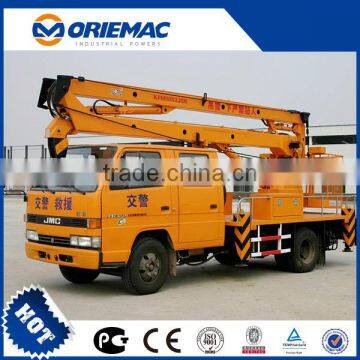

N. traffic 14M movable work platform KFM5052JGK
- 5000 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
N. traffic 14M battery powered platform trucks KFM5052JGK
-
N. traffic 14M vehicle mounted aerial work platform KFM5052JGK
-
N. traffic 24m telescope lift platform (ZS24)
-
N. traffic 24m telescopic boom work platform (ZS24)
-
N. traffic 24m small telescopic aerial work platform (ZS24)
-
N. traffic 24m telescopic work platform (ZS24)
Product Details
| Place of Origin | Liaoning, China | Brand Name | N.Traffic | |
| Model Number | KFM5052JGK |
Product Description
Specifications
N. traffic 14M movable work platformself-propelled work platform
movable work platform
movable scaffolding platform
N. traffic 14M hydraulic work platforms KFM5052JGK
KFM5052JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on..
Bulletin No. | KFM5052JGK | |
Type | GKZ-14J | |
External dimensions(mm) | 6320×2000×2920 | |
Structure type | Three-section articulated boom | |
Working Cage | Internal size(mm) | 1100×600×1100 |
Rated loading(kg) | 200(or 2 persons) | |
Max. Working height(mm) | 14000 | |
Max. Height from ground(mm) | 12300 | |
Max. Working radius(mm) | 7050 | |
Working radius when doing the highest height(mm) | 2990 | |
Chassis Introduction
Traveling Performance Parameters | Chassis model | JX1060TSG23 JMC JX1060TSG23 |
Persons | 2+3 | |
Axle base (mm) | 3360 | |
Wheel base (front/rear)(mm) | 1385/1425 | |
Driving mode | 4×2 | |
Front suspension(mm) | 1015 | |
Rear suspension(mm) | 1815 | |
Approaching angle(º) | 27 | |
Departure angle(º) | 11 | |
Max. Grade ability(%) | 28 | |
Min. Turning diameter(mm) | 13600 | |
Min. Ground clearance(mm) | 190 | |
Engine | Engine model | JX493ZLQ3 |
Rated power(kw/r/min) | 85/3600 | |
Torque(N,m/r/min) | 285/2000 | |
Max. Speed(km/h) | 70 | |
Gas consumption per one hundred miles(diesel oil) (L) | 12 | |
