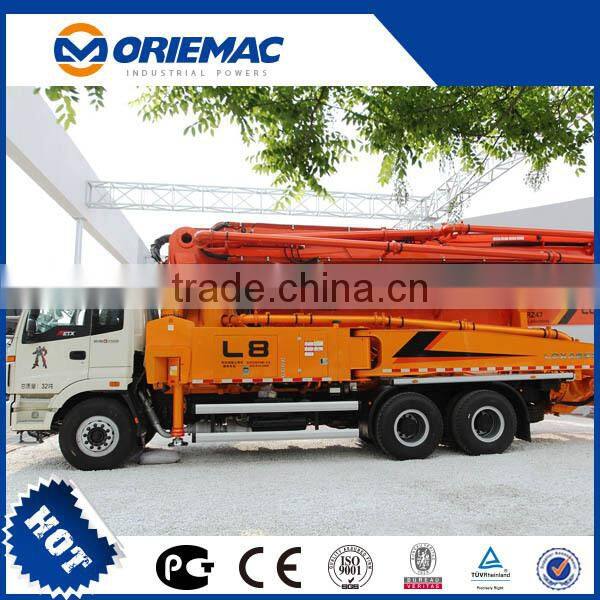

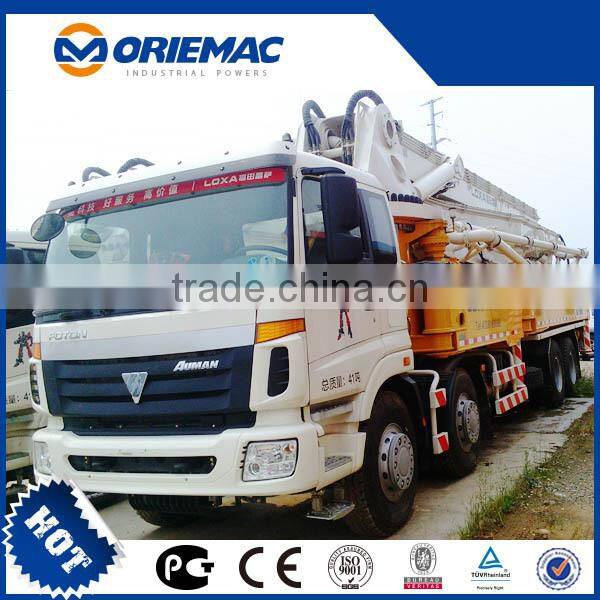

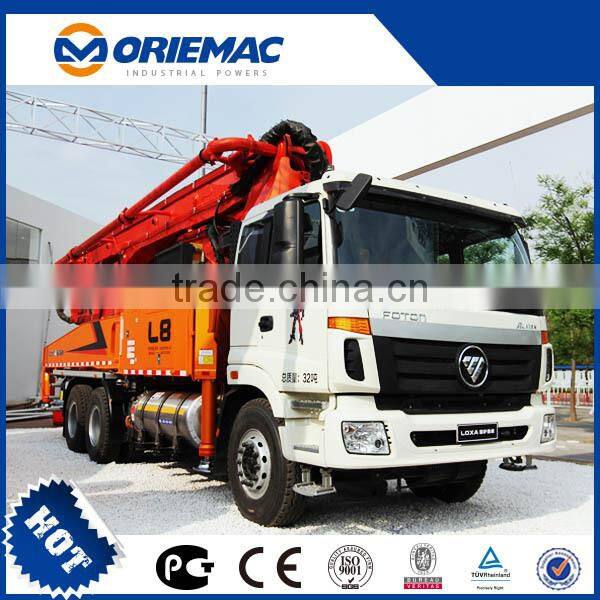

Foton 8x4 concrete mixer with pump

Name: Foton 8x4 concrete mixer with pump
Brand: Foton
Availability: InStock

FOB Price

USD $150,000 - $600,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Diesel
Place of Origin	Beijing, China	Brand Name	Foton
Model Number	Foton	Power(W)	385
Weight	25000	Dimension(LWH)	11.52.53.8m
Certification	ISO	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Foton 8x4 concrete mixer with pump

Model: BJ5410THB-1

Engine model: ISM38530

SPECIFICATION
FOTON Concrete PUMP Truck BJ5410THB-1
INFORMATINO
Model	BJ5410THB-1
Type	Concrete PUMP Truck
Wheel Base	2100+4300+1350mm
Engine Infos
Engine Model	ISM38530
Fuel	Diesel
Displacement	10.8L
Max. Output	385 KW
Transmission
Gear Box	Fast 9 gear
Forward Gear	12
Reverse Gear	2
Basic Infos
Pumping Capacity	170m³/h
Max. Pumping Height	52(m)
Total Weight	52(m)
Dimension	11.5×2.5×3.8(m)
Pumping Systerm
Pumping Capacity(High/Low Pressure)	Pumping Systerm
Pumping Pressure(Low/High)	18/24
Conveying cylinder: bore * stroke	260/2100mm
Oli Pressure	32Mpa
Conveying Pipe Diameter	125mm
Arm/Leg
Arm Vertical Height	52(m)
Arm Horizontal Length	47.5(m)
Min.Developed Length	4(m)
Arm Section	6
First Section: Length	1053mm
First Section: Angle	90(°)
Second Section: Length	9000mm
Second Section: Angle	180(°)
Third Section: Length	8700mm
Third Section: Angle	180(°)
Fourth Section: Length	9860mm
Fourth Section: Angle	240(°)
Fifth Section: Length	5455mm
Fifth Section: Angle	225(°)
Sixth Section: Length	4669mm
Sixth Section: Angle	90(°)
Turntable rotation angle	365(°)
Leg Developed Width: Front/Gear	10606mm
