Home > Products > Diesel Forklift Truck > 16T lift truck forklift with CE certificate

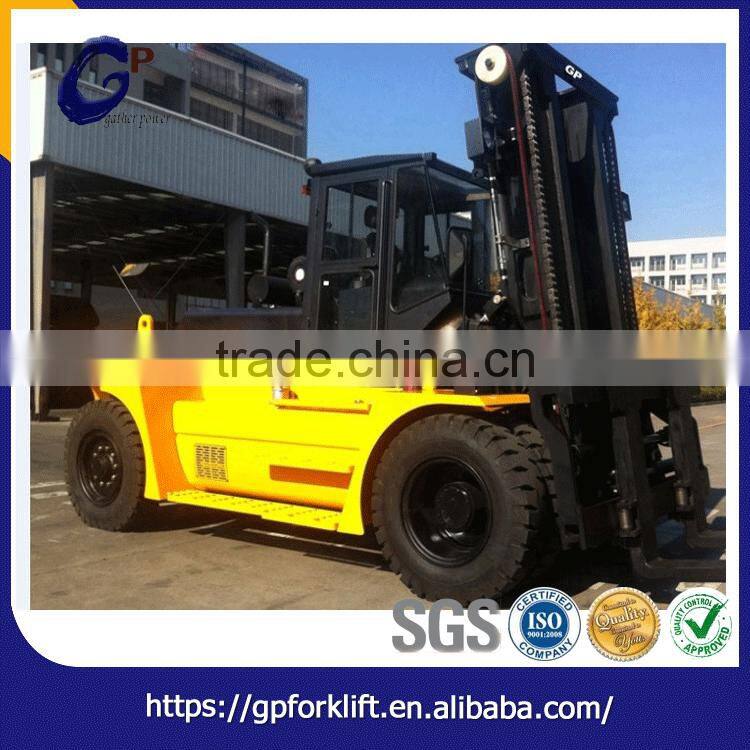

16T lift truck forklift with CE certificate
- 10 Set / Sets per Month
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Place of Origin | Shanghai, China | |
Brand Name | GP | Model Number | CPCD160 | |
Type | Other | Power Souce | Diesel Engine | |
Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Balance weight type diesel forklift, large volume, and stable performance, suitable for heavy use, no time limit, the use of the site is generally in the outdoor, dynamic performance of diesel engine is better, when the speed is low easy flameout, the fuel cost is very low. Balance weight gasoline forklift, the volume is relatively large, but the stability is relatively good, suitable for heavy load, the use of time is not limited, generally in the outdoor use. description
General |
| Manufacturer |
| GP | |||||
1 | Model |
| CPCD20 | CPCD25 | CPCD30 | CPCD35 | |||
2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |||
3 | Load center | mm | 500 | ||||||
4 | Gearbox change speed type |
| Hydraulic/Mechanical | ||||||
5 | Power type |
| Diesel | ||||||
6 | Tire type | Front/ Rear |
| Pneumatic | |||||
7 | Wheels | Front/ Rear |
| 2/2 | |||||
Dimensions | 8 | Lift height | mm | 3000 | |||||
9 | Free lift height | mm | 140 | 145 | |||||
10 | Fork size | L*W*T | mm | 1070x120x40 | 1070x120x45 | 1070x125x45 | 1070x130x45 | ||
11 | Mast tilt angle | Fwd/Bwd | deg | 6/12 | |||||
12 | Overall length (without fork) | mm | 2510 | 2580 | 2720 | 2775 | |||
13 | Overall width | mm | 1150 | 1225 | |||||
14 | Mast height fork lowered | mm | 2050 | 2080 | 2230 | ||||
15 | Overall height fork raised | mm | 4040 | 4272 | |||||
16 | Overall height (overhead guard) | mm | 2060 | 2090 | |||||
17 | Turning radius (outside) | mm | 2170 | 2240 | 2460 | 2540 | |||
18 | Load distance (centerline of front axle to front face of forks) | mm | 484 | 489 | 494 | 500 | |||
19 | Travel speed (full load /no load ) | (Hydraulic) | km/h | 17/19 | 18/19 | ||||
20 |
| Mechanical) | shift 1 | km/h | 8.5/9 | 8.8/9 | |||
21 |
|
| shift 2 | km/h | 18.5/19 | 18.5/20 | |||
22 | Wheel base | mm | 1650 | 1700 | |||||
23 | Tread | Front | mm | 970 | 1000 | ||||
24 |
| Rear | mm | 970 | |||||
25 | Min. Under-clearance (full load / no load ) | Bottom of mast | mm | 85/105 | 110/135 | ||||
26 |
| Bottom of frame | mm | 115/120 | 135/140 | ||||
Performance | 27 | Speed | Travel speed | With load | km/h | 17 | 18 | ||
28 |
|
| Without load | km/h | 19.5 | 19.5 | |||
29 |
| Lifting speed | With load | mm/sec | 470 | 430 | 400 | ||
30 |
|
| Without load | mm/sec | 600 | 500 | 450 | ||
31 | Max. Drawbar pull | With/ without load | kg | 1250/850 | 1250/850 | 1100/1000 | 1304/1190 | ||
32 |
|
|
| 1650/850 | 1650/850 | 1350/1000 | 1696/1190 | ||
33 | Max.Gradeability | With/ without load | % (fan) | 20/20 | 17/18 | 15/18 | 15/18 | ||
|
|
|
| 21/22 | 18/19 | 19/20 | 15/18 | ||
34 | Max.Gradeability |
| % | 20 | 15 | ||||
Weight | 35 | Self weight | kg | 3550 | 3880 | 4380 | 4750 | ||
36 | Weight distribution | With load | Front | kg | 4730 | 5480 | 6455 | 7320 | |
37 |
|
| Rear | kg | 590 | 700 | 825 | 930 | |
38 |
| Without load | Front | kg | 1520 | 1465 | 1720 | 2040 | |
39 |
|
| Rear | kg | 1800 | 2215 | 2560 | 2710 | |
Tyre | 40 | Tyre | Size | Front |
| 7.00-12-12PR | 28x9-12-12PR | 28x9-15-14PR | |
41 |
|
| Rear |
| 6.00-9-10PR | 6.50-10-10PR | |||
Brake | 42 | Brake | Service |
| Hydraulic-Foot pedal | ||||
43 |
| Parking |
| Mechanical-Hand lever | |||||
Transmission | 44 | Battery | Voltage /Capacity | V/AH | 12/100 | ||||
45 | Internal combustion engine | Model for option |
| 1. XINCHANG ; 2. ISUZU ;3. YANMAR; 4. DEUTZ | |||||
46 | Transmission | Type |
| Hydraulic/Mechanical | |||||
47 |
| shift (Fwd/Rvs) |
| 1/1 (2/2) | |||||
| 48 | Work pressure | Mpa | 17.5 |
Company Introduction
Shanghai Gather Power Industry Co.,Ltd (shanghai gather power), was registered in 2006 in Shanghai, China, a major industrial logistics equipment manufacturer and supplier of professional products, the main production and operation of three series of products: 1 t -2.5 t full electric stacker, 1 t -3 t full electric pallet trucks, 1 t -2.5 t Reach forklift and other electric storage equipment; 6 meters - 30 meters series of aerial work platforms; 25 tons -45 tons of container crane and so on.
Company has three bases: Shanghai Fengxian production base; Pudong Zone International Trade Company; Lu'an production base - Anhui Vmax Machinery Co., Ltd.
After nearly seven years of continuous development, the company has entered a rapid healthy development. The company has a total of over 40,000 square meters of production space, with a large number of such large-scale CNC flame plasma cutting machine, high-precision machining centers, CNC milling machine, large hydraulic machines, systems integrated coating equipment, as well as the international advanced assembly products performance test line, precision testing equipment, vehicle testing facilities to strengthen inspection and testing systems, which are fully guaranteed product standards and quality.
Company has been adhering to the "green technology as the driving force, continue to create value for customers," business philosophy, the company has been a steady stream of products exported to Germany, France, Spain, USA, Brazil, Chile, Saudi Arabia, South Africa, Australia and other world more than 70 countries and more than 20 domestic provinces, the current good performance of the company's sales and 30% per year rate of rapid growth. Peng on sea-based clients all over the world, such as the U.S. General Motors, Volkswagen, France, Lafarge, Shell Petroleum, China Petrochemical, Carrefour supermarket, Sharp Electronics, China COSCO, Maersk Logistics and many other Fortune 500 companies.
The company attaches great importance to new product development, has a group of dedicated, experienced and dynamic professional R & D team, according to the law of development of the industry can continue to introduce and improve the market needs new products to meet customers' actual needs. The company has passed ISO9000 , CE, SGS, UL and a series of international quality management system certification. The company has a sound service system, customer interests, to long-term cooperation with customers for the purpose of agencies around the world have established a good strategic and cooperative relations, and fully guarantee our products fast market expansion.
