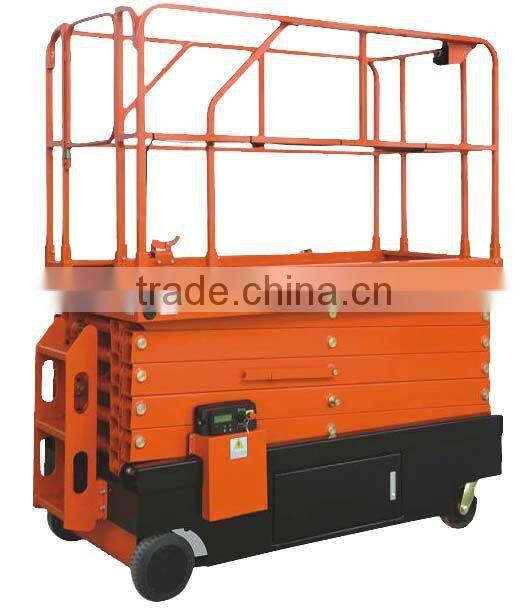

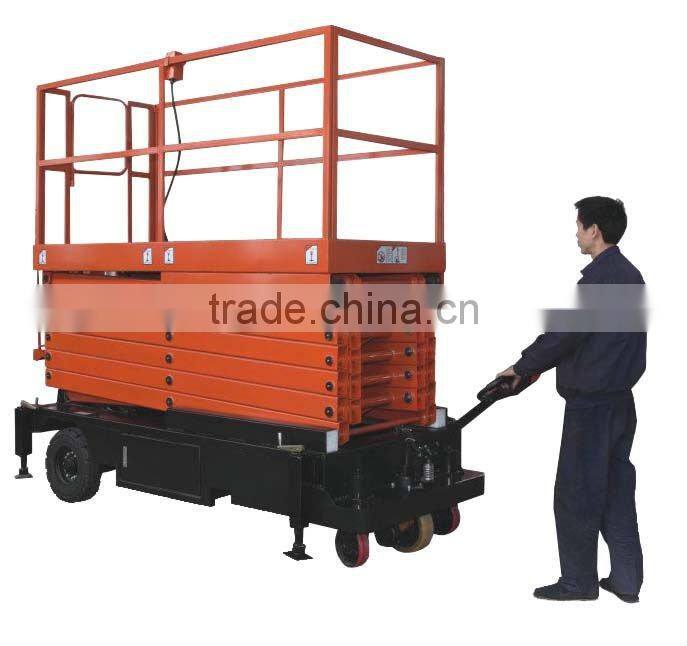

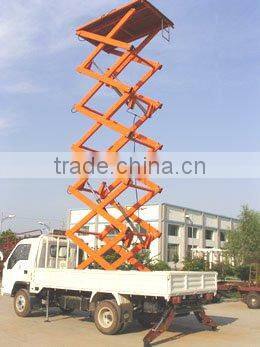

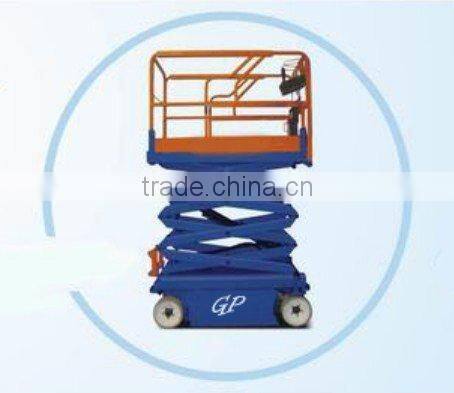

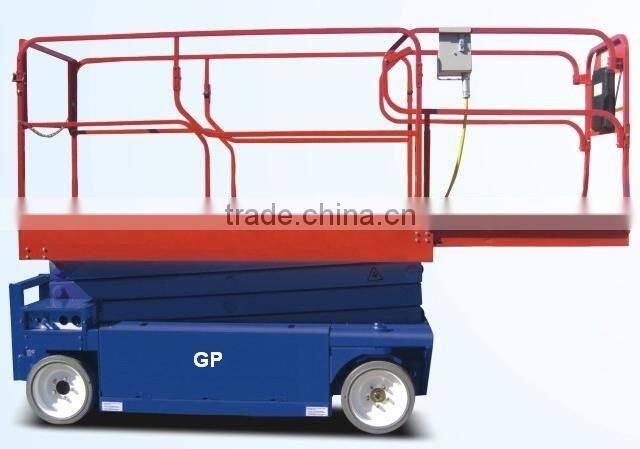

scissor lift design with Max platform height 11 meters
Advantages:
1. Low noise to operate in quite work
2. Steady moving, efficient energy saving
3. Excellent maneuverability
4. Utilize work space effectively
5. Easy access to battery box and power module
6. Maximize durability, efficient security protection
7. Smooth deceleration ans accurate positioning
8. Maintenance free
Specification:
Model | UNIT | GTJZ06 | GTJZ07 | |
Max platform height | mm | 6000 | 7400 | |
Max machine height | 7100 | 8500 | ||
Min platform height | 918 | 1020 | ||
Ground clearance | 80 | |||
Lift rated capacity | kg | 300 | 250 | |
Platform extend capacity | 100 | 80 | ||
Platform size | mm | 1870*760*1230 | ||
Platform length extended | 900 | |||
Max drive speed(Platform stowed) | Km/h | 3-4 | ||
Max drive speed(Platform elevated) | 0.6-1 | |||
Min turning radius | mm | 1900 | ||
Max travel grade | % | 10-15 | ||
Caster size | mm | 8 | ||
Driving motor | V/kw | 2*24/0.4-0.5 | ||
Lifting motor | 24/3 | |||
Aneroid battery | V/Ah | 2*12/120 | ||
Charger | V/A | 24/12 | ||
Pothote Protection System | N/A | Auto Mechanism | ||
Overall length | mm | 1870 | ||
Overall width | 900 | |||
Overall height | 2018 | 2120 | ||
Overall weight | 1200 | 1290 | |
Pictures:
