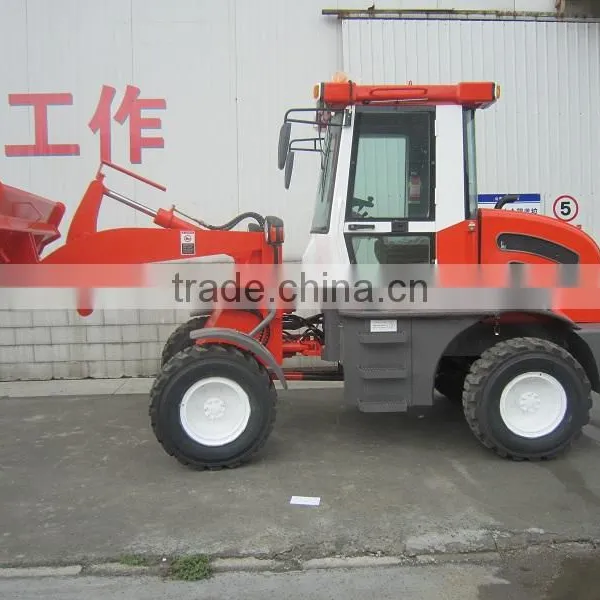

1800kg wheel loader in China with Komatsu technology

Item

Parameters

Performance

1 .Rated Load

1800 kg

2. Total Weight

4100 kg

3. Rated Bucket Capacity

0.85 m³

4. Max. Tractive Force

40 KN

5. Max. Breakout Force

≥ 43 KN

6. Max. Gradeability

38°

7. Dumping Height

2800 mm/3100mm

8. Dumping Reach

1050mm/1000 mm

9. Raising Time

≤ 5.0 s

10. Total Cycle Time

≤ 9.5 s

11. Overall Dimensions (L x W x H)

5300*1820*2760 mm/6500*1820*2800

12. Min. Turning Radius

3200 mm

Engine

13. Model

WEICHAIHUAFENG4102

14. Type

Four-cylinder, Inline, Water-cooled, Four-stroke Engine

15. Rated Power

47 kw

16. Rated Speed

2400 rpm

17. Min. Fuel Consumption Ratio

≤ 258.4 g/kw·h

Transmission

18. Hydraulic Torque Converter

ZL265 Integrated/Split Torque Converter

19. Gear Shift

1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

20. Max. Speed

25 km/h

Drive Axle

21. Model of Axle

ZL16 Hub Reduction Axle (small)

22. Wheel Tread

1480 mm

23. Wheel Base

2150 mm/2260mm

Drive

24. Mode

4-wheel Drive

Hydraulic System

25. System Working Pressure

20 Pa

26. Fuel Tank Capacity

90 L

Brake System

27. Service Brake

Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

28. Parking Brake

Flexible Shaft Controlled Disc Brake

Tyre

29. Type Specification

20.5/70-16

30. Front Tyre Pressure

0.40 Mpa

31. Rear Tyre Pressure

0.35 Mpa
