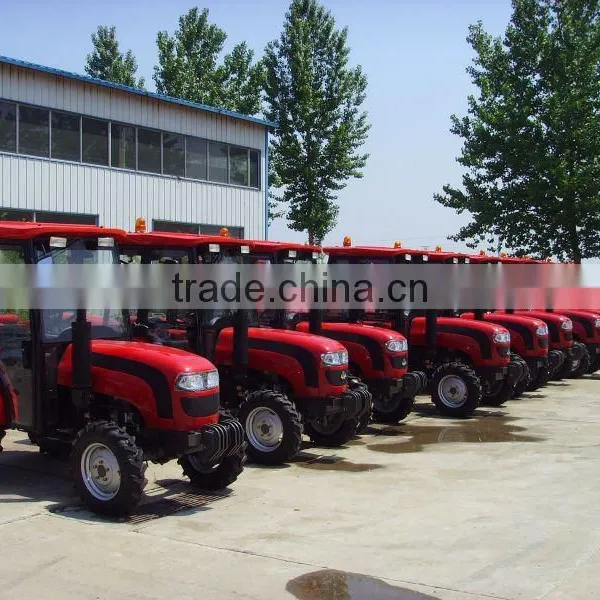

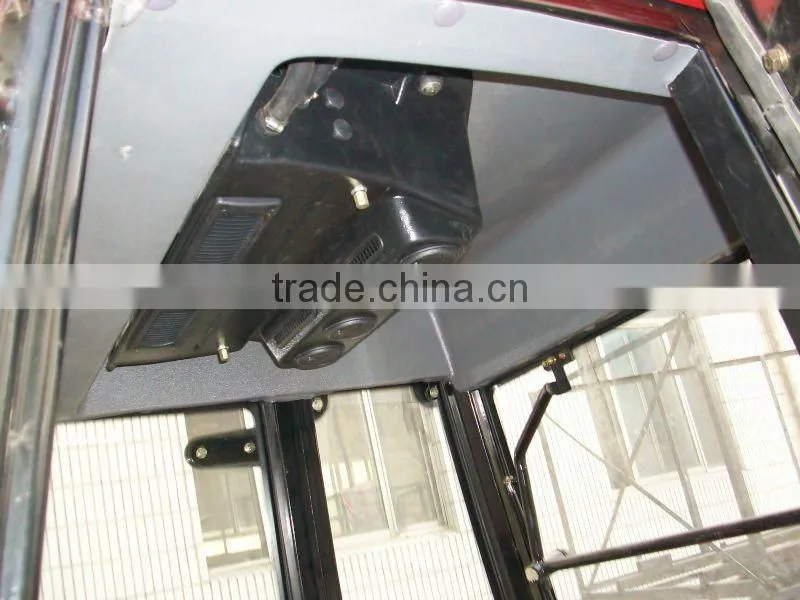

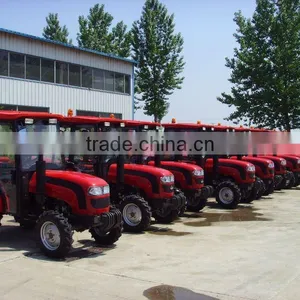

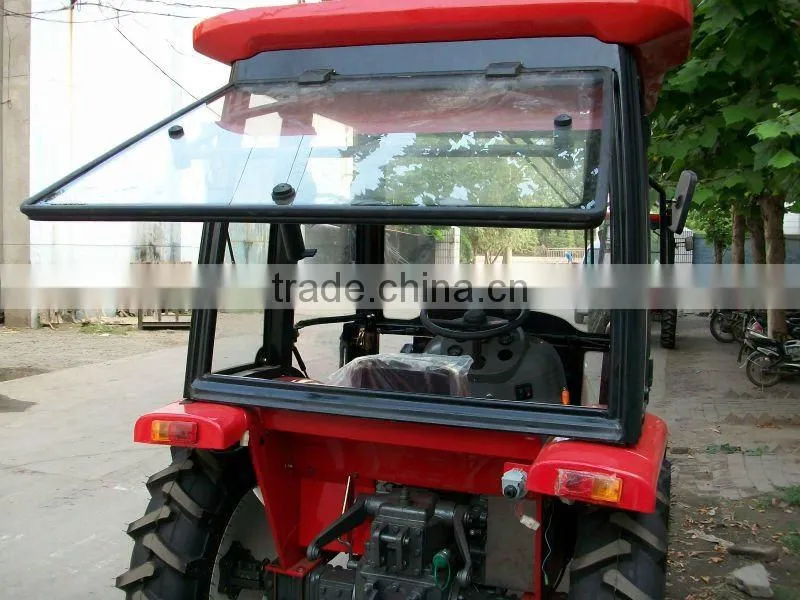

Cabin Tractor 35hp ,4wd ,4 cylider,foton type engine hood and cabin

 Main Technical Specification

Model

TY254B-1

Type

4×4 Wheeled type

 Length

2589

 Width

1230

 Height

1228

Dimensions

 Front wheel

1000

of Tractor(mm)

Tread

 Rear wheel

960

 Wheel base

1670

Min. Ground Clearance

215

2.9

One-side braking

Min. Radius of Turning Circle(m)

No brsking

3.3

 Dry Mass(kg)

1100

Engine

Model

 KM385BT

Type

3-cylinder, Vertical, Water Cooled and 4-Stroke

Bore×Strokemm

85×90

DisplacementL

1.532

Rated Power(KW)

18.4

Rated Rev.(r/min)

2350

Max. Torquenm/Rev.r/min

89/1650

Min. Consumptiong/kw*h

238

Dimensions mm

567× 494× 610

Dry Masskg

180

Fuel

Diesel

Clutch

Single Disc, Dry-friction, Single Stage/Double
Stage Clutch

Transmission

(3+1)×2 or (4+1)×2or(4+1)×2×2Mechanical Type

Steering

Mechanical Type or Hydraulic Type

Hydraulic Output

Single -way output or single/dual-way quick couplingoutput

Suspension

Post Positioned Tri-point Suspension, Catalogue O

Type

PTO

Type and Rev.(r/min)

Single speed Non-independent type540 or double speed Non-independent Type 540/1000,540/720 or Semi-independent double speed type 540/1000,540/720

Spline Size (mm)

Post positioned I35 Rectangle Spline with 6 teeth (6×28.91×34.79×8.69)

Forward

1.77-26.98

Theoretical Speed (km/h)

Reverse

0.33-5.02

Tyre

Front Wheel

5.00-12

Rear Wheel

9.50-16

Structure and specification are subject to change without notice.
