Hot double drum vibratory and oscilating road roller,6 ton road roller

Specifications

1.With scraper and electrical sprinkler
2.Hydraulic power assisted clutch
3.Shoe type brake
4.With small working mass

Hot double drum vibratory and oscilating road roller,6 ton road roller



1. Standered configuration



1.Mechanical driving,

   hydraulic vibrating,

   articulated steering;

2.Front and rear wheel has scraper and electrical sprinkler;

3.Hydraulic power assisted clutch and shoe type brake;

4.Ordinary cab.



2. Main Features



1.Hydraulic vibration , great centrifugal force and high compactness.

2.This roller has articulated frame, hydraulic steering,small turning raming radius and flexible.

3.Anricorrosive spray water system and fool capacity water tank and electric pressurized sprinkler.

4.Shock-proof sock absorber for long life and operate comfortable.

5.Close performance is extremely fine and work close building.

6.Secure hydraulic brake.



3. Main Technical Parameters



MODEL		QLNC6
Operating mass	kg	6000
Static linear load	N/cm	232.4
Drum diameter	mm	950
Rolling width	mm	1320
Centrifugal force	kN	55
Centrifugal movement	KN.m
Oscillation frequency	Hz	46
Oriental vibration amplitude	mm	0.62
Oscillation amplitude
Travel speed 1st gear2ndgear	km/h	2.5/7.5
Grade ability	%	>20
Diesel model		498BG
Diesel speed	r/min	2200
Diesel power	kw	42
Fuel consumption	g/kw.h	245
Overall dimension	mm	3690x1600x2700
Fuel oil capacity	L	65
Hydraulic oil capacity	L	90
Water tank capacity	L	435
Water radiator capacity	L	18
Hydraulic radiator capacity	L	5
Eletrical system	V	12





4. Appication in different environment





Double drum vibratory roller, oscillatory roller, is applicable for maintenance of municipal roads

and highways, as well as the compaction of the narrow road surfaces such as groove foundation

with width above 1.5m, building construction, pipeline backfill and stadium.





5. Pictures of QLNC6

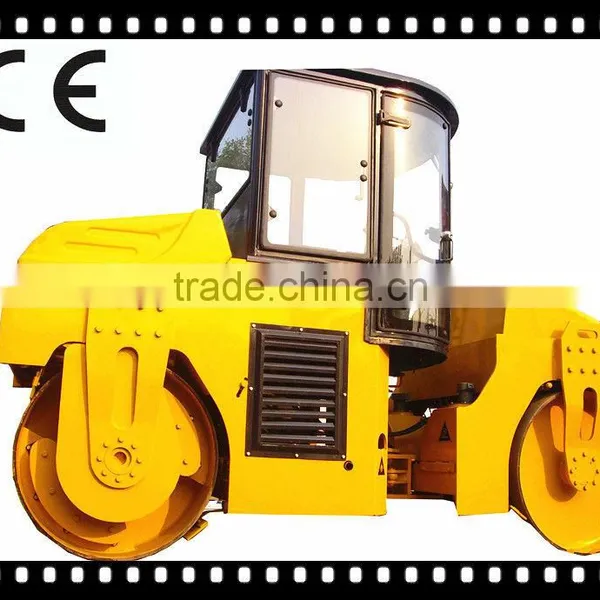

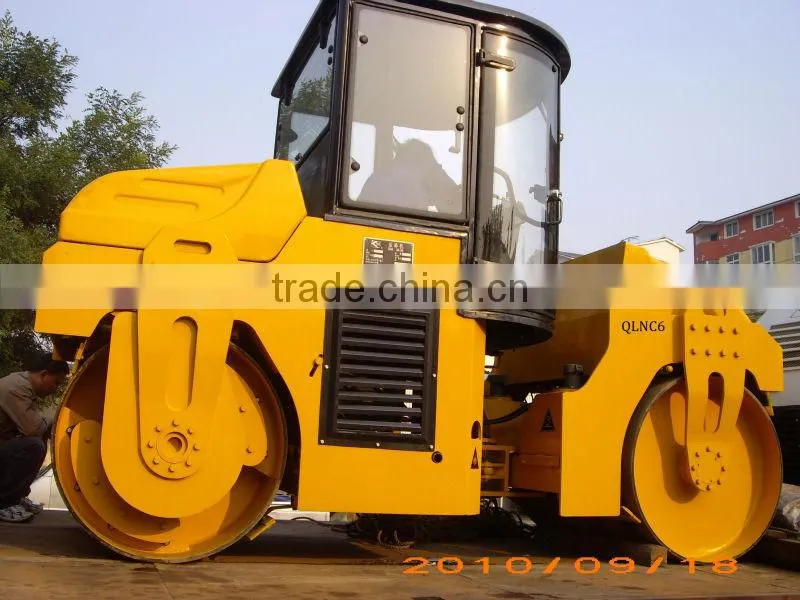

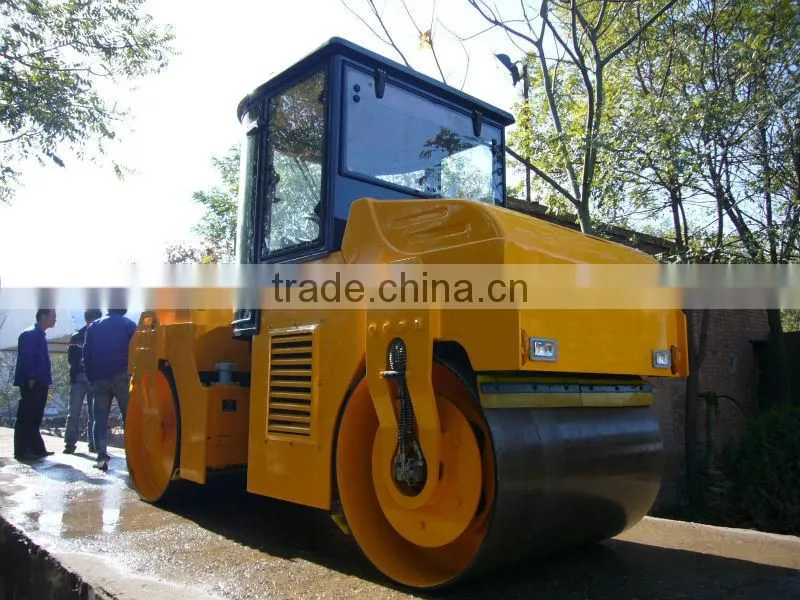

 general view

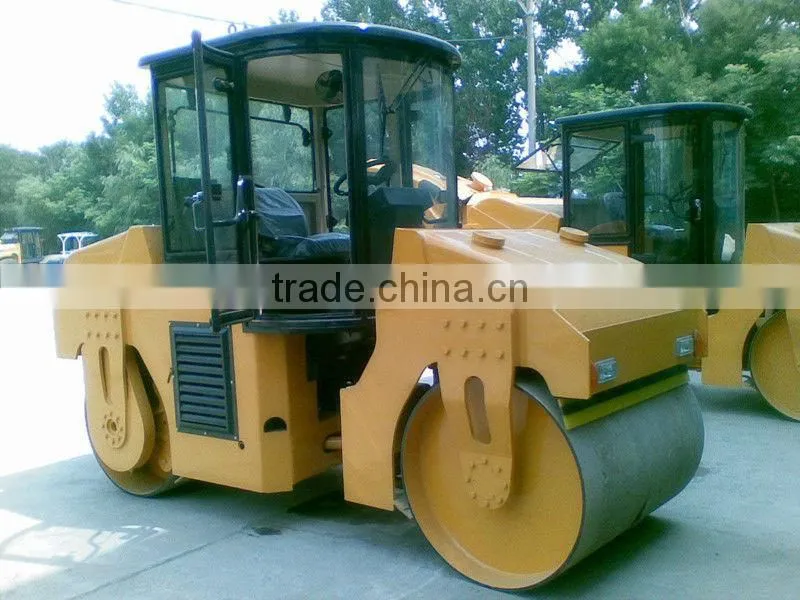

QLNC6 is working

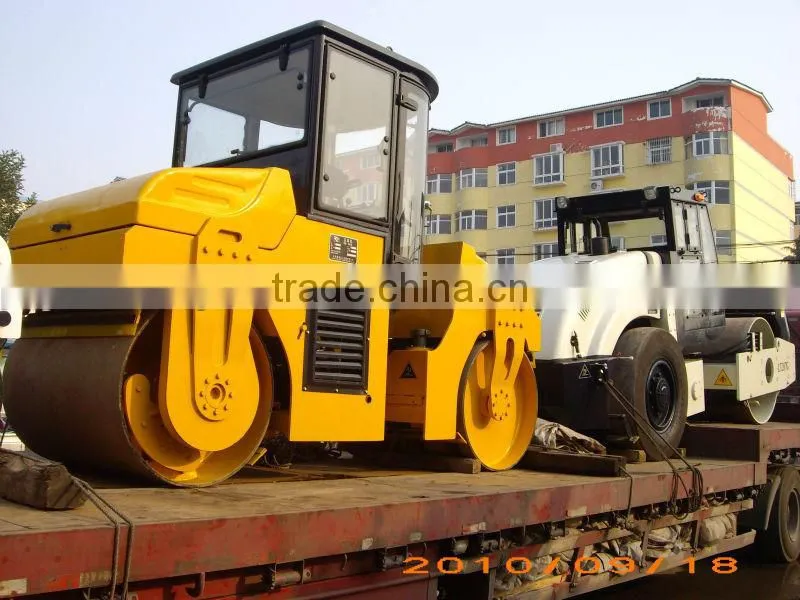

 Road roller waiting for transport





 Details of the roller

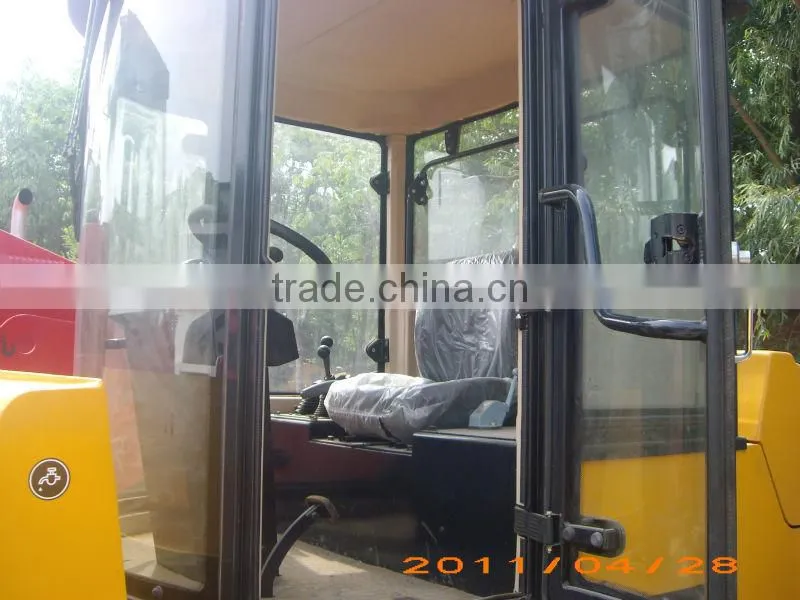

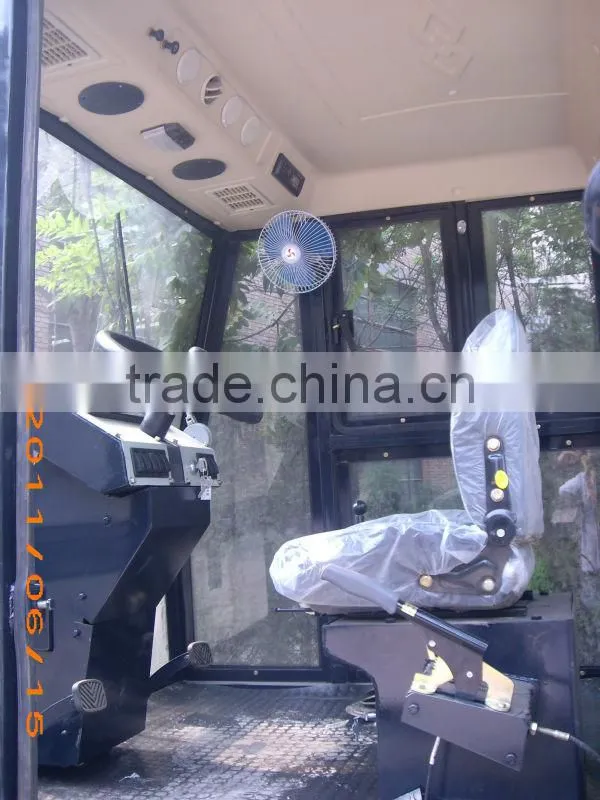

 comfortable cabin

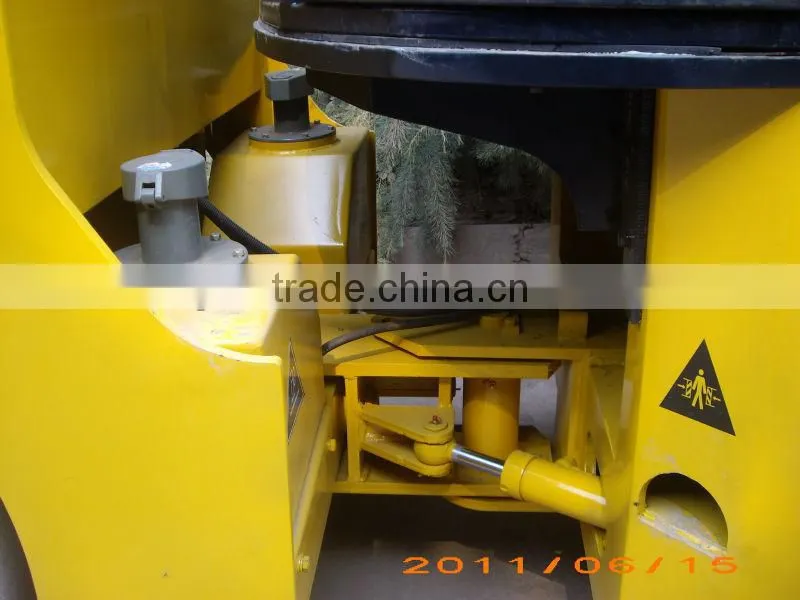

articulated linkage

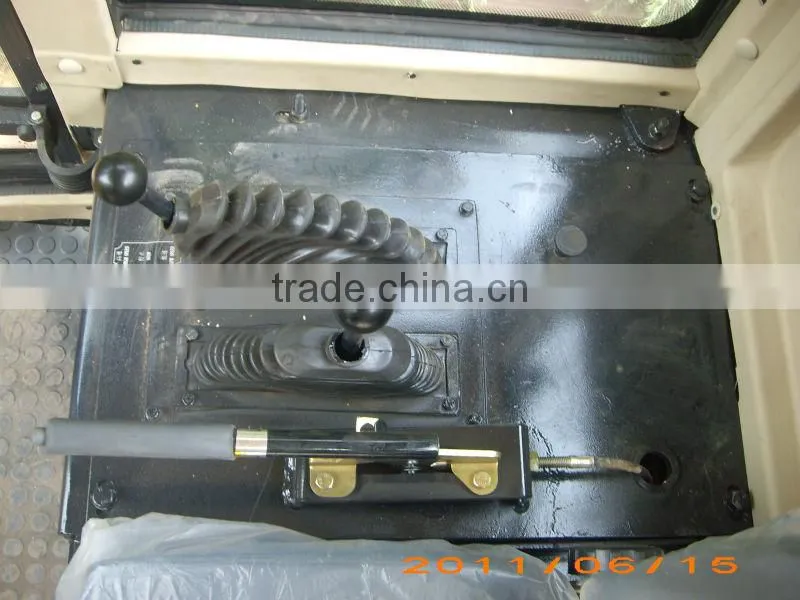

gearshift --- easy to operate

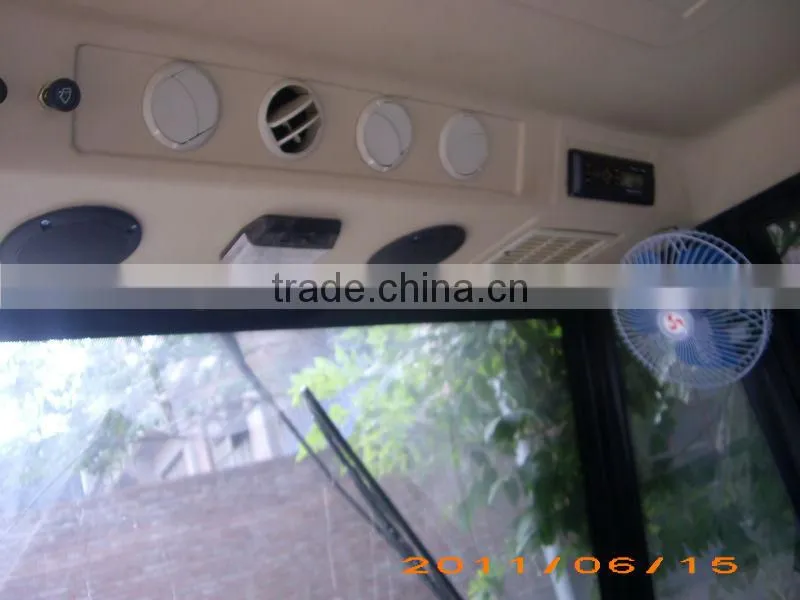

with air conditioning and fan





Our certificates









We offer low price products with highest performance cost ratio.

If you are interested in our road roller, please feel free to contact us.



Best service is our promise.



 Electronic catalog will be sent to you upon receipt of your inquiries.
