High Efficient Stone Ball Mill Machine (MQZ/MG)
- 150 Set / Sets per Month
- ShangHai Tianjin Qingdao
- T/T Credit Card
- Ore Extraction/Benificiation Machine---900*1800 Ball Mill
- Ore Stone Different Models Cone Ball Mill Machine
- High Quality ISO9001: 2008 CE Wet/ Dry Mining Stone Gold Ball Mill
- High Efficiency Cement Ball Mill Ceramic Ball Mill Prices
- Energy-Saving Mineral Ore Cone Ball Mill (YMQ series)
- Gold Ore Grinding Wet Pan Mill
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 22kw | Capacity(t/h): | 1.1-3.5 | Place of Origin: | Henan, China |
Brand Name: | Huahong | Model Number: | 900*3000 | Dimension(L*W*H): | 3800*1000*1500 |
Weight: | 4.6T | Certification: | ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude packs and in bulk or others
Product Description
Huahong good quality ball mill for sale
Ball Mill Introduction:
Ball mill is huahong major product, professional technology support and all-around service can be offered to you, we also can made according to your special requirments. Welcome you visit our company to know more about us!
Ball Mill Application:
1.Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns.
2.To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced.
3.Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.
4.Ball mill is an efficient tool for grinding many materials into fine powder.
5.The ball mill is used to grind many kinds of mine and other materials, or to select the mine.
6.Ball mill is widely used in building material, chemical industry, etc.
7.There are two ways of grinding: the dry process and the wet process.
8.It can be divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Working Principle:
1.The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear.
2.The materials are transferred to the grinding chamber from ball mill through the quill shaft uniformly.
3.There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
4.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
5.The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball Mill Technical Data:
Model | Speed of bucket (r/min) | Weight of ball or rod (t) | Size of feed opening (mm) | size of outputting feed (mm) | Production (t/h) | Power (Kw) | Weight (t) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |
Φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-35 | 475 | 62 |
Note: Any change of Ball Mill technical data shall not be advised additionally.

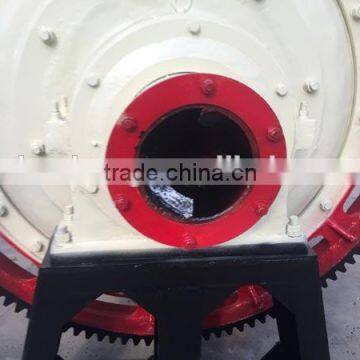

This is our ball mill:
Parts for ball mill:
