Environment friendly 24x40 inches rotary dryer /mining ore drying machine for hot sale
- 120 Set / Sets per Month
- tianjin shanghai qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Most popular 24x40 inches rotary dryer /mining ore drying machine to Peru
- 24x40 inches rotary dryer /mining ore drying machine with good effciency and compact structure
- 24x40 inches rotary dryer /mining ore drying machine with long life time and high effeciency
- 40x400 inches rotary dryer /mining ore drying machine from large direct wholesale Huahong
- 40x400 inches rotary dryer /mining ore drying machine with durable spare parts
- China No.1 40x400 inches rotary dryer /mining ore drying machine with excellent quality and lowest price
Product Details
Place of Origin: | Henan, China | Brand Name: | HUAHONG | Model Number: | refer to specification |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |

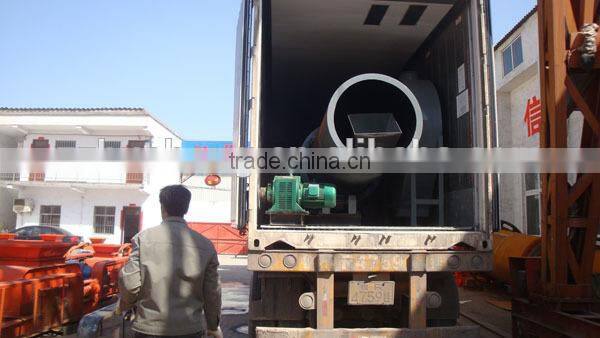

Packaging Details
wooden case , standard export packing
Product Description
Rotary dryer application:
Rotary dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
Rotary dryer Structure:

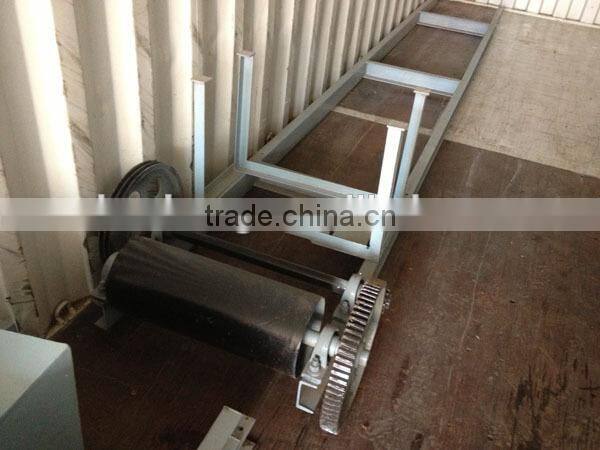

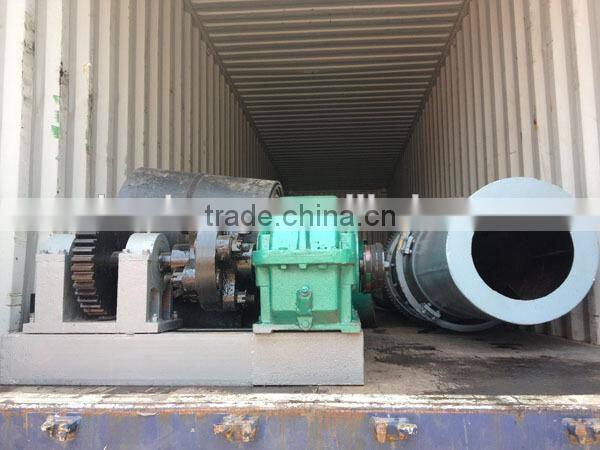

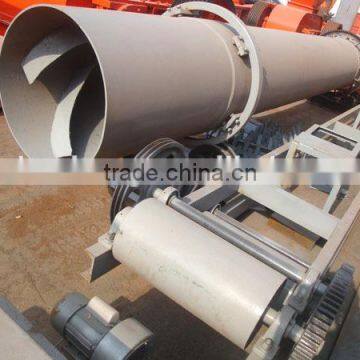

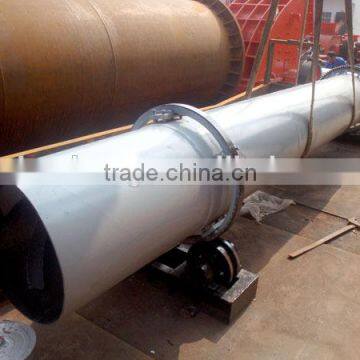

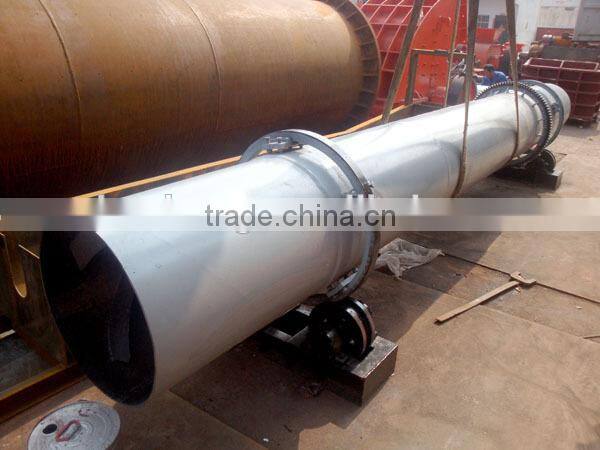

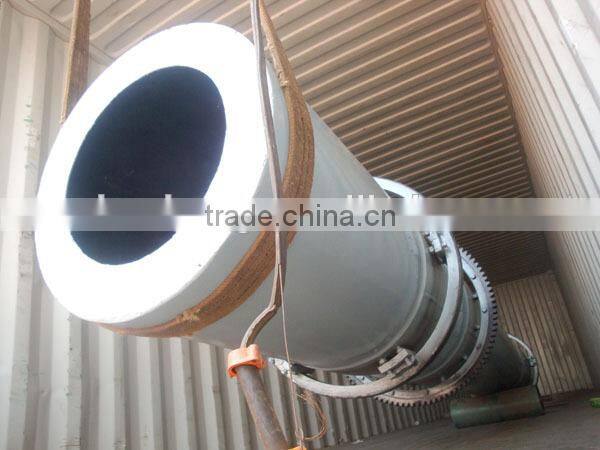

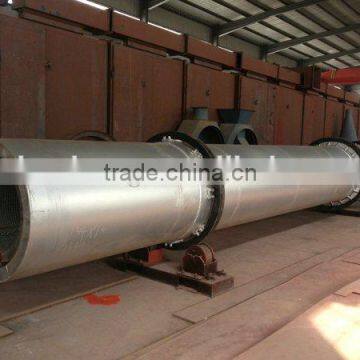

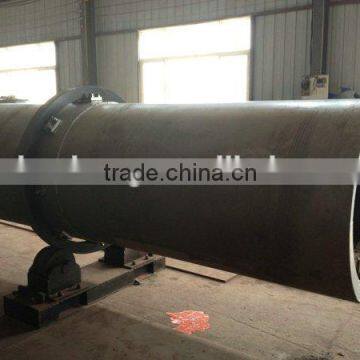

Rotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Rotary dryer working principle:

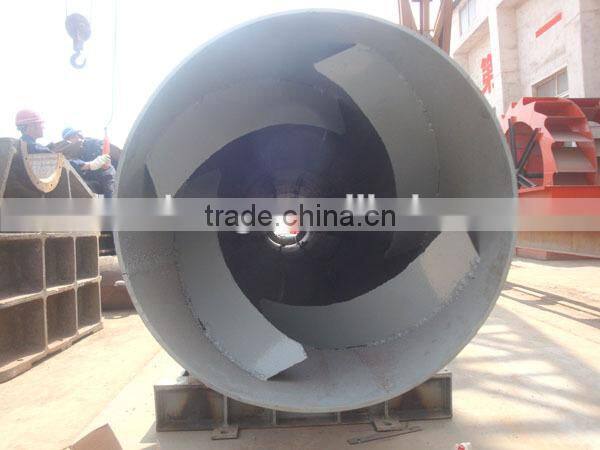

Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Rotary dryer specifications:
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
Ø600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
Ø800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Ø800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Ø1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Ø1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Ø1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Ø1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Ø1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Ø2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Ø2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Ø2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Ø2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Ø3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Ø3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
English standard parameters:
Model (inches) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
Ø24''x240'' | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
Ø32''x320'' | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Ø32''x400'' | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Ø40''x400'' | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Ø48''x400'' | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Ø48''x480'' | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Ø60''x480'' | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Ø72''x480'' | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Ø88''x480'' | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Ø88''x720'' | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Ø88''x800'' | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Ø96''x800'' | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Ø120''x800'' | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Ø120''x1000'' | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
