Large model fine sand making machine for producing building sand

Name: Large model fine sand making machine for producing building sand
Brand: Huahong
Availability: InStock

FOB Price

USD $100 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Qingdao Tianjin
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Production Capacity:	90-120t per hour	Place of Origin:	Henan, China
Brand Name:	Huahong	Model Number:	1200*1200	Voltage:	Normal Industrial Voltage
Power(W):	110-132kw	Dimension(LWH):	3300(mm)x1800(mm)x2400(mm)	Weight:	25.6t
Certification:	ISO9001:2008	Warranty:	One Year	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

nude packs and in bulk or others

Product Description

Professional sand making machine

1.Sand making machines price application:
Sand making machine price is also called new sand making machine, it’s. widely used in the chemical industry, construction, coal mining, refractory material and so on, Further crushing the medium hard materials, such as gypsum, talcum, limestone, cement, clay, Calcite, granite, river gravel , basalt and so on.

2.Sand making machine price Featutres :
Features: Small material size, uniform granularity, big producing capacity, long-life hammer, supporting small power, and change three for two broken broken, process simplification, simple structure, easy maintenance, and the smooth running characteristics. Equipment investment lower than the same size of the traditional technique and equipment 35% -50%, higher than the same scale output efficiency of traditional technique and equipment 35% -50% (limestone as an example: One product size ≤ 5 mm accounting for 85 percent). Long-term maintenance costs run less than the same size of the traditional technique and equipment 35% -50%.

3.Sand making machines price Main technical parameters:

model	Feeder Opening mm	Feeding Size mm	Output size mm	Output size mm	Capacity t/h			Motor (kw)
model	Feeder Opening mm	Feeding Size mm	Output size mm	Output size mm	Clinker	limestone	Siliceous sand	Motor (kw)
800×400	400×185	120	≤5	5-20	20-30	30-45	35-45	22-37
800×600	500×250	180	≤5	5-20	35-40	40-55	45-55	37-45
800×800	550×330	180	≤5	5-20	35-45	60-65	55-65	37-45
1010×1010	1000×350	180	≤5	5-20	45-55	60-75	65-75	45-55
1200×1000	1200×400	180	≤5	5-20	80-110	80-100	80-100	90-110
1200×1200	1200×450	180	≤5	5-20	100-110	90-100	90-120	110-132
1400×1400	1500×500	190	≤5	5-20	100-150	100-150	120-150	160
1600×1600	1600×550	190	≤5	5-20	170-210	190-250	190-250	250
1800×1800	1800×800	190	≤5	5-20	250-270	280-310	280-310	280

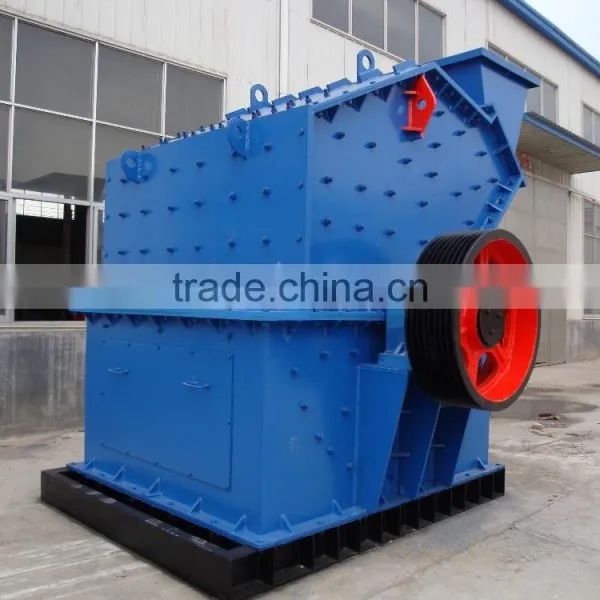

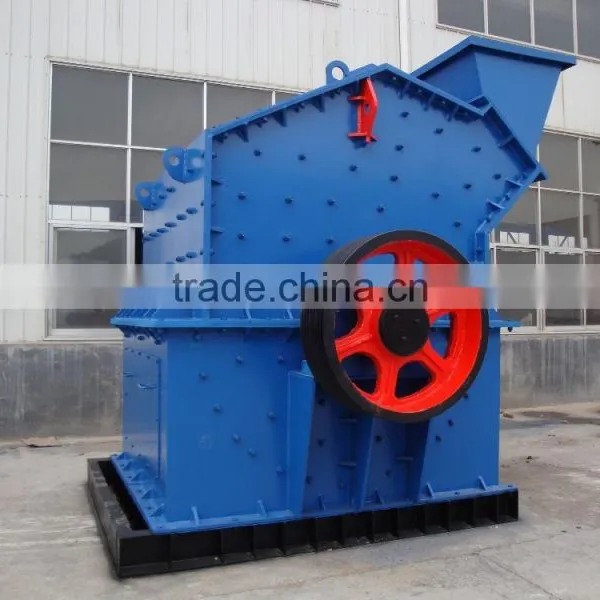

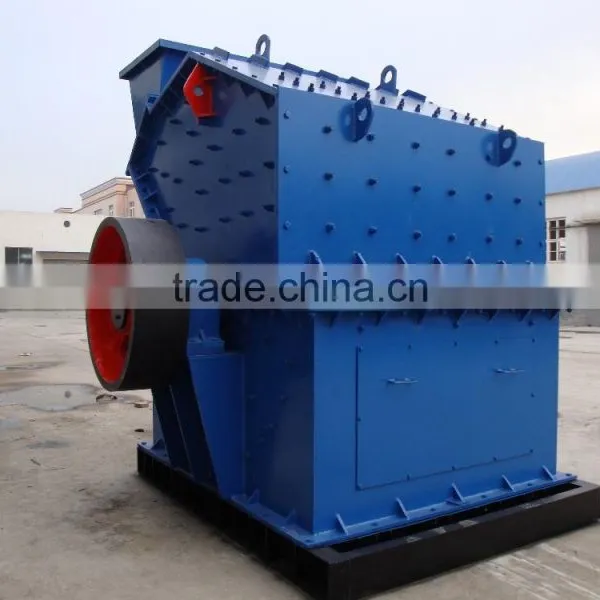

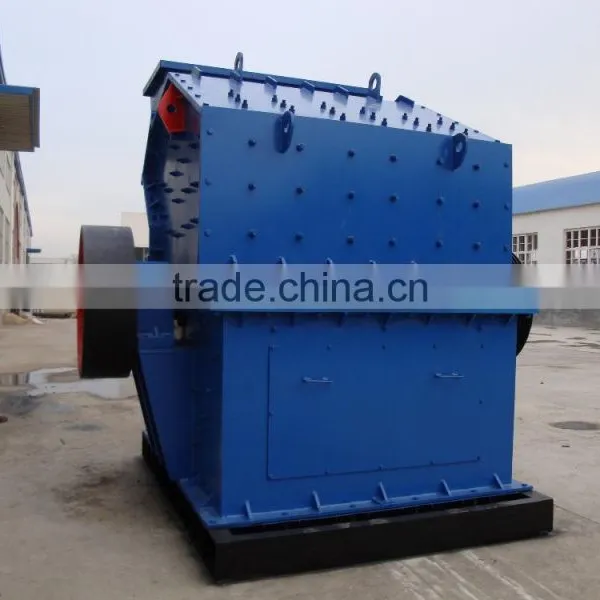

Back picture:

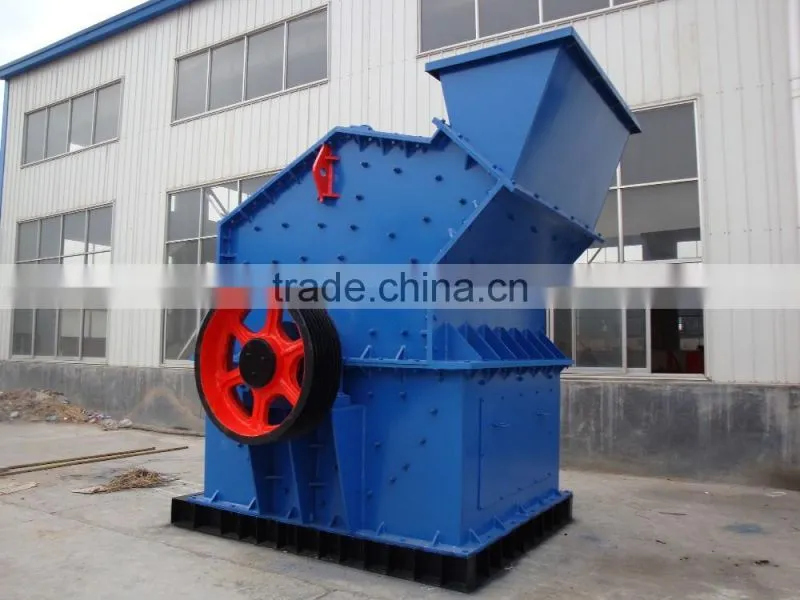

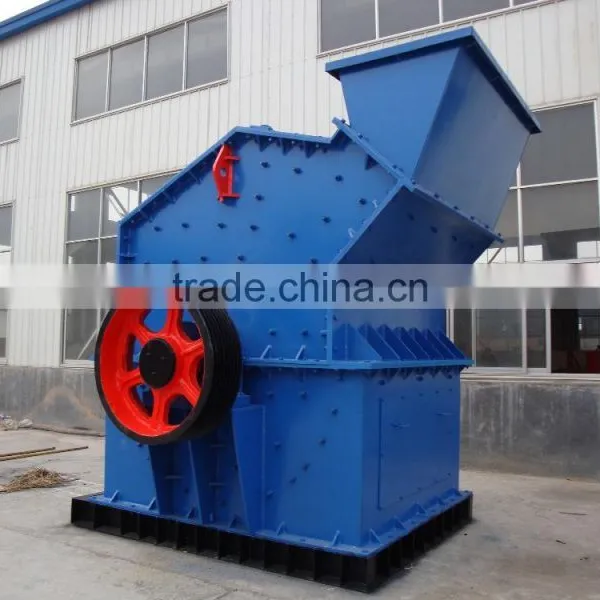

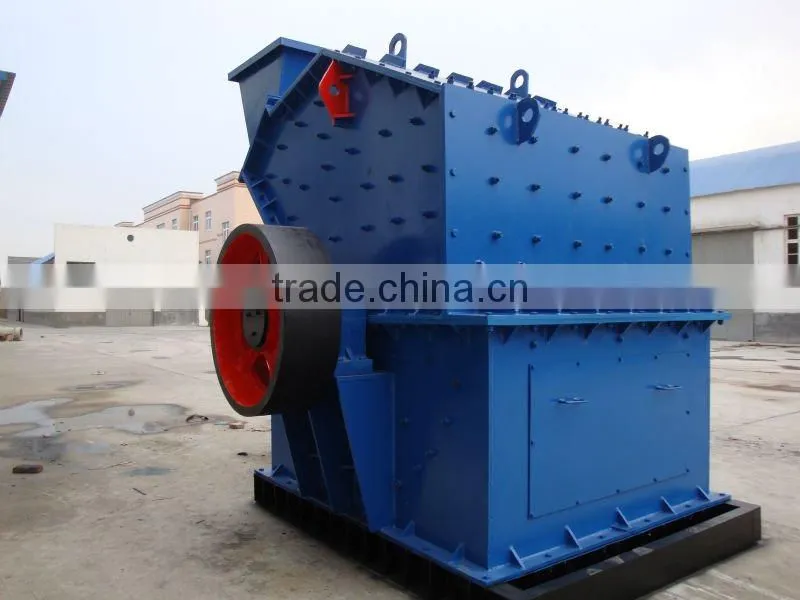

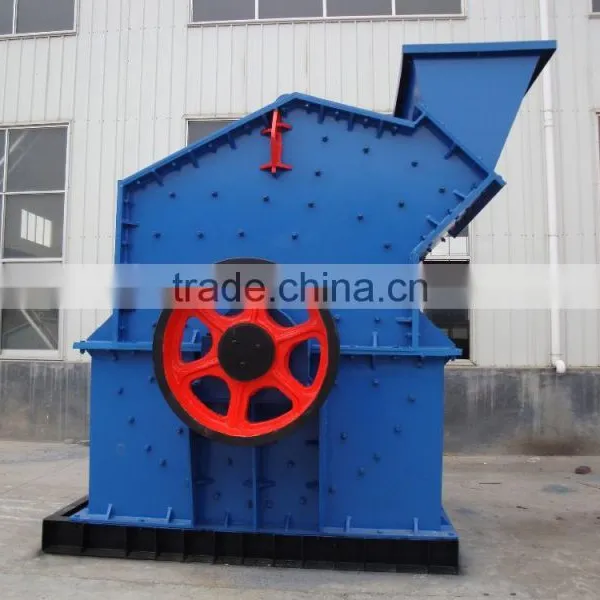

Front picture:
