Huahong durable and credible third generation sand making machine with little energy consumption and attractive price
- 60 Set / Sets per Month
- tianjin shanghai qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Huahong The third generation aluminum zinc fine crusher sand making machine
- Huahong best manufacturer supply the best-selling superfine third-generation sand making machine
- Huahong Fine crushing machine/stone crusher/the third generation sand making machine in great need
- Huahong Hot Sale in Philippines Third Generation Sand Making Machine/Sand Production Line hot in vietnam
- Huahong Third-generation Sand Making Machine with factory price and dependable quality
- Huahong Stone Fine Crusher/Sand Making Machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | HUAHONG |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard export, as clients' requirement
Product Description
Features of Hot sell new sand making machine , third generation sand making machine
1. Advanced double-pump oil lubrication system guarantee shaft bearing lower temperature increase, longer life time, more reliable operation.
2. Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increases productivity.
3. Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
4. Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
5. Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.
6. Special feed opening structure makes it possible that center feeding and ring feeding comes together, in order to meet requirement of different stones. In addition, this equipment can not only crush stone, but also iron.
7. Shape of material-through device is better designed, which improve the utilization ratio.
third generation sand making machine Working Principle:
1.Center Feeding:Raw material falls down into feed hopper, then enters impellor through central entrance hole. It is accelerated in high-speed impellor, then is thrown out at speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet.
2. Center and Ring Feeding: Raw material falls down into feed hopper, then through ring, it is devided into two parts by material-dividing plate. One enters into impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.
Technical Data of Hot sell new sand making machine, third generation sand making machine
model | Feeder Opening (mm) | Feeding Size (mm) | Output size (mm) | Output size (mm) | Capacity t/h | Motor (kw) | ||
Clinker | limestone | Siliceous sand | ||||||
800×400 | 400×185 | 120 | ≤5 | 5-20 | 20-30 | 30-45 | 35-45 | 22-37 |
800×600 | 500×250 | 180 | ≤5 | 5-20 | 35-40 | 40-55 | 45-55 | 37-45 |
800×800 | 550×330 | 180 | ≤5 | 5-20 | 35-45 | 60-65 | 55-65 | 37-45 |
1010×1010 | 1000×350 | 180 | ≤5 | 5-20 | 45-55 | 60-75 | 65-75 | 45-55 |
1200×1000 | 1200×400 | 180 | ≤5 | 5-20 | 80-110 | 80-100 | 80-100 | 90-110 |
1200×1200 | 1200×450 | 180 | ≤5 | 5-20 | 100-110 | 90-100 | 90-120 | 110-132 |
1400×1400 | 1500×500 | 190 | ≤5 | 5-20 | 100-150 | 100-150 | 120-150 | 160 |
1600×1600 | 1600×550 | 190 | ≤5 | 5-20 | 170-210 | 190-250 | 190-250 | 250 |
1800×1800 | 1800×800 | 190 | ≤5 | 5-20 | 250-270 | 280-310 | 280-310 | 280 |

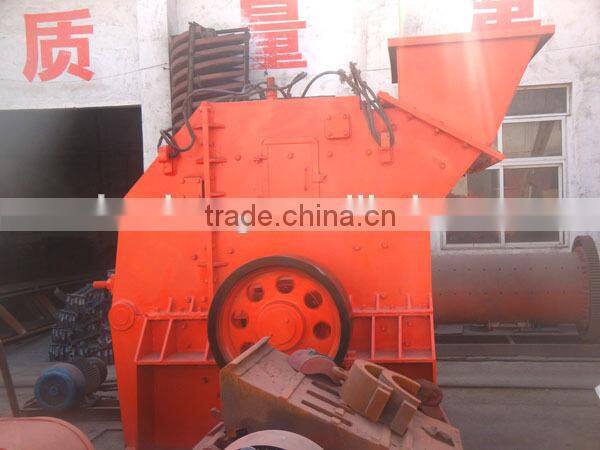

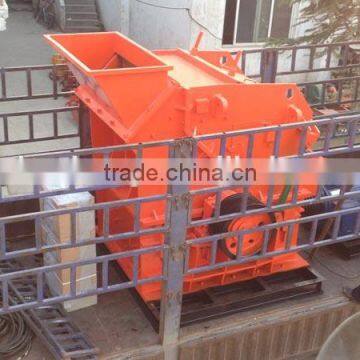

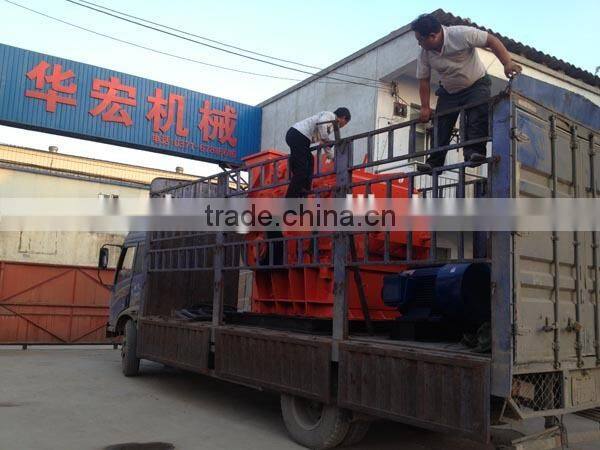

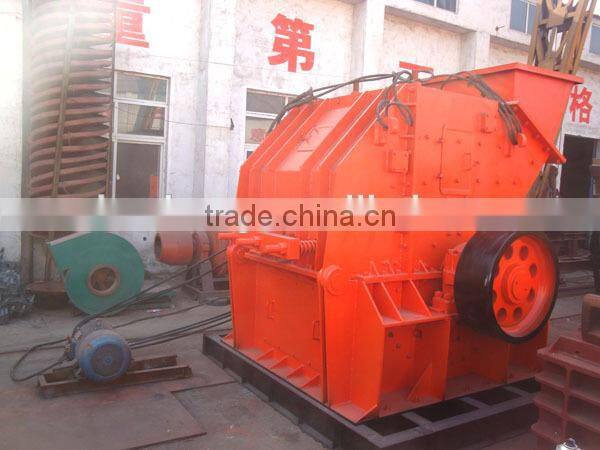

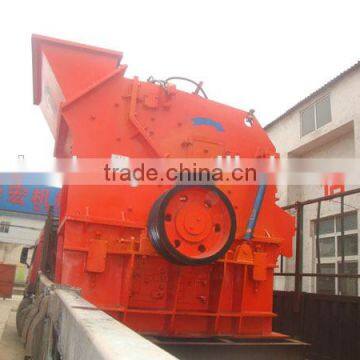

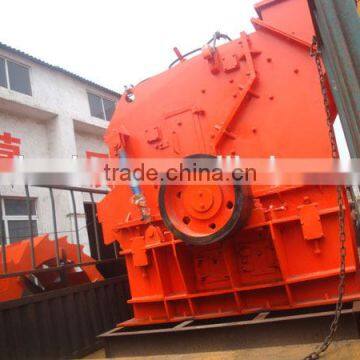

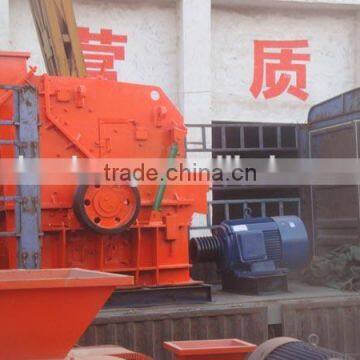

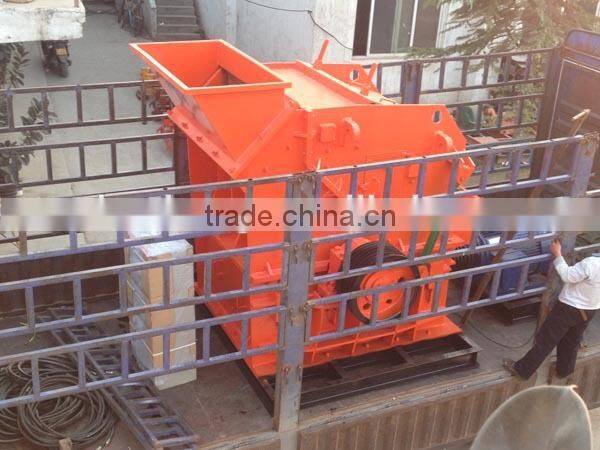

Sand making machine picture show:
Sand making line:
Inner structure:
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
Pre-sales Service
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit Huahong working machines or complete plant in the site. To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
After-sales Service
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also. After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of Huahong, they are now strategically located home and abroad, working for our customers.
Zhengzhou Huahong Machinery Equipment Co, Ltd is a company that produce large and medium-sized crushers and mills and many other mineral equipment Our company is located in Zhengzhou,henan province. Our main products are crushers, raymond mill, rotary dryer, grinding mills, vibrating feeder, vibrating screen and so on. All these machines have bben used in various fields, such as mining, chemical industry, metallurgy, coal, and fire resistant materials.
The company owns a large group of excellent crews that represent the authority of management and research. And they absord the advanced management method of domestic and overseas positivly. Now, the company has developed more and more perfect. We hope that we can provide customers more good products and we still keep learning.
Certification:
If you are interested in our products, please contact us, we will give you the most favorable price, welcome to visit the factory.
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.
Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others.
Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others.
Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others.
Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others.
We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques.
Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
