Home > Products > Vibrating Screen > Vibrating Screening Equipment,electric vibrating sand screen,vibrating screen classifier

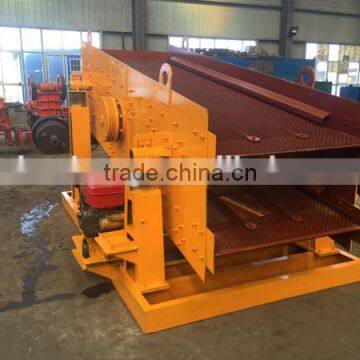

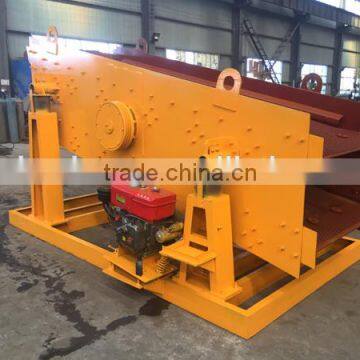

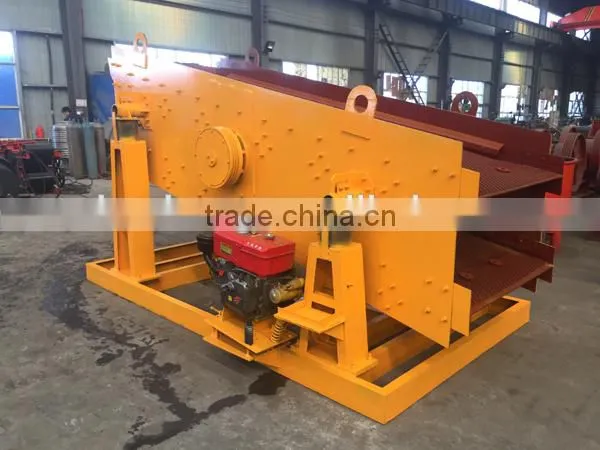

Vibrating Screening Equipment,electric vibrating sand screen,vibrating screen classifier
- 150 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | HuaHong | Model Number: | 2YK1235 |
Voltage: | Required | Power(W): | 5.5kw | Dimension(L*W*H): | 1200*3500mm |
Weight: | 5t | Certification: | ISO9001 | Warranty: | 1 eyar |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude packs or in bulk or others
Product Description
Vibrator screen sieve/circular vibration screen /vibrating screener
Vibrating screen of working priciple;
Vobrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. It can be used in the automatic production line.
Vibrating screen advantages:
1.high efficiency, low energy consumption;
2.simple structure, convenient maintenance;
3.fully closed structure without dust pollution;
4.Stable working station and smooth operation;
5.High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
6.High-precision screening reach to 96% or above, large processing capacity, etc.
Vibrating screen application:
It is Widely used in plastics, abrasive, chemical, pharmaceutical, building materials
Vibrating screen main Technical Parameters | |||||||
Model | Layer | Dimension Size(mm) | Max. Feed Size(mm) | Capacity(t/h) | Vibrating Frequ Ency(r/min) | Power (kw) | Double Swing (mm) |
2YK1235 | 3 | 1200*3500 | 400 | 60-180 | 870 | 5.5 | 5-9 |
2YK1545 | 2 | 1500*4500 | 400 | 120-275 | 870 | 15 | 5-9 |
3YK1545 | 3 | 1500*4500 | 400 | 120-275 | 870 | 15 | 5-9 |
3YK1548 | 4 | 1500*4800 | 400 | 120-275 | 870 | 15 | 5-9 |
4YK1548 | 2 | 1500*4800 | 400 | 200-275 | 870 | 15 | 5-9 |
3YK1848 | 3 | 1800*4800 | 400 | 200-330 | 870 | 18.5 | 5-9 |
4YK1848 | 4 | 1800*4800 | 400 | 250-330 | 870 | 18.5 | 5-9 |
3YK1860 | 2 | 1800*6000 | 400 | 250-586 | 870 | 22 | 5-9 |
4YK1860 | 3 | 1800*6000 | 400 | 300-586 | 870 | 22-30 | 5-9 |
3YK2060 | 4 | 2000*6000 | 400 | 300-720 | 730 | 37 | 5-9 |
4YK2060 | 2 | 2000*6000 | 400 | 400-720 | 730 | 30-37 | 5-9 |
3YK2460 | 3 | 2400*6000 | 400 | 400-810 | 770 | 37 | 5-9 |
4YK2460 | 1 | 2400*6000 | 400 | 450-810 | 770 | 37 | 5-9 |
