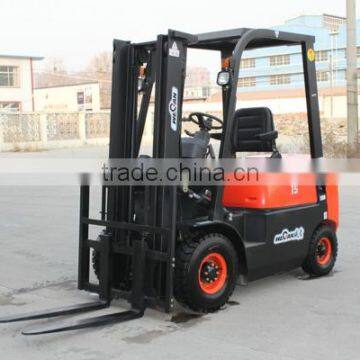

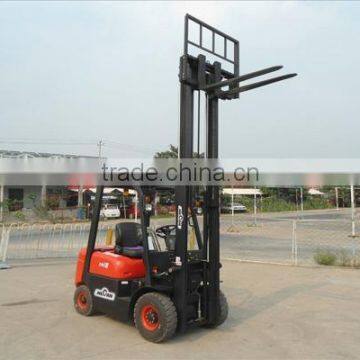

Diesel forklift 1.8ton CPCD18FR
- 100 Set / Sets per Month
- QINGDAO/SHANGHAI
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HANTANG |
Model Number: | CPCD18FR | Type: | Manual Pallet Truck | Power Souce: | AC Motor |
Rated Loading Capacity: | 1800kg | Max. Lifting Height: | 3000mm | Min. Lifting Height: | 70mm |
Fork Length: | 1070mm | Fork Width: | 122mm | Overall Dimensions: | 3195x1085x1995mm |
Certification: | ISO9001 | After-sales Service Provided: | Overseas service center available |
Product Description
Diesel forklift 1.8ton CPCD18FR
Main Features:
Rated capacity:1800kg
Mini forklift for narrow and small space
Low center of gravity, small turning radius; more stable and reliable
Comfortable seat for long-time operation
Safe overhead guard
Rear light for working in the dark
Dual air filter
Streamline balance weight
Side shifter is optional
Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6mmast.
General | |||
Brand |
| ||
Model |
| CPCD15FR | CPCD18FR |
Rated capacity | kg | 1500 | 1800 |
Load center | mm | 500 | 500 |
Power type |
| Diesel | Diesel |
Transmission |
| Hydraulic/Mechanical | |
Dimensions | |||
Lifting height | mm | 3000 | 3000 |
Free lifting height | mm | 70 | 70 |
Turning radius | mm | 2000 | 2000 |
Overall length | mm | 3195 | 3195 |
Overall width | mm | 1085 | 1085 |
Overall height (mast lowered) | mm | 1995 | 1995 |
Overall height (mast raised) | mm | 4030 | 4030 |
Overall height (overhead guard) | mm | 2085 | 2085 |
Fork length | mm | 1070 | 1070 |
Fork width | mm | 122 | 122 |
Fork thickness | mm | 40 | 40 |
Max. driving speed (with/without load) | km/h | 14.5/15 | 14.5/15 |
Performance | |||
Max. lifting speed (with load) | mm/s | 500 | 500 |
Max. traction (with/without load) | kn | 14.4/8.4 | 14.4/9.1 |
Gradeability (with/without load) | % | 15/20 | 15/20 |
Tilting angles (forward/backward) | ° | 6/12 | 6/12 |
Service weight | kg | 2650 | 2850 |
Engine | |||
Engine model |
| 485BPG engine | 485BPG engine |
Power | kw | 30 | 30 |
Rated speed | rpm | 2600 | 2600 |
Displacement | L | 2.07 | 2.07 |
No. of cylinder |
| 4 | 4 |
Wheel | |||
Front overhang | mm | 430 | 430 |
Wheel base | mm | 1450 | 1450 |
Front tread | mm | 890 | 890 |
Rear tread | mm | 920 | 920 |
Front tire |
| 6.50-10-10 | 6.50-10-10 |
Rear tire |
| 5.00-8-10 | 5.00-8-10 |
Diesel forklift 1.8ton CPCD18FR
1.20'container can load 5 sets 1.5ton diesel forklift truck
2.40'container can load 10 sets 1.5ton diesel forklift truck
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
Hantang Machine is engaged in manufacturing and exporting kinds of construction machines.
Such as wheel loader, truck crane, crawler crane, bulldozer, excavator, forklift,
concrete pump truck,dump truck, tractor, trailer, etc.
Great Service is our Mission. We always take client's dement as our No.1 supply.
With more than 9 years construction machine experience,
Hantang Machine staff team can supply client any high quality products and quality service.
