Chinese Assessed Supplier excavator bucket cutting edges sold best
China TOP supplier —— Higher Blades, provide most professional service and material knowledge based on over 20 years' experience on high strength wearing steel. Please contact my whatsapp or mobile +86-13808939779 for best price
Chinese Assessed Supplier excavator bucket cutting edges sold best part number as follows
| Part Number | Width | Thickness | Length | Bolt size | Holes |
| 4T2233 | 203 | 25 | 2133 | 3/4" | 15 |
| 4T2242 | 203 | 25 | 2133 | 5/8" | 15 |
| 4T2244 | 203 | 25 | 1828 | 5/8" | 13 |
| 5B5564 | 152 | 16 | 1828 | 5/8" | 8 |
| 5D9553 | 152 | 16 | 1828 | 5/8" | 13 |
| 5D9554 | 152 | 16 | 2133 | 5/8" | 15 |
| 5D9556 | 152 | 20 | 1828 | 5/8" | 13 |
| 5D9557 | 152 | 20 | 2133 | 5/8" | 15 |
| 5D9558 | 203 | 20 | 1828 | 5/8" | 13 |
| 5D9559 | 203 | 20 | 2133 | 5/8" | 15 |
| 5D9561 | 203 | 16 | 2133 | 5/8" | 15 |
| 5D9562 | 203 | 16 | 1828 | 5/8" | 13 |
| 7D1158 | 203 | 16 | 2133 | 3/4" | 15 |
| 7D1577 | 203 | 20 | 2133 | 3/4" | 15 |
The mechanical property can be made follows:
| Material Serie | Hardness (HB) | Yielding Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Impact Energy (J/cm²) |
| HM400 | 370-430 | ≥1050 | ≥1250 | ≥12 | 24(-20℃) |
| HM500 | 470-520 | ≥1250 | ≥1500 | ≥7 | 24(-20℃) |
| HC80 | 250-330 | ≥450 | ≥900 | ≥11 | ≥15(25℃) |
| HC45 | 170-200 | ≥355 | ≥600 | ≥16 | ≥39(25℃) |
Higher Blades is China top manufacturer with over 20 years experience for cutting edges, end bit, bucket blade, overlay, teeth, ripper, bolt for bulldozer, loader, grader, excavator, scaraper, snow plow. We also provide OEM and customized service.

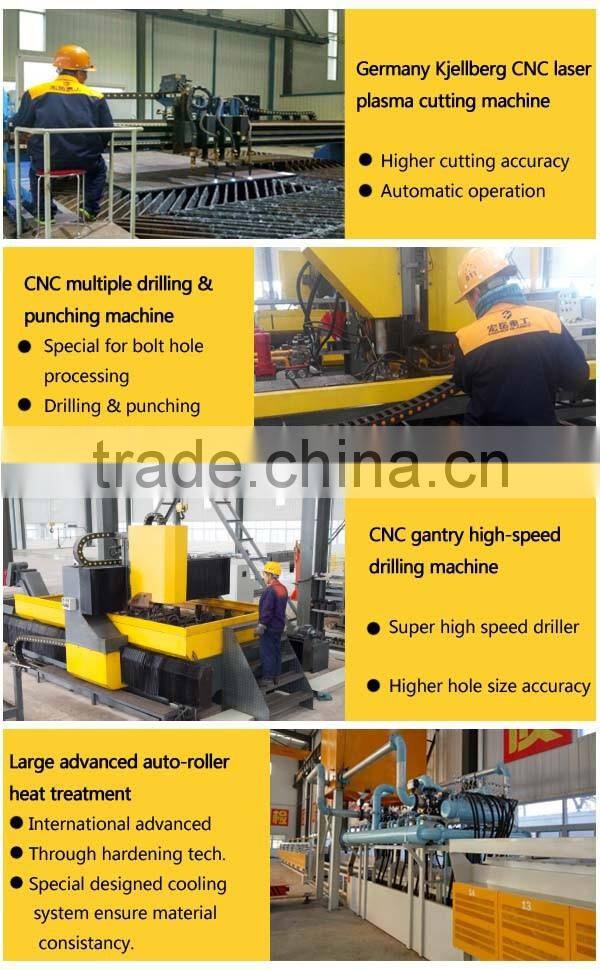

Higher Blades is the China TOP manufacturer. Especially for the core process, heat treatment,our production line is the best one in China.
Our laboratory is the drafter of National Standard of Wear Reistant Steel GB/T24186-2009. We provide full range mechanical test.
Looking forward to your request! Our fast response will feedback within 12 hours.
Mobile/Whatsapp: +86-13808939779
