High quality Dongfeng 4x2 asphalt distribution trucks manufacturer
- 1000 Set / Sets per Month
- Shanghai or any port in China
- T/T Credit Card
You May Like
-
Concrete Road Repairing Machine DFAC 5000L Asphalt Spray Truck
-
For Road Maintenance Of DONGFENG 4X2 Asphalt Spray Truck For Sale
-
6000L Asphalt Distributor, asphalt sprayer trucks, asphalt distributor trucks for sale
-
The Low price 10CBM bitumen spray truck for sale with high configuration
-
Dongfeng 8000L-10000L Intelligentized Asphalt Distribution truck
-
10cbm Dongfeng 4*2 asphalt distributioning truck for city beautification , architectural engineering
Product Details
Drive Wheel | 4x2 | Fuel | Diesel | |
Transmission Type | Manual | Condition | New | |
Sprinkling Area (m) | 8 - 12m | Emission Standard | Euro 3 | |
Engine Capacity | 4 - 6L | Tank Volume | 10001 - 15001L | |
Dimensions (L x W x H) (mm) | 6990*2480*3100 | Brand Name | Dongfeng | |
Place of Origin | Hubei, China | Model Number | EQ1090T9ADJ3AC | |
Gross Vehicle Weight | 9400 | Certification | CCC | |
Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

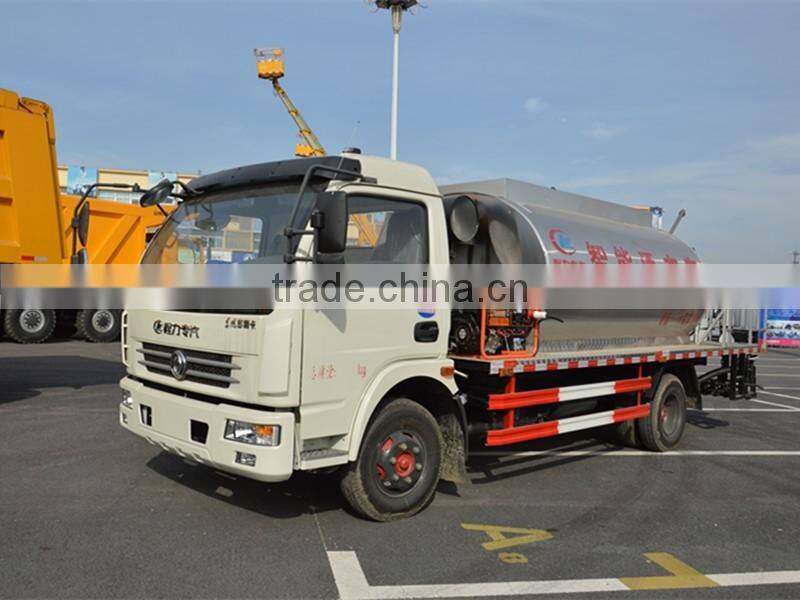

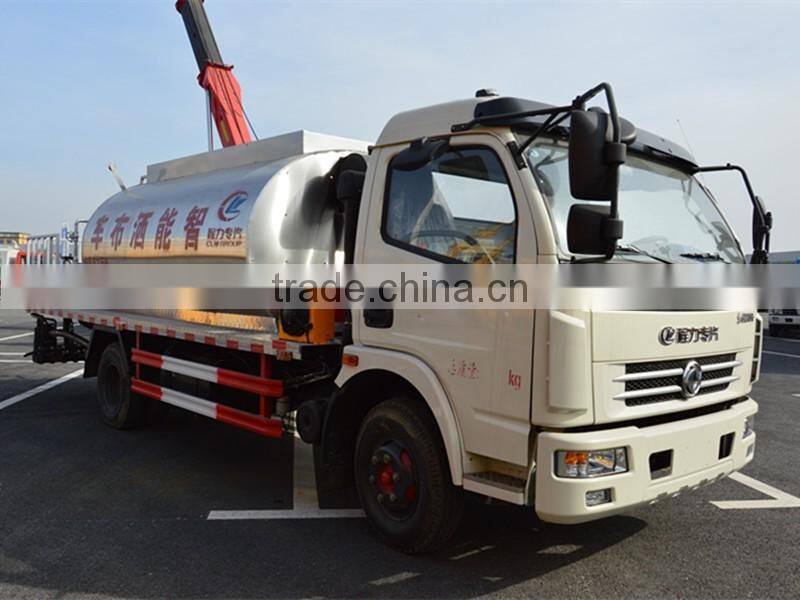

High quality Dongfeng 4x2 asphalt distribution trucks manufacturer
No. | Name | Specification and Parameter | Remarks |
1 | Vehicle Name | Asphalt distribution truck |
|
2 | Drive Type | 4X2 |
|
3 | Chassis | EQ1090T9ADJ3AC | Dongfeng |
4 | Engine | CY4102-E3C | Dongfeng Chaoyang |
5 | Displacement / Power | 3856ml/91kw |
|
6 | Emission standard | Euro 3 |
|
7 | Fuel type | Diesel |
|
8 | Wheelbase | 3800mm |
|
9 | Tire specification | 7.50R16 |
|
10 | Gross weight | 9400 kg |
|
11 | Payload | 4950 kg |
|
12 | Curb weight | 4255 kg |
|
14 | Asphalt Tank volume | 6000 L |
|
15 | Hydraulic pump | CBQ550-L | Made in China |
16 | Transmission | 5 forward gears and 1reverse |
|
17 | Asphalt pump hydraulic drive pump | 05-90-BD31 | Made in China |
18 | relief valve , reversing valves | Made in China | Made in China |
19 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
20 | Asphalt pump | QGB680( max displacement 680L/min) | Made in China |
21 | Burner | G10 | Made in Italy |
22 | Heat-transfer oil pump | 40-25-160 | Made in China |
23 | Control system | CLW-39-01 (GERMANY SIEMENS) | optional |
24 | generator | 5.5KW( gasoline generator ) | Honda |
25 | Sprinkle the cloth width | 4.5M-6M |
|
26 | Asphalt spraying No. | 11-39PCS | ( Optional Intelligent spraying ) |
High quality Dongfeng 4x2 asphalt distribution trucks manufacturer ---- Products Description:
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
High quality 4 Dongfeng 4x2 asphalt distribution trucks manufacturer ---- performance Feature:
1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width.
2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form.
3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck.
4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system
5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. It can improve the heating efficiency and reduce the construction time to ensure the spray temperature.
6. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank.
7. In order to make sure the vehicle reliabilityand extend the service life, the critical part of the vehicle adopt to the international famous parts.
8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time.

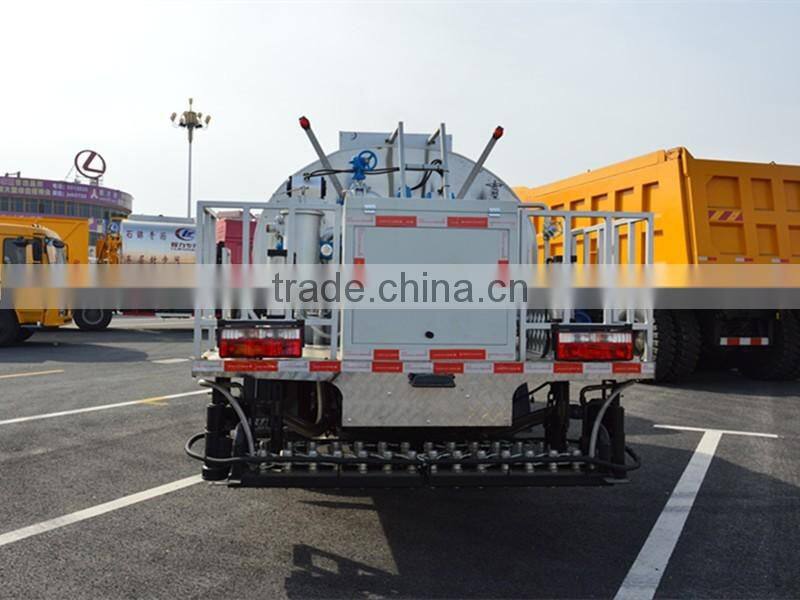

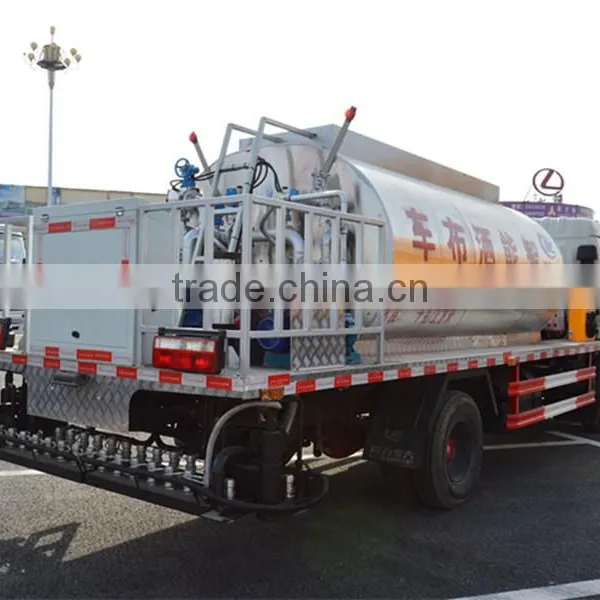

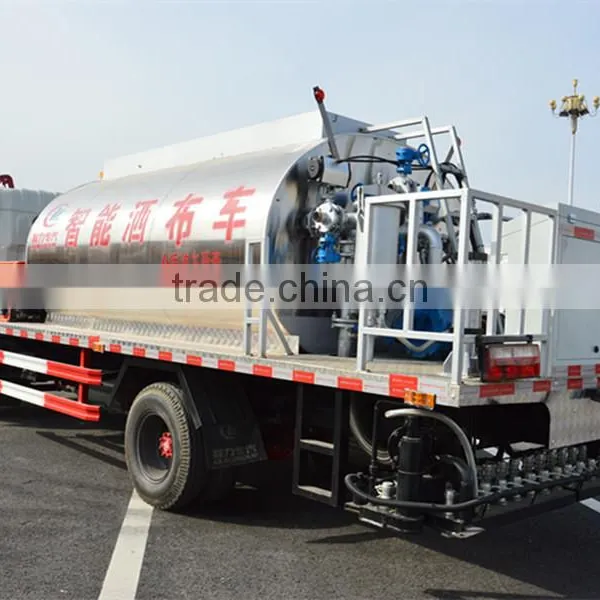

9. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what’ more . It can avoid obstacles efficiently.
10.The manual spraying function can make spraying through the hand nozzle,it is quite flexible but only applicable to small and marginal construction Condition.
11. Blow the rest asphalt through the spray nozzle function, this function also can prevent the asphalt frozen on the nozzle, thus can extend the nozzle service life.
12. It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index≤12℃/8h.
High quality 4 Dongfeng 4x2 asphalt distribution trucks manufacturer --- packaging & Shipping
High quality 4 Dongfeng 4x2 asphalt distribution trucks manufacturer ----- Notes:
A. Delivery time: Normally with 20-35days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment
after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper
operation situation, normally 12 months, but the whole life supply maintenance .
Welcome to your inquiry .
For more information , please feel free to contact me ! we will do our best to work with you to get the job done .
