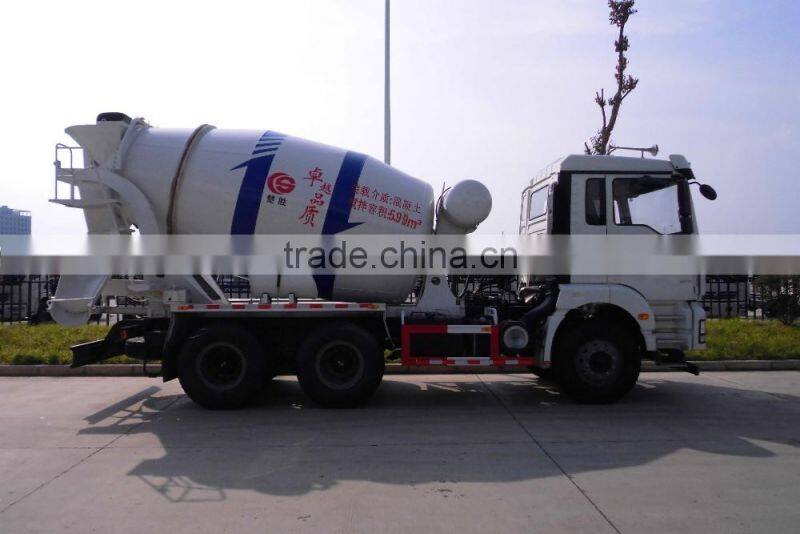

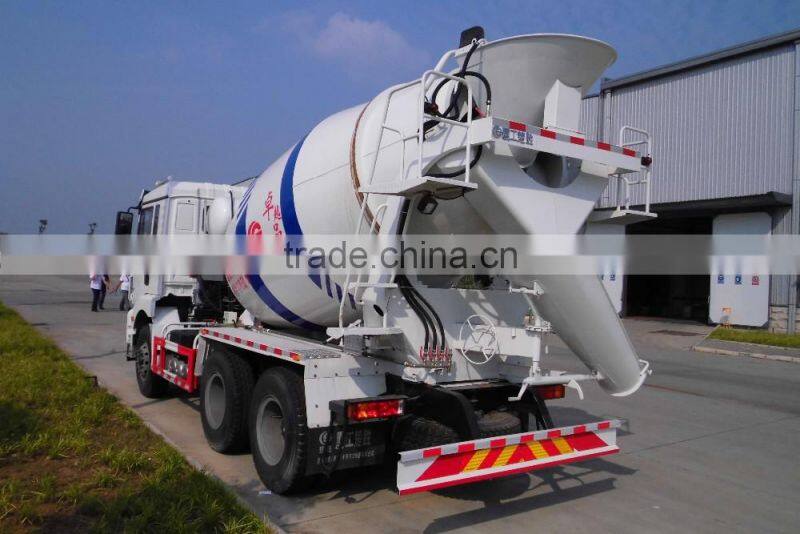

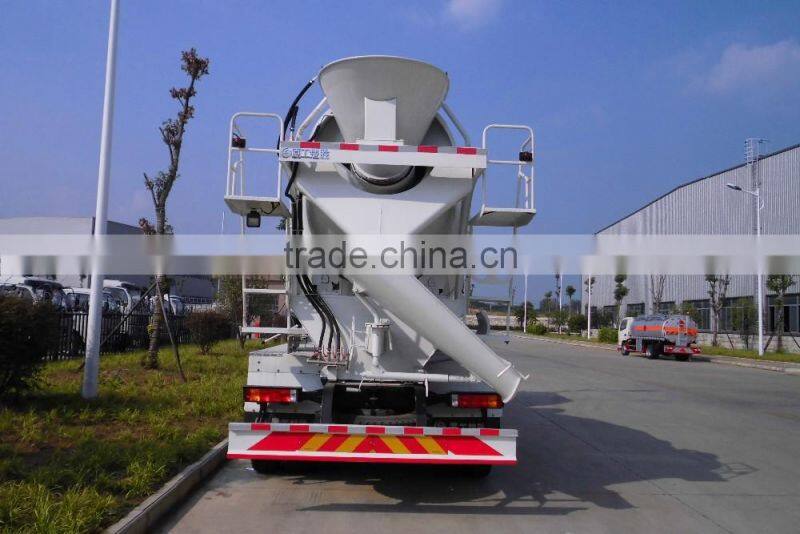

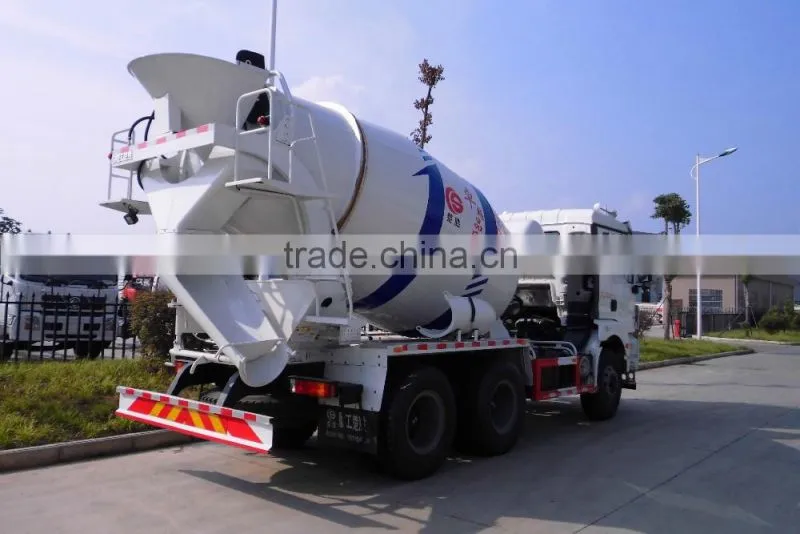

8~10cbm SHACMAN F3000 concrete mixing truck for sale

Main specifications

Product model,name

SX5256GJBDR364(F3000)  Concrete mixer truck

Gross weight(Kg)

25000

Drive type

6 x 4

Payload(Kg)

12555,12490

Overall demension(mm)

9060×2500×3950

Curb weight(Kg)

12315

Cab seats(man)

2,3

Approach/departure angle(°)

28/18

Front/rear hang(mm)

1525/2560

Number of axles

3

Wheelbase(mm)

3575+1400

Axle load(Kg)

7000/18000

Max speed(Km/h)

77

Chassis specifications

Chassis model

SX5256GJBDR364

Manufacture

Shaanxi Automobile Group Co., Ltd.

 Brand name

SHACMAN

Overall dimension(mm)

8575×2495×3270

Tire specification

12.00R20

Tires No.

10

Steel spring number

10/12

Front track(mm)

2036

Fuel type

Diesel

Rear track(mm)

1860/1860

Emission standard

Euro IV

Transmission

9 forward gear(9JS135)

Cabin

Flat belt sleeper, Luxury interior and Instrument bar, with automatic constant temperature air conditioning .

Engine model

Engine manufacutre

Displacement(ml)

Power(kw)

WP10.300E40

Weichai Power Co., Ltd

9726

221

WP10.336E40

Weichai Power Co., Ltd

9726

247

Concrete mixer truck performance

Tank volume(m³)

8 ~10CBM

Material of tank

Q345

Pump

Import

Motor

Import

Reducer

Import

Surplus ratio

≤1.0%

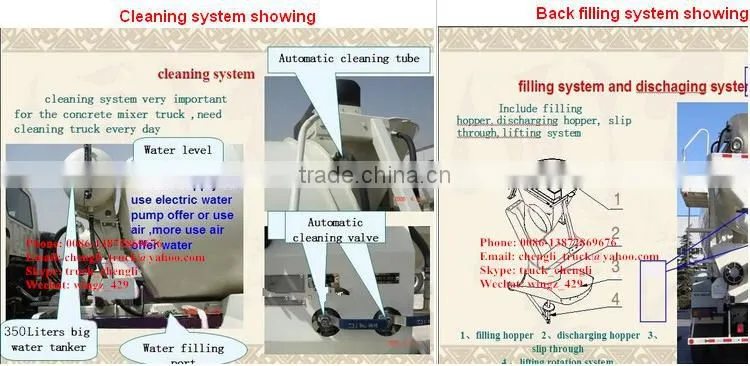

Water tank volume(L)

350L

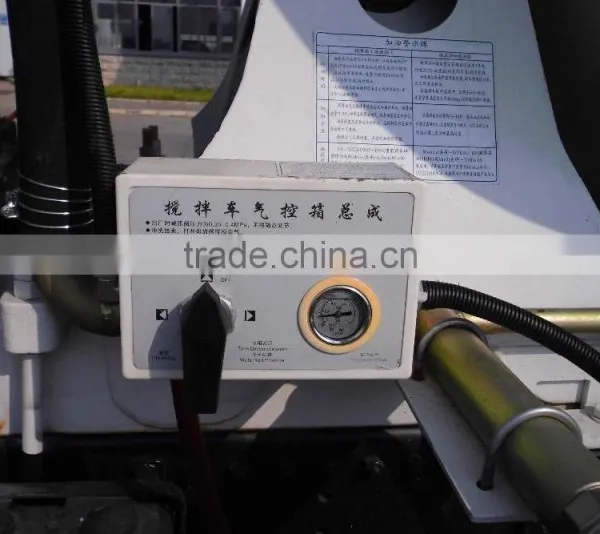

The supplied water method

Pneumatic

Concrete mixer truck features

This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.
