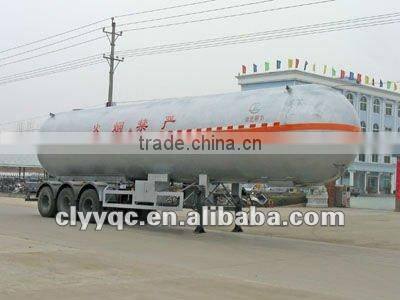

China 3axle tanker trailer 56m3 propane trailers NEW!

Specifications

China 3axle tanker trailer 56m3 propane trailers NEW!
1Factory direct sale, best price
2Certificate ISO9001
3loading 56m3

China 3axle tanker trailer 56m3 propane trailers NEW!

factory direct sale,best price

1. Certificate ISO9001

2.3axle,12wheels

3.loading capacity 56m3 (28T)

4.tyre 12.00-R20

4.new design, heavy duty, more reliable,



FEATURE&FUNCTION :

Propane design pressure:1.77Mpa



Design temperature:50°C

Filling coefficient:0.42

Corrosion allowance:1mm

Isobutane design pressure:0.79Mpa

Dimethyl ether design pressure:1.19Mpa

Propylene, liquid ammonia design pressure:2.16Mpa



1, It is small occupied area and convenient to operating and maintaining.

2, It is the most convenient way for load, transportation and storage.

3, It is of high grade of safety.

4, It can help you to save a lot of transportation cost.

5, It is your first choice for liquid object and small amount product transportation.

product image:

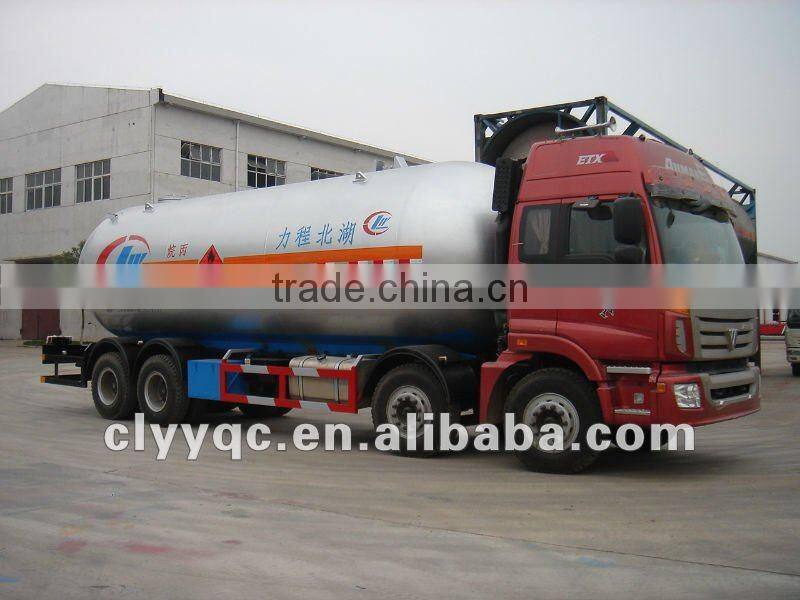

 lpg truck

 lpg truck



Main parameter

Vehicle model	CLW9406GYQ LPG TANK SEMI-TRAILER
Overall size (mm)	12640×2490×3980	GVW(Kg)	40000
Tank size(mm)	××	Rated contained mass (Kg)	27440
approach/departure angle	-/25	Mass in working order(Kg)	12560
Front /rear hanging(mm)	-/1405	Maximum speed (km/h)
Chassis model		Fact cubage(m3)	56.0
Engine model	Engine manufacturers	Engine capacity	power
Fuel type		Traction system
Shaft number	3	Tire number	12
wheelbase	6890+1310+1310	Tire specification	11R22.5,12R22.5
Axle-load	-/24000	Front wheelspan	-
Spring pieces	-/7/7/7	Back wheelspan	1840/1840/1840
warranty	12 months, from the date of supply



The picture and parameter mentioned above is only for reference. The Specific product will be  produced according to your order.





For more information about the delivery, warranty,payment,more specific details , please don't hesitate to contact with us!
