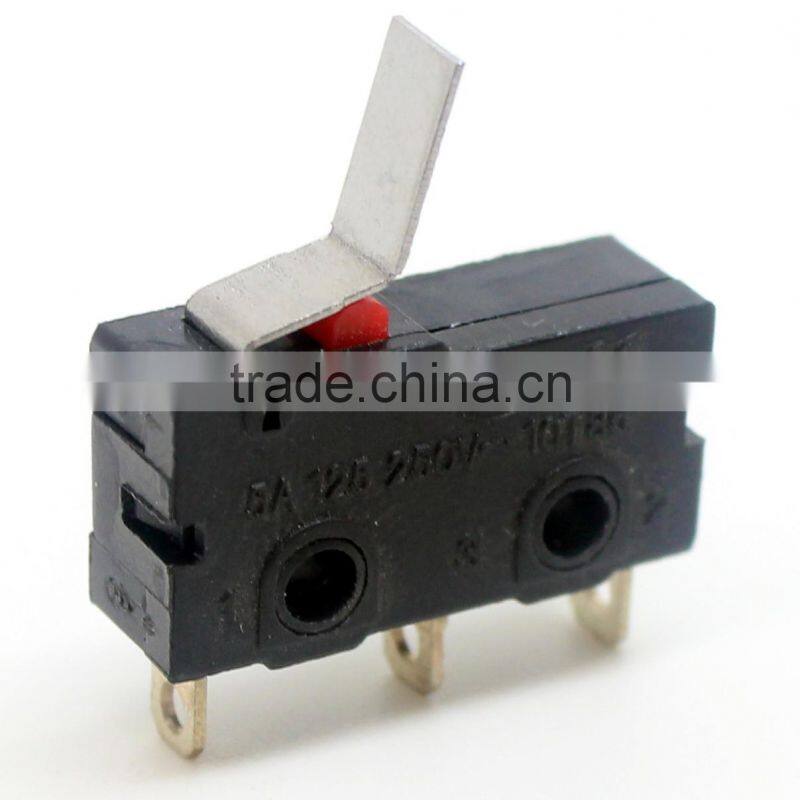

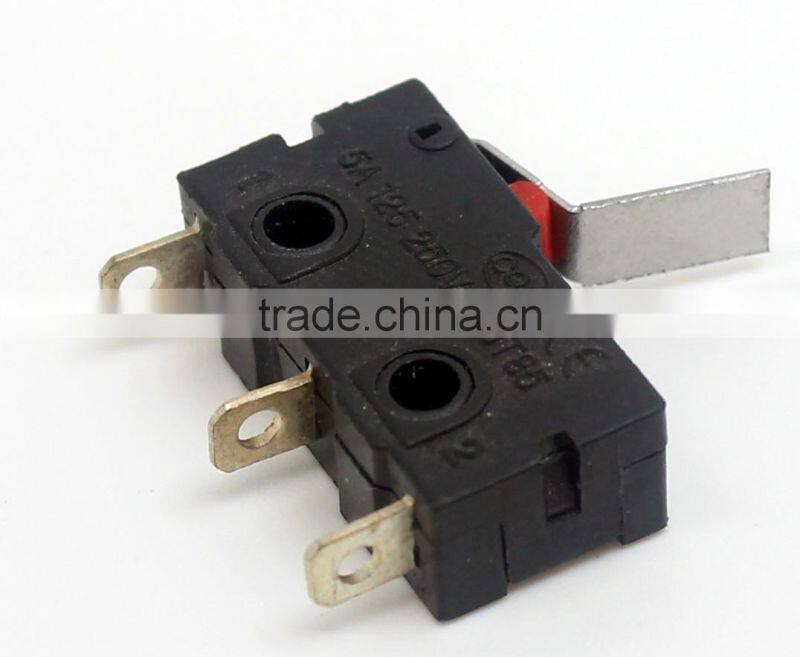

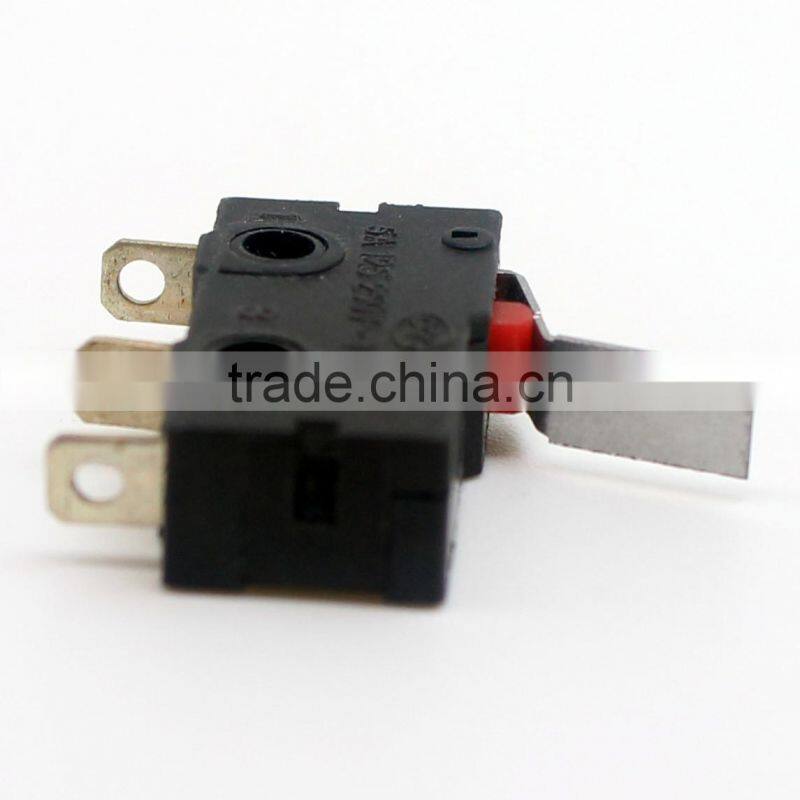

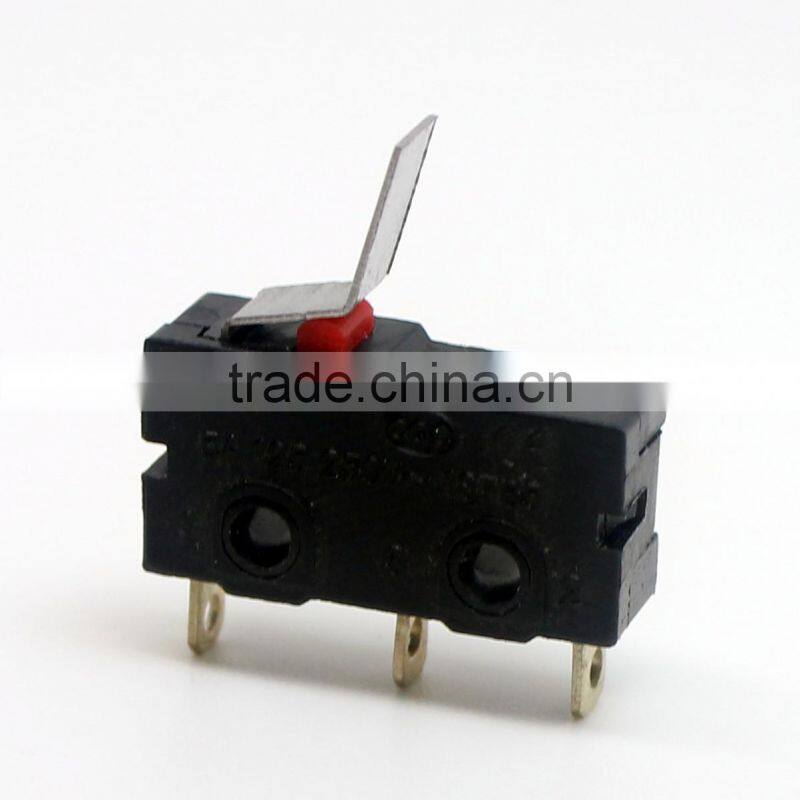

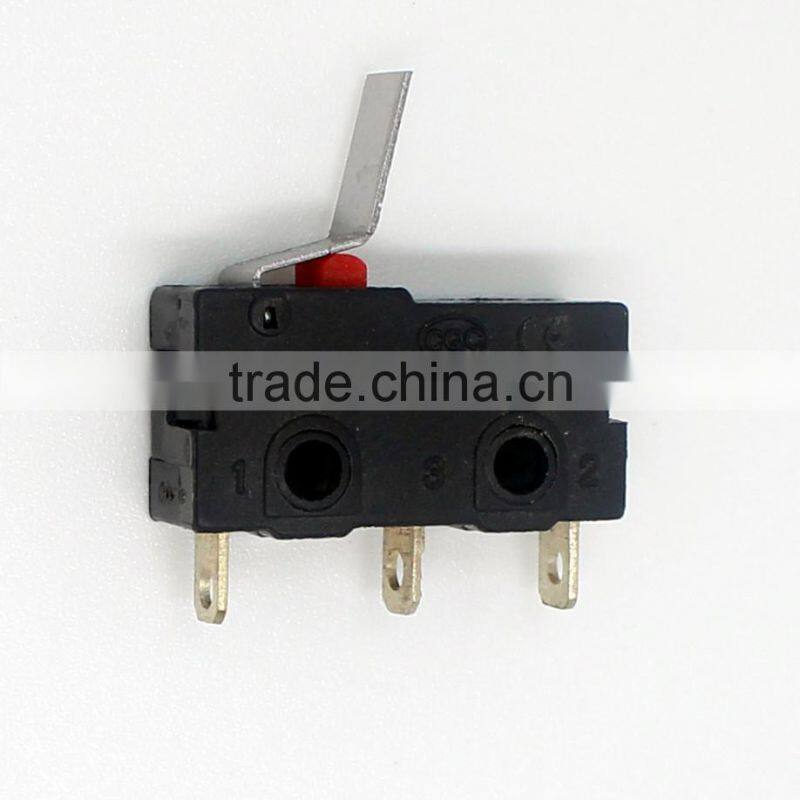

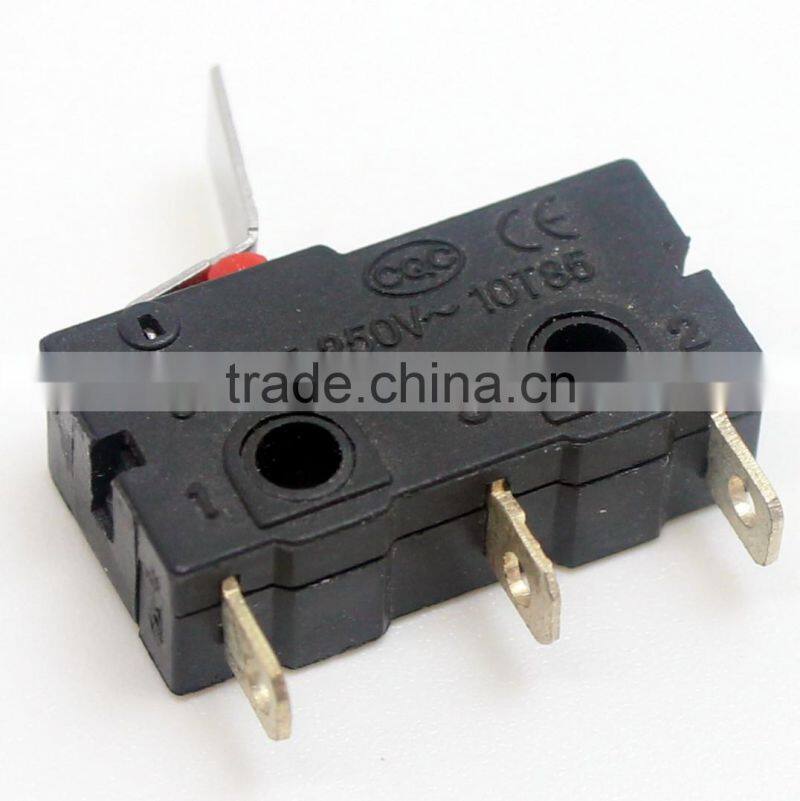

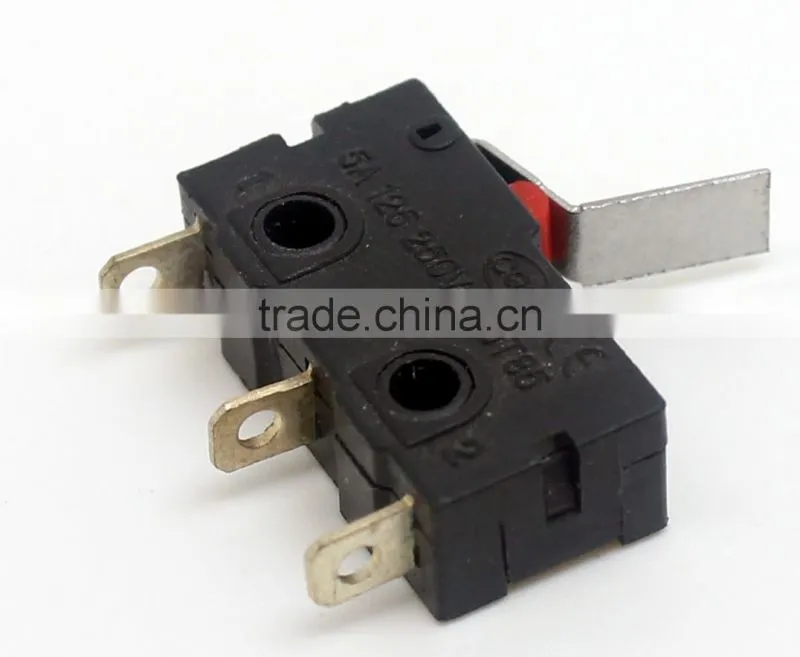

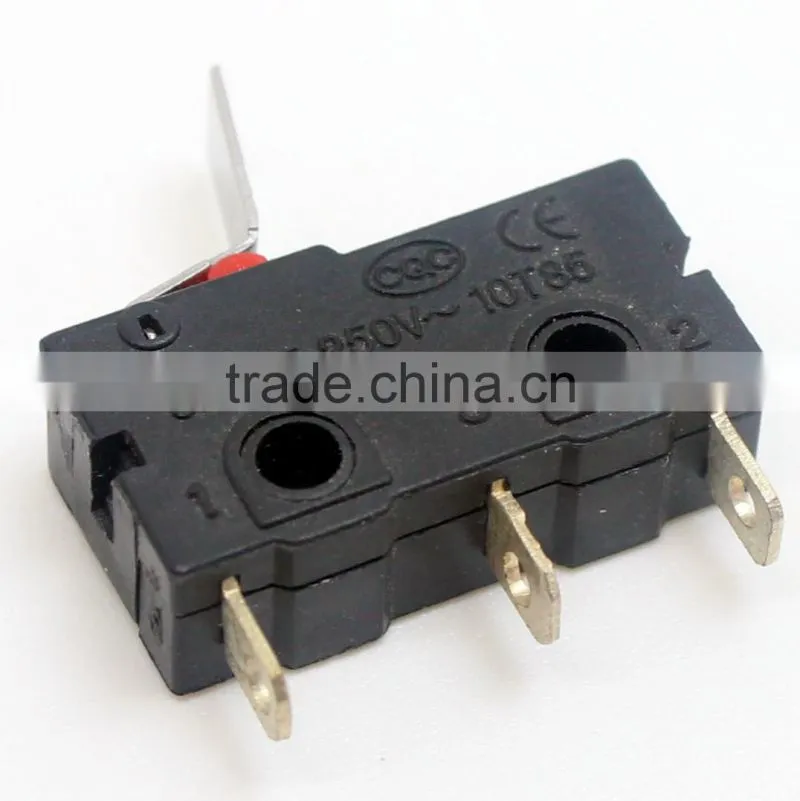

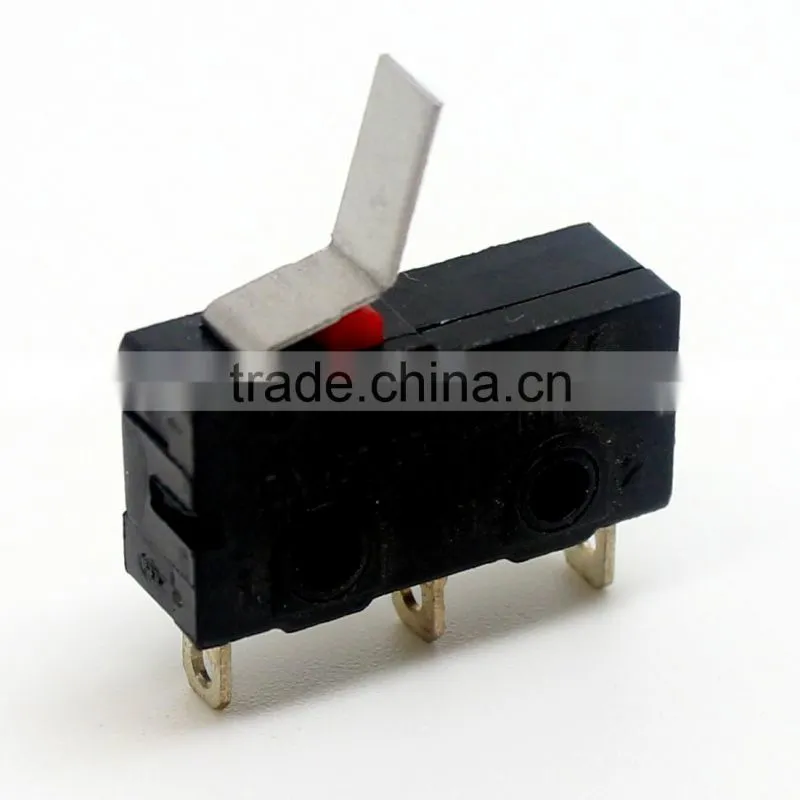

Microswitches switches Kw4-ZLF

Specifications

microswitches switches
1.KW4-ZLF
2.5A,125/250VAC 3A 125/250VAC
3.100,000 cycles
4.Certification:CE,CQC

Microswitches switches Kw4-ZLF

microswitches switches
1.KW4-ZLF
2.5A,125/250VAC   3A 125/250VAC
3.100,000 cycles
4.Certification:CE,CQC



• The Main Thchnology Performane

Ratings of types of micro switch	5A 125VAC /250VAC
Insultion Strength	>=100 MΩ
Contact Resistant	<=100 MΩ
Test Voltage	>=1000 VAC/5S
Electrical Life	10,000 Cycles
Temperature	T85
Operating Force	<=1.5 N
Operrating Position	9.4±0.5 mm





Item Type		10A. 5A . 3A/125, 250VAC (resistive load)
Allowable operating speed		0.1mm-1m/secs (pin plunger type )
Allowable operating frequency	Mechanical	400times/min
	Electrical	30times/min
Insulation resistance		Above the 100MΩ (use the DC500V insulation resistance test)
Contact resistance (initial value )		OF 1.4N type under 30mΩ ; OF 0.49N type under 50 mΩ
Vibration resistance Malfunction		10-55HZ double amplitude 1.5mm (contact gap is less than 1ms)
Shock resistance		OF 1.4N type max 300m/s2; OF 0.49N type max 200m/s2
Life	Mechanical life	30,000,000times above(60times/min)
	Electrical life	10 A 50,000 times above; 5A /3A 200,000 times above(30times/min)
Ambient temperature/humidity		-25~+85(with no icing) Under the 85%RH (+5~35)







• Application

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.



• Others

            Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your

            new inquiry ASAP.

            Any questions about more items, please feel free to contact us.

            We are sincerely looking forward to establish cooperative relationship with you.

            Free sample is available !

            If you need any parts, please kindly send us your drawings or sample for quotation.

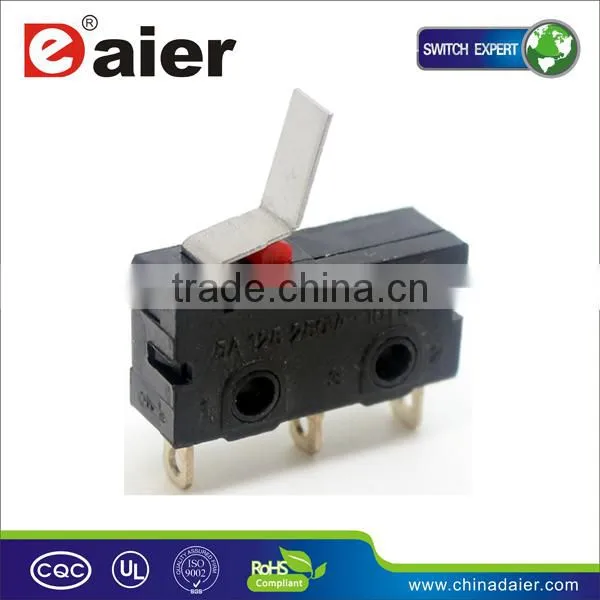

• PRODUCT  SHOW
