Home > Products > Push Button Switch > PBS-29 27mm 16A 250VAC push button with micro switch
PBS-29 27mm 16A 250VAC push button with micro switch
- 10000000 Piece / Pieces per Month
- Ningbo Wenzhou Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DAIER | |
| Model Number | PBS-29 | Protection Level | IP40 | |
| Max. Current | 16A | Max. Voltage | 250VAC |
Product Description
TECHNICAL DATASHEET
Product:
PBS-29 27mm 16A 250VAC push button with micro switch
Brief:
1. CE,Rohs,CQC
2. 10 years' manufacture
3. Lowest price, 8 years' exporting
Specification:
| Ambient temperature | -10°C~+85°C |
| Contact resistance | < 20MΩ |
| Insulation resistance | >500VDC 100MΩ Minute |
| Withstand voltage | >1000VAC, 1 Minute |
| Operating Temperature | -25°C~+85°C |
| Mechanical life | >50000 CYCLES |
| Electrical life | >10000 CYCLES |
Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

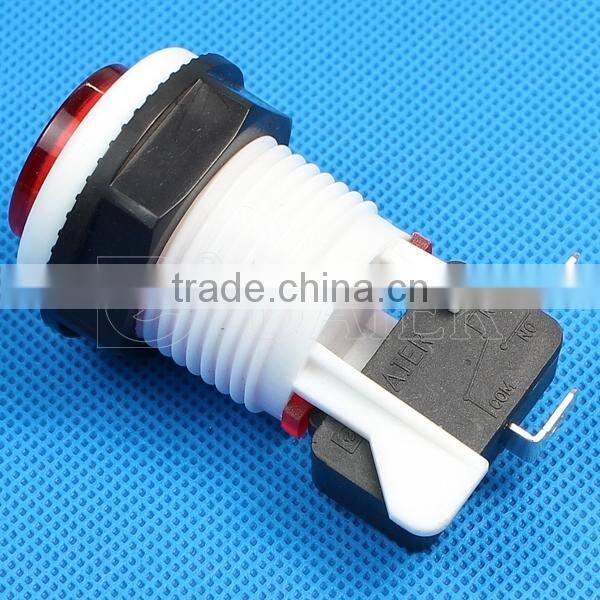

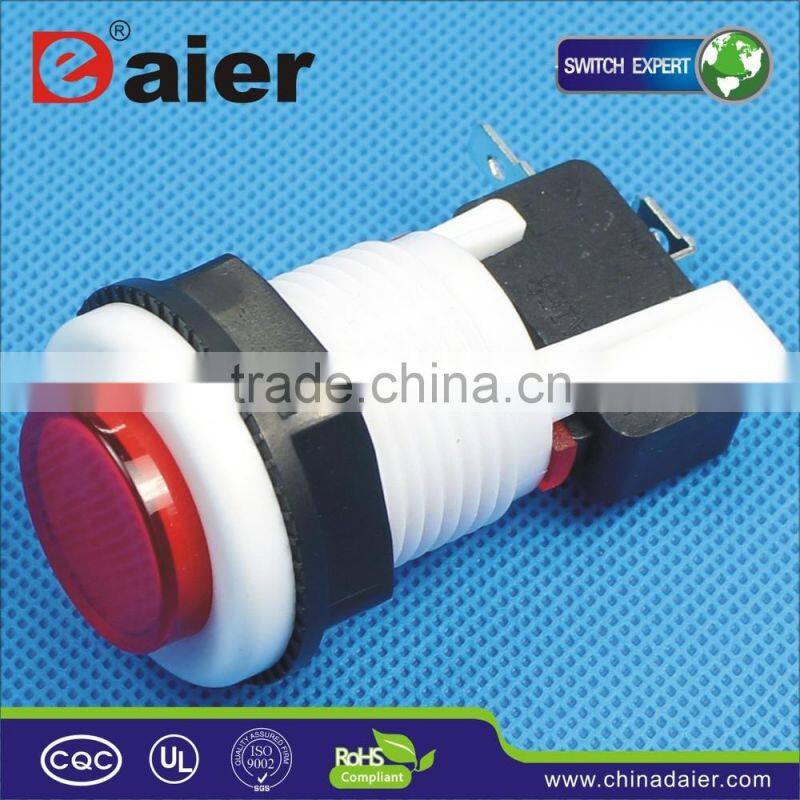

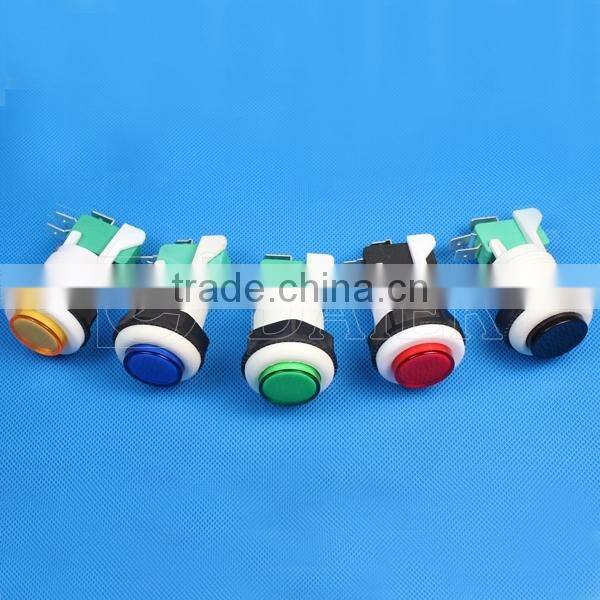

PRODUCT SHOW
CERTIFICATIONS
PRODUCING DEPARTMENTS
PAYMENT AND SHIPMENT
Payment: Paypal,T/T,Westernunion,MoneyGram ,or other method.
Shipment: by sea, air, DHL, UPS,TNT, FEDEX and so on.
---We often ship item in 5 business days.
ABOUT US
Daier Electronics Co.,ltd is a Global leading professional manufacturer of electromechanical switches in China. We are engaged in producing 9 categories and about 5,000 models of push button switches, rocker switches, micro switches and etc.
FEEDBACK We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback .
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
CONTACT US
Contact: SANDY
TEL:0577-61727677-8010
MAIL: sales(at)
SKYPE:sandy.tao79
OUR WEBSITE:
Contact Us
- Yueqing Daier Electron Co., Ltd.
- Contact nameSandy Ye Chat Now
- Phone86-577-27870727
- AddressXirendang Industrial Zone, Liushi Town
