Metal plate(sheet) 4 rollers bending machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port China port
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	TIMAC	Model Number:	HFR-40x2500, HFR-65x3000, ...	Machine Type:	Roller-Bending Machine
Raw Material:	Sheet / Plate Rolling	Material / Metal Processed:	Carbon Steel	Power:	Hydraulic
Automation:	Automatic

Product Description

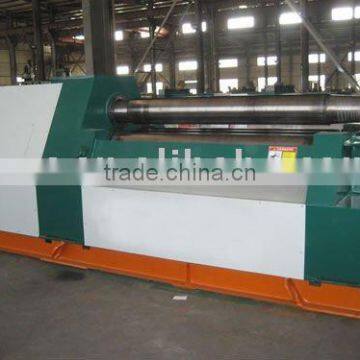

Metal plate(sheet) 4 rollers benging machine

1. This machine is four rollers structure, the upper roller is the main driving roller, providing torque for plate rolling through the mesh between output gears of decelerator and upper roller gears;

2. Bottom roller make up down moving through the press of the piston from the oil of hydraulic tank, to clamp the plate, called hydraulic transmission.

3. There is one side roller beside each side of the bottom roller, which make the inclinable moving along with the stand guideways, through the drive of leadscrew, screw nuts, worm and worm gears.

4. The advantage of this machine is can realize plate head pre-bending and plate rolling on the same machine.

Model	HFR-35x2500	HFR-40x2500	HFR-45x2500	HFR-35x3000	HFR-45x3000	HFR-55x2500	HFR-55x3000	HFR-65x3000
Max.plate thinkness (mm)	35	40	45	35	45	55	55	65
Max.plate width (mm)	2500	2500	2500	3000	3000	2500	3000	3000
Yield limit of plate (Mpa)	245	245	245	245	245	245	245	245
Rolling speed (m/min)	4	4	4	4	4	4	4	4
Fully loaded minimum diameter (mm)	1200	1400	1600	1200	1600	2000	2000	2400
Upper roller diameter(mm)	480	500	530	500	560	600	620	670
Down roller diameter(mm)	400	450	480	450	500	550	560	600
Side roller diameter(mm)	420	380	450	380	450	500	500	550
Max. travel of side roller(mm)	420	380	450	380	450	500	500	550
Side roller changes speed (m/min)	80	80	80	80	80	78	78	78
Main motor(kw)	45	45	63	45	63	75	75	110
