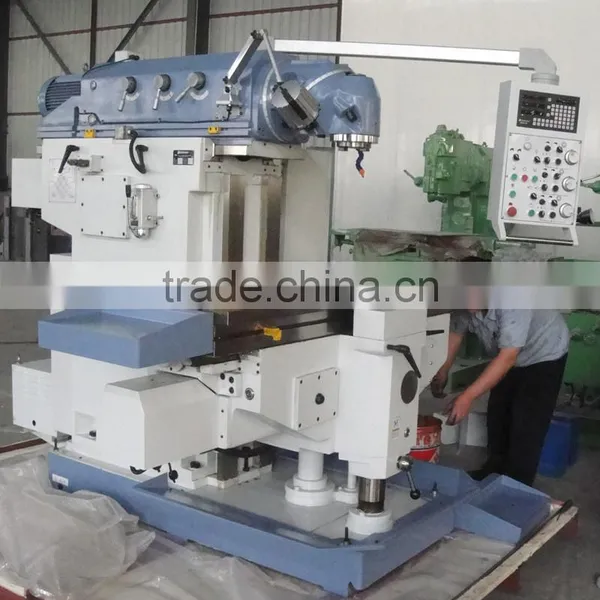

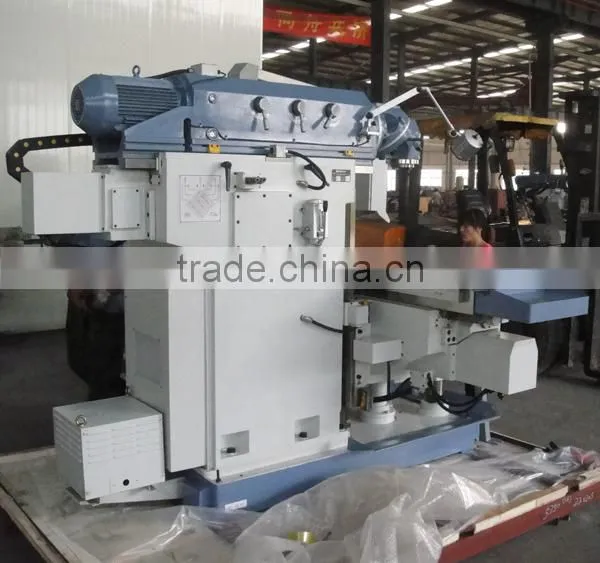

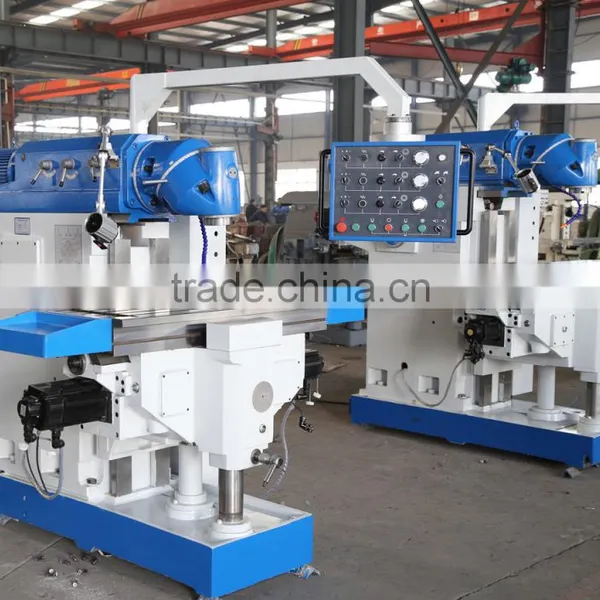

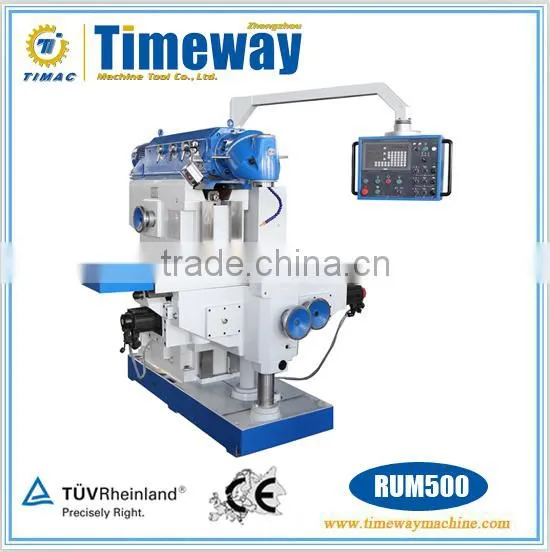

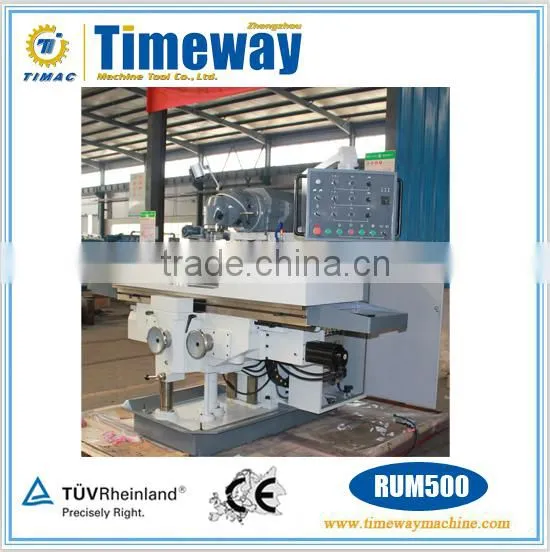

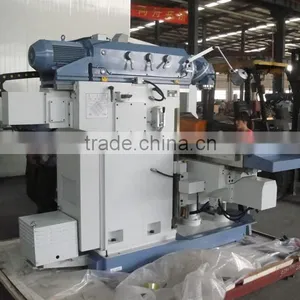

Ram-type Milling Machine RUM500 Servo

FOB Price

USD $19,500 - $23,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Ram type Milling Machine RUM500

Key Feature:

• Extra large work table and wide 3-axis travel ranges;

• Stepless variable feed settings & rapid feed driven by Powerful servo motors on each axes;

• Ball screw in all axis providing smooth and accurate Operation;

• Universal head can swivel to any position within 360°;

• Dovetail guideway in X-axis, rectangular in Y & Z-axis.

Technical Specification:

Model	RUM460	RUM500
Table size (W×L)	460×1235mm	500×1600mm
Table travel (X/Y/Z)	900×650×450mm	1200×700×500mm
Table t-slots(No./Width/Pitch)	5-18-80mm	5-18-80mm
Max. loading of worktable	800kg	1800kg
Spindle taper	ISO40	ISO50
Spindle speed range	30-2050r.p.m (27steps)	30-2050r.p.m (27steps)
Swivel angle of milling head	360°	360°
Table longitudinal & cross feed (X/Y)	10-1000mm/min	10-1000mm/min
Table vertical feed (Z)	6-640mm/min	5-500mm/min
Table rapid speed (X/Y/Z)	2200/2200/1100mm/min	2200/2200/1100mm/min
Distance spindle - table surface	32-482mm	50-550mm
Distance spindle - column	47-697mm	28-728mm
Main motor power	5.5kw	7.5kw
Feed motor	AC servo motor X/Y:15NM; Z: 18NM
Overall dimensions (L×W×H)	1835×2362×2090mm	2625×2460×2080mm
Machine weight	4000kg	5000kg
Price (FOB China)

Standard Configuration:

Universal swivel head, Electronic hand wheel, Central lubrication, LED Work lamp, Cooling system, Draw bar

Operating tools, Operator manual

Options & Extra Cost:

3-axis SINO D.R.O, 58pcs clamping kit, Machine vise, Dividing head, Rotary table

Packaging & Shipping

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size: 1.9 x 2.4 x 2.1M N.W./G.W.: 4000/4250kg

Container loaded: 2 sets / 20'GP
