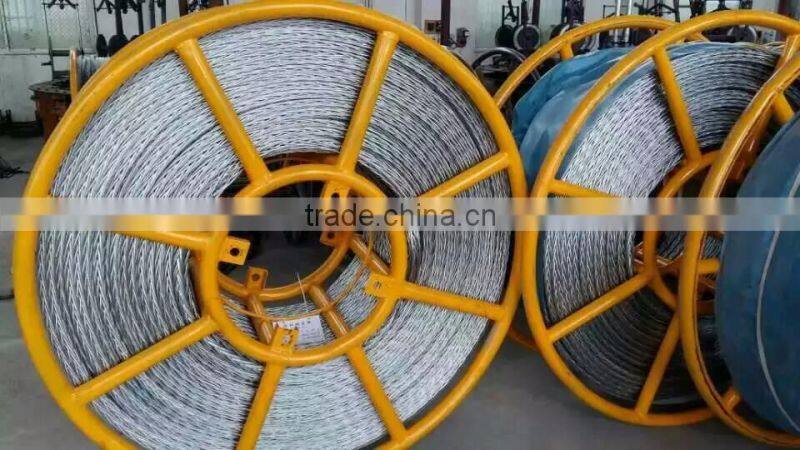

22mm 12 Strands 320kN Anti twist Wire Rope Overhead for Transmission Line Stringing Machine

FOB Price

USD $0.5 - $3 / Meter

500 Meters(Min.Order)

Supply Ability 10000 Meter / Meters per Month
Port SHANGHAI
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Steel Grade:	wire	Standard:	AISI, ASTM, BS, DIN, GB, JIS	Wire Gauge:	7-15mm
Place of Origin:	Jiangsu, China	Type:	Galvanized	Application:	Other, Construction, Conductor Stringing Rope
Alloy Or Not:	Is Alloy	Special Use:	Free Cutting Steel	Model Number:	Four square
Brand Name:	XINYA

Product Description

22mm 12 Strands 320kN Anti twist Wire Rope Overhead for Transmission Line Stringing Machine

Quick details:

Size available: 9~30mm
6 Squares 12 Strands
Transmission Line Stringing Accessories

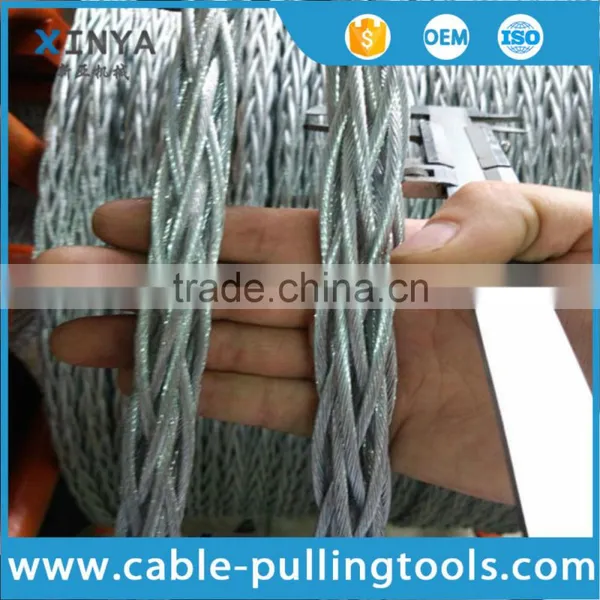

Anti-twisting Braided Steel Wire Rope
Normal Diameter: 18mm
Breakage load: 210kN
Length: 1000m

Description
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.

Item no.	Normal Diameter (mm)	Structure	Breakage tension(kN)	Standard Length (m)	Diameter of spool (mm)	Total weight (kgs)
YL9-12x19W	9	12 Strands	55	1000	850	294
YL10-12x19W	10	12 Strands	55	1000	850
YL11-12x19W	11	12 Strands	80	1000	1000	454
YL13-12x19W	13	12 Strands	120	1000	1100	642
YL16-12x19W	16	12 Strands	158	1000	1250	886
YL18-12x19W	18	12 Strands	210	1000	1400	1154
YL20-12x29Fi	20	12 Strands	250	1000	1400	1394
YL22-12X29Fi	22	12 Strands	320	1000	1400	1258
YL24-12x29Fi	24	12 Strands	360	800	1440	1474
YL28-12x29Fi	28	12 Strands	480	500	1600
YL30-12x29Fi	30	12 Strands	540	500	1600
YL20-18x19W	20	18 Strands	300	1000	1440	1368
YL22-18X29Fi	22	18 Strands	389	800	1440
YL24-18x29Fi	24	18 Strands	440	800	1440
YL28-18x29Fi	28	18 Strands	580	500	1600	1655
YL30-18x29Fi	30	18 Strands	658	500	1600	1900
