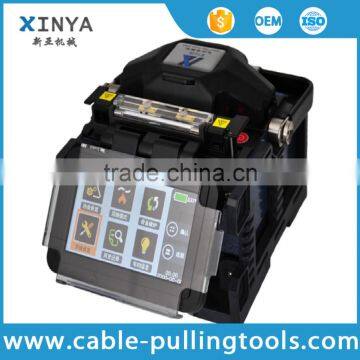

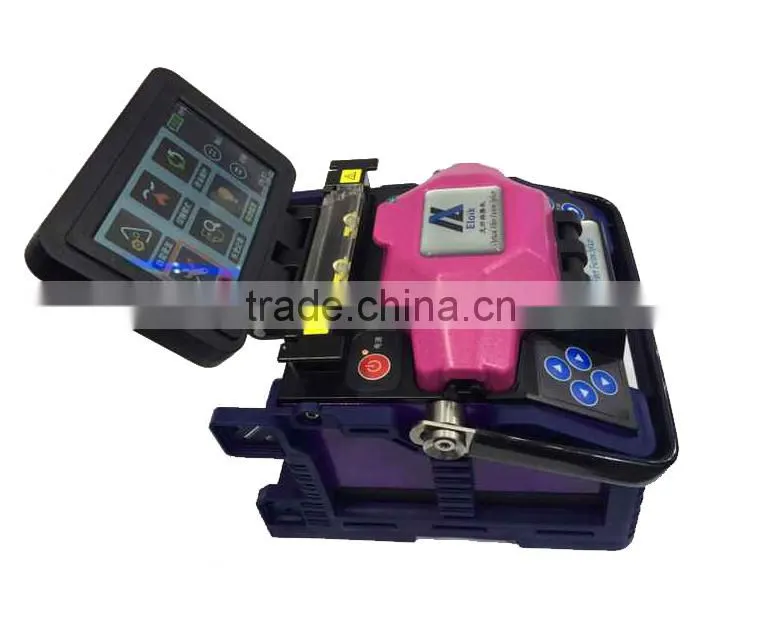

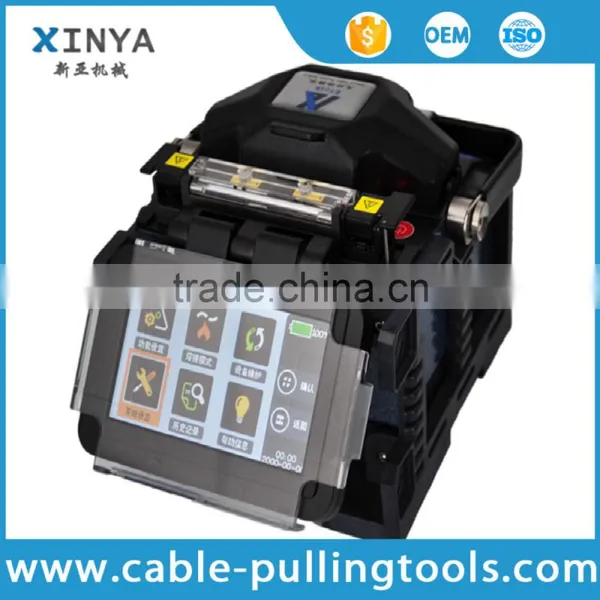

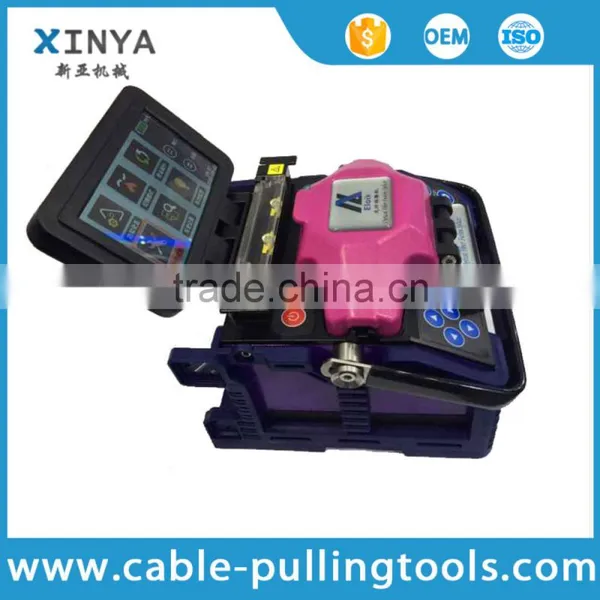

Optical Fiber Fusion Splicer ALK-80 Fiber optic splicing machine

Applicable fiber Type

SM, MM, DS, NZDS

Applicable fiber Count

Single

Applicable diber diameter

Cladding diameter of 80-125μm, coating diameter 100~1000μm

Splice Mode

Stored 40 groups, 80 groups of user-defined

Average splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04Db(NZDS)

Return Loss

More than 60dB

Connecting time

9sec (typical time)

Splice loss evaluation

Have

Tensile test

2N

Screen

4.3inch color LCD, support Chinese and English display

Optical magnification

X/Y:115 times, X,or Y: 230 times

Power Supply

11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply

Battery

Typical Operating 220(splice/ heat shrink/thermal stripping) on a single

charge 3h, can be resued 500 times

Maximum storage

 5000 set of the latest record storage

Data interface

USB2.0

Operating environment

Altitude 0~5000m, 0 to 95% relative humidity. Temperature -20 oC ~55 oC,

 the maximum wind speed 15 m/s

Storage Conditions

0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,)

 temperature -10 oC ~40 oC(battery)

Weight9

1.89kgs(including battery)

Corrosion resistance

Device components, spare parts and materials used meet corrosion

requirements, fluid contamination from erosion

Size

166D X 140W X 130H (mm)

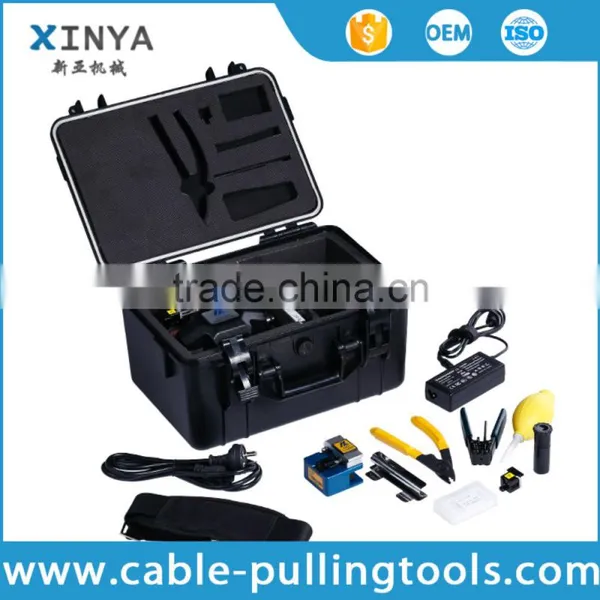

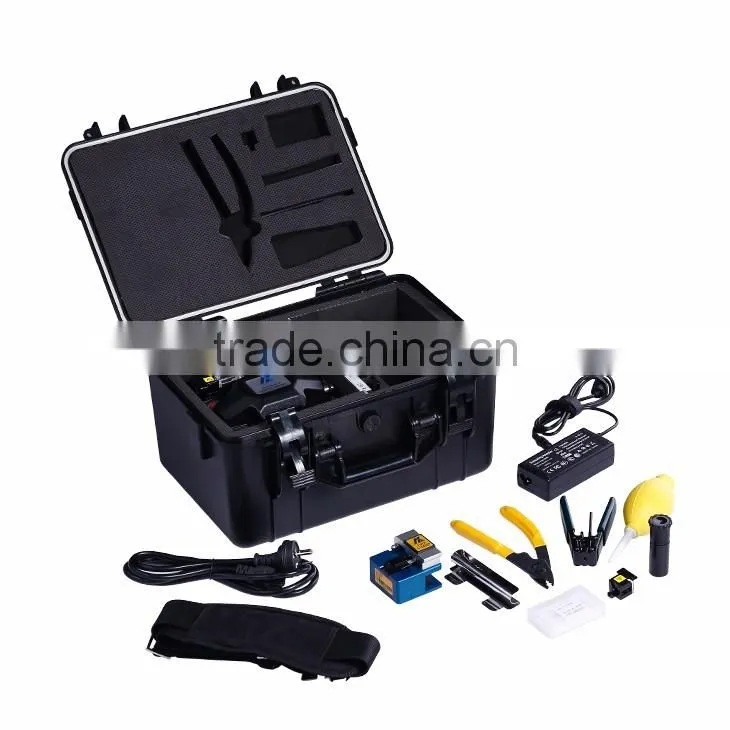

Packing

New waterproof, drop, more than can be heavy 300kgs

For fiber optic cable diameter

250 μm,900 μm,2-3mm

Apply heat shrinkable sleeve length

65mm,45mm,40mm(FP-03)

Heating time

50s(Can be customized)

heating temperature

130-180C (Can be customized)
