V Shaped Cable Rollers With Zinc plate finish With Steel Roller 60mm Diameter
- 100 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
Draw-off Roller Cable Roller With Aluminium Roller Body Length 900 mm Galvanized
-
Aerial Cable Stringing Roller With Hook Cable Pulley Overhead Fiber Optic Cable Sheave
-
10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley
-
Manhole Cable Rollers Triple Cable Pulley With Nylon Wheel 140x160mm
-
Underground Cable Installation Tools Bell Mouth Roller With Tube Diameter 150mm
-
25KN Cable Pulling Pulley Stringing Blocks With Tandem Sheaves Nylon Wheel
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | CRV | Usage | Other, stringing |
Product Description

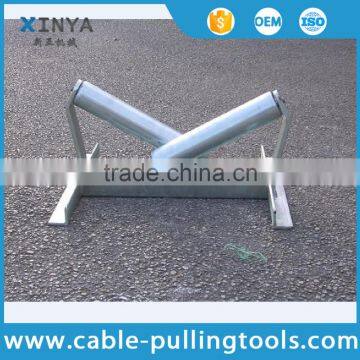

V Shaped Cable Rollers With Zinc plate finish With Steel Roller 60mm Diameter
We are a reliable Manufacturer, Supplier and Exporter of V Shaped Cable Rollers. The V style Cable Roller leads the cable from the drum into the trench. Their design is such that the cable is centralized prior to it being fed into the trench. V Shaped Cable Rollers can also be used as a pipe Roller also. We endeavor to make the specific V Shaped Cable Rollers to suit individuals requirements. Sizes can be reduced/extended to suit drum, trench or pipe dimensions/weight.
Item Code: CRV1
| 1 | Heavy Steel section construction |
| 2 | Can be used as a Pipe Roller or Cable Roller |
| 3 | Steel Roller Diameter : 60mm |
| 4 | Sealed roller bearings fitted |
| 5 | Incorporates spring loaded shaft for easy replacement |
| 6 | Zinc plate finish |
| 7 | Sizes : 850mm × 600mm × 440mm [L × W × H] |

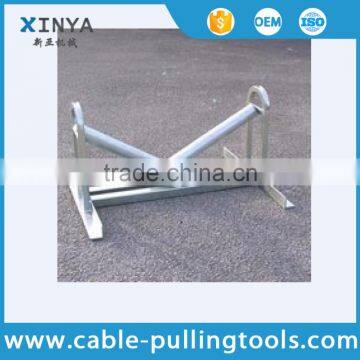

Item Code: CRV2
| 1 | Sizes : 500mm × 400mm × 250mm [L × W × H] |
| 2 | Heavy Steel section construction |
| 3 | Can be used as a Pipe Roller or Cable Roller |
| 4 | Steel Roller Diameter : 60mm |
| 5 | Zinc plate finish |
Please tell us the following information in your enquiry:
1. Range (mm) ?
2. Rated Load( KN) ?
3. specifications(mm) ?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
