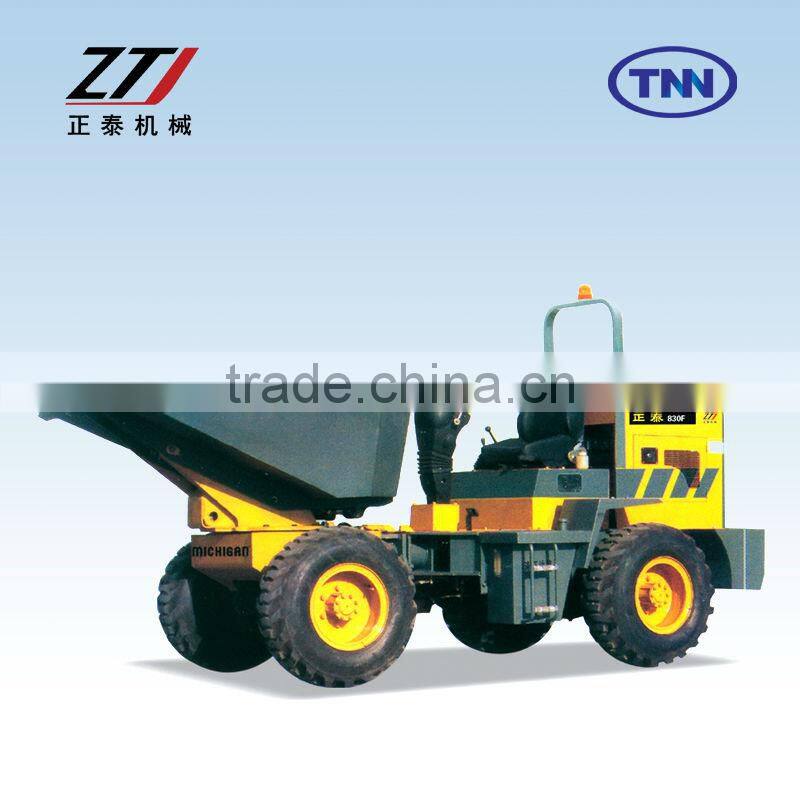

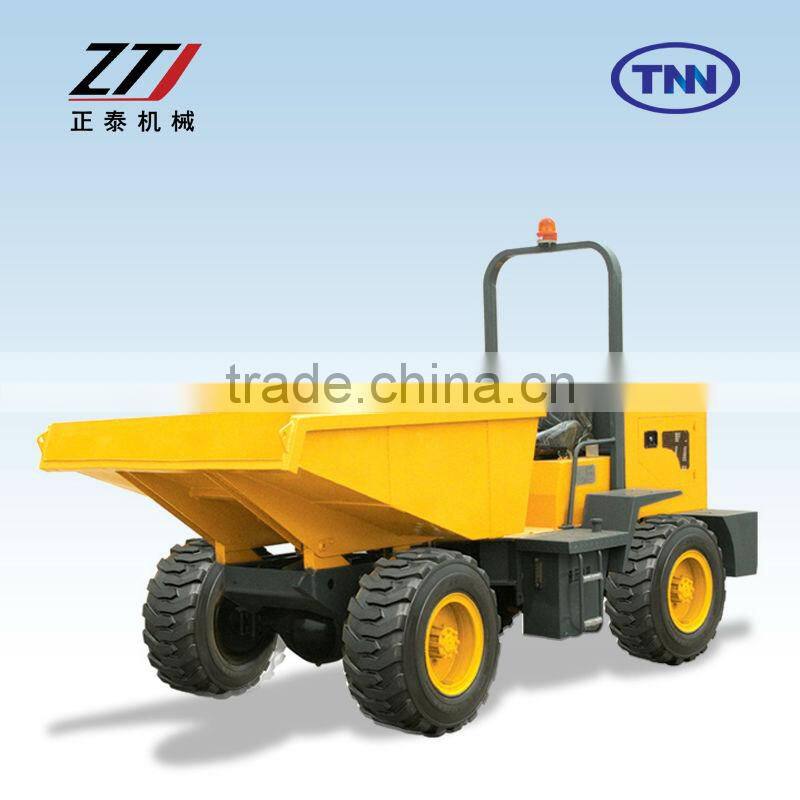

#13-3 Low Stock Best Front Dumper All Over the World

ZT815

ZT830

Without rotate
function

With the function
of rotating

With the function
of rotating

rated load(kg)

1500

3000

The paperback bucket
capacity(m³)

0.73

0.73

1.1

Pile tip bucket
capacity(m³)

0.96

1.07

1.5

operating weight(kg)

2100

2200

2200

Max.dump heigh(mm)

315

885

855

Front wheel to
bucket edge(mm)

450

505

670

Side discharge distance(mm)

110

220

Discharging Angle(°)

45

40

40

steering angle(°)

±27.5

±35

Rear axle swing Angle(°)

±10

±10

Min turning radius(mm)

4890

4250

Max.Grade ability

36°

36°

wheel base(mm)

2000

2000

trade(mm)

1350

1350

Min.ground clearance(mm)

240

240

Drive way

4×4

4×4

Overall dimensions
(l×w×h)mm

3760×1650×1720

3880×1650×1720

3870×1650×1760

travel speed(km/h)

Forward gear I

0~6.5

0~6.5

       II

0~16

0~16

reverse gear   I

0~6.5

0~6.5

       II

0~16

0~16

Engine Model

KM385QB

SL3100ABG

Type

3WD

In line, water cooled, four
stroke, dir.inject

Rated power(kW)

18.4

32

Rated speed(rpm)

2350

2200

transmission model

ZL09A

ZL10

Transmission gear

Forward2reverse2

Forward2reverse2

Drive axle

ZL10C

ZL10C

Tire model

12-16.5

12-16.5

operating oil pump

CBQL-F525/F525-CFH

CB32/32

Priority valve

YXL-F160L

YXL-F160L

Multi-way valve

DL73-E15L-T/OO(AB)

DL73-E15L-T/OO(AB)

Walking valve

ZL15.1

ZL15.1

Hydraulic motor

2K-160

2K-195

Steering gear

BZZ1-315

BZZ1-315

Steering cylinder

2-Φ63×236

2-Φ63×236

Skip bucket cylinder

Φ80×230

Φ80×540

Φ80×540

The system pressure(MPa)

16

16

Brake form

Hydraulic brake drum

Hydraulic brake drum

The voltage(V)

12

12
