Product Details
| Condition: | New | Type: | Vertical | CNC or Not: | Normal |
| Place of Origin: | Liaoning, China | Brand Name: | TNN | Model Number: | C5225-C5280 |
Product Description
Specifications
A. universal lathe machineB. 2 vertical tool heads
C. Max. diameter 8000mm
D. cheapest price
E. professional transportation
good cheap universal double column vertical lathe machine
Brief Introduction:

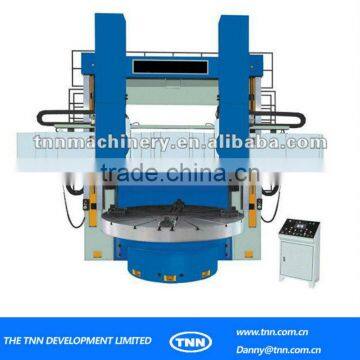

This machine is a kind of universal double column vertical lathe, the machine has two vertical tool heads. It can be used for rough, finish machining excircle, inner bore, end face and internal and external cone, etc.
Specification:
No. | Item | Unit | C5240 | C5225 | C5231 | |
1 | Working table diameter | mm | 3200 | 2250 | 2800 | |
2 | Max. turning diameter | mm | 4000 | 2500 | 3150 | |
3 | Max. job height | mm | 2000 | 1600 | 1600 | |
4 | Max. job weight | t | 20 | 10 | 10 | |
5 | Max. cutting force of tool head | Right tool head | kg | 3500 | 3500 | 3500 |
Left tool head | kg | 3000 | 3000 | 3000 | ||
6 | Max. total cutting force | kg | 6300 | 6300 | 6300 | |
7 | Max. twisting moment of working table | Kg/m | 6300 | 6300 | 6300 | |
8 | Working table variable speed degrees | Degree | 16 | 16 | 16 | |
9 | Working table variable speed range | r/min | 2~63 | 2-63 | 2~63 | |
10 | Feed amount degrees | Degree | 18 | 18 | 18 | |
11 | Feed speed range | mm/min | 0.25~90 | 0.25-90 | 0.25~90 | |
12 | Beam stroke | mm | 1650 | 1250 | 1250 | |
13 | Tool head stroke | Horizontal | mm | 2150 | 1400 | 1730 |
Vertical | mm | 1250 | 1000 | 1000 | ||
14 | Beam moving speed | mm/min | 350 | 350 | 350 | |
15 | Tool head quick moving speed | mm/min | 1560 | 1560 | 1560 | |
16 | Max. rotation degree of tool head | Degree | +-30o | +-30o | +-30o | |
17 | Tool size | mm | 40x50 | 40x50 | 40x50 | |
18 | Main motor power | kw | 55 | 55 | 55 | |
19 | Overall dimension | mm | 6680x5000 x5975 | 5180x4560 x4680 | 5840x5040 x4680 | |
20 | Overall weight | t | 40 | 32 | 36 | |
Note: When the frequency of power supply is 60Hz, all motors speed increased by 20%, namely the working table speed, feed, quick moving and beams speed increased 20%. | ||||||
