Electric collection truck for liquid waste , CE approved
Negotiable
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- Shanghai
- T/T
You May Like
-
Electric mini garbage collecting car, CE approved
-
Electric Garbage Truck with tail gate tipper, 1000kgs loading weight, simple enclosed cab, EG6023XA1
-
Electric industrial vehicle, scissor lifter, 6m lifting height ,EG6060J
-
Electric cargo van, EG6042H ,CE approved ,2 seats
-
electric burden carrier, EG6032H ,CE approved ,2 seats
-
industrial electric carts EG6030H
Product Details
| Condition: | New | Drive Wheel: | 4x2 | Type: | Other, Collection |
| Transmission Type: | Manual | Volume: | 1000 - 3000L | Place of Origin: | Jiangsu, China |
| Brand Name: | Eagle | Model Number: | EG6042XA1 | Certification: | CE |
| Size: | 4500*1500*2455mm |
Product Description

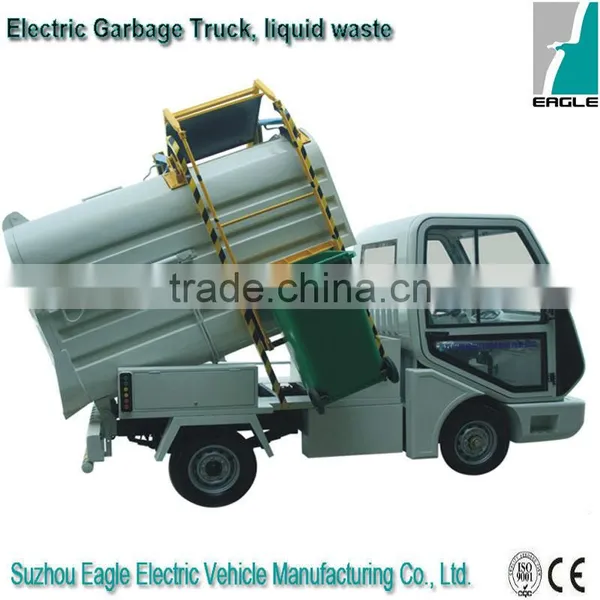

Electric collection truck for liquid waste , CE approved
| Model | EG6042XA1 |
| Description | Liquid water collecting truck |
| System | 72V/6.3KW Series |
| Key Components | |
| Battery | 12xT105(185Ah@5hr rate) |
| Motor | 6.3KW Chinese motor for 60minutes |
| Controller | Curtis 1209 (400A@2minutes) |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | |
| Max. speed(km/h) | |
| Minimum turning radius (m) | |
| Max. climbing ability (loaded) | |
| Max. movement after brake at speed of 20km/h | |
| Max. loading weight | 2000kgs |
| Net weight | |
| Dimensions | |
| Overall dimensions (mm) | |
| Rear garbage box dimension(mm) | |
| Volume of rear garbage box(m3) | 2.5 |
| Min. ground clearance (mm) | |
| Wheelbase (mm) | 2000 |
| Front wheel tread (mm) | 1220 |
| Rear wheel tread (mm) | 1220 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |
| Body and Frame | |
| Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass |
| Roof | Fibreglass |
| Cabin | Aluminum frame + glass door |
| Windshield | Laminated glass |
| Seats | With backrest and headrest, sliding |
| Floor | Anti-sliding ruber floor mat |
| Rear garbage bin | PP+PE, thickness of 10mm, rear door in Carbon Steel |
| Side rear view mirror | Two pieces per cart |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Seatbelt | 3-point, 2pcs |
| Electric system | |
| Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2 front foglight, 2 taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn. |
| Dashboard | FRP, with voltameter, ammeter, odometer, emergency switch; combined switch, meter indicator |
| Audio System | Radio and MP3 adaptor |
| Speaker | 2pcs |
| Reversing alarm | |
| Switch assembly | Lights switch, horn switch, wiper switch |
| Wiper | 12V, 50W, single arm |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A |
| Heater | Electrical, for defrosting, 250W |
| Diesel, for defrosting, 2KW | |
| Steering and Suspension | |
| Steering system | Recirculating ball steering gear+ steering wheel |
| Electrical power steering system | |
| Brake system | Four wheel hydraulic drum brake+ parking brake |
| Brake assistant | |
| Transmission | Clutch, gear box, transimmison shaft |
| Front suspension | plate spring + hydraulic shock absorber |
| Rear suspension | rear plate spring + hydrualic shock absorber |
| Rear axle | Integrated, Gear ratio 43:8 |
| Wheel & Tyre | 185R14C tubeless tire, 14*5.5 J steel rim |
Color
Packaging & Shipping
Company Information
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
