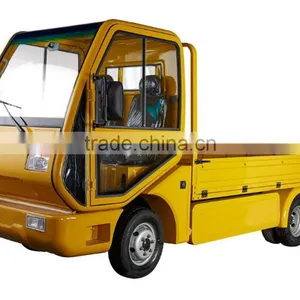

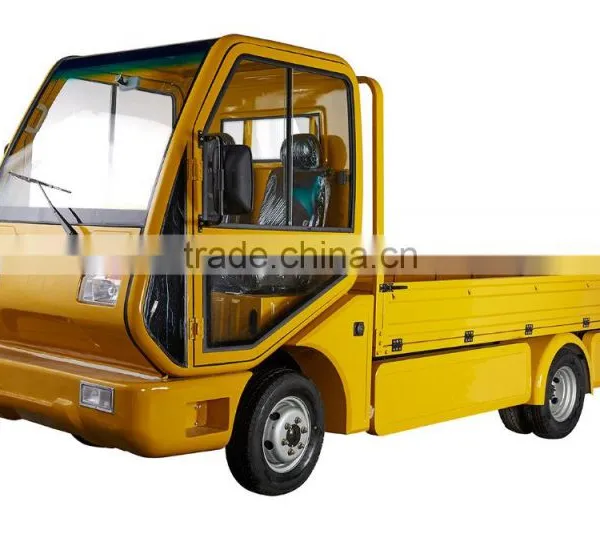

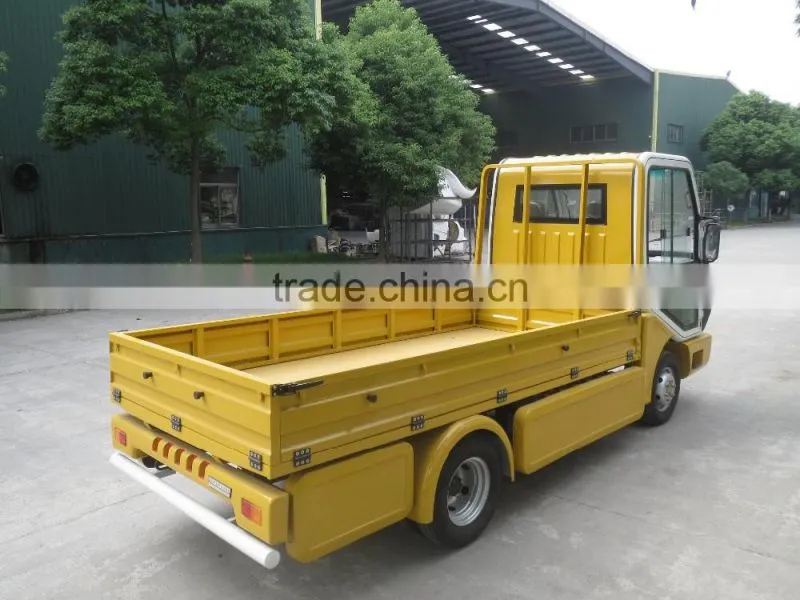

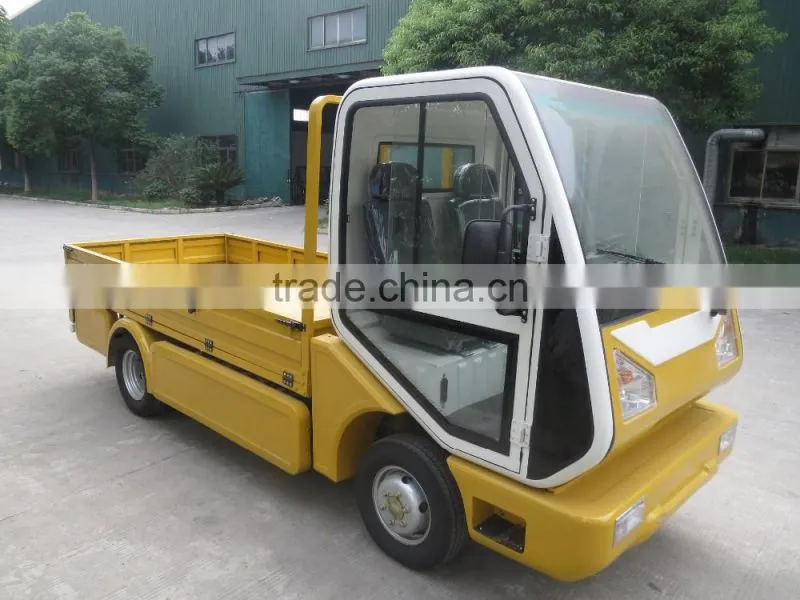

Electric cargo van, EG6042H ,CE approved ,2 seats

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 2000 Unit / Units per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Seats	1 - 2		Fuel Type	Electric
Battery Voltage	48V		Certification	CE

Product Description

Electric cargo van CE approved ,2 seats

--- EG6042H

Model	EG6042H
Battery	12xT105(185Ah@5hr rate)
Motor	6.3KW Chinese motor for 60minutes
Controller	Curtis 1209(400A@2minutes)

Dimensions
Overall dimensions (mm)	4810X1500X2150
Rear cargo bed dimension(mm)	3200X1500X320
Min. ground clearance (mm)	150
Wheelbase (mm)	2600
Front wheel tread (mm)	1280
Rear wheel tread (mm)	1220

Electric system
Lighting system and horn	2 combined front lights(headlight, turning light, position light), 2 front foglight, 2 taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn
Charger	China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A

Steering and Suspension
Steering system	Recirculating ball steering gear+ steering wheel
Brake system	Four wheel hydraulic drum brake+ parking brake
Brake assistant
Transmission	Clutch, gear box, transimmison shaft
Front suspension	plate spring + hydraulic shock absorber
Rear suspension	rear plate spring + hydrualic shock absorber
Rear axle	Integrated
Wheel & Tyre	175R13C tubeless tire, 4J*13 steel rim

Body and Frame
Frame	Welded steel framework with sand blasting+paint treatment
Body	Fibreglass
Roof	Fibreglass
Cabin	Aluminum frame + glass door
Windshield	Laminated glass
Seats	With backrest and headrest, sliding
Floor	Anti-sliding ruber floor mat
Battery sliding system
Side rear view mirror	Two pieces per cart

Performance
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)＊	>42
Max. speed(km/h)	50
Minimum turning radius (m)	6
Max. climbing ability (loaded)	20%
Max. movement after brake at speed of 20km/h	≤NA
Max. loading weight	2000kgs
Net weight	1730kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Packing & Delivery

Our most professional packaging

Transport of large trucks to the seaport

And international transport cooperation

Container loading qty	Assembled
20'ft GP	1
40'ft GP	2
40'HQ	2
