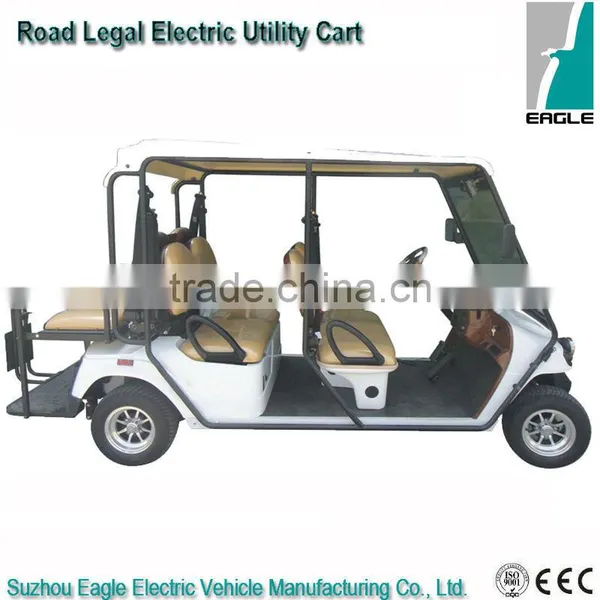

4 seater Electric street legal golf carts, EG2048HSZR
- 2000 Unit / Units per Month
- Shanghai
- T/T
- Street legal golf buggy, electric, 2 seats, EG2028KR, EEC
- 4 seater Road legal electric cart with EEC , EG2048KR
- Electric fire trucks, 1.3 m3 water tank, for emergency fire fighting in closed area, EG6040F
- Electric fire fighting truck, available for installing fire fighting tools, EG6030F
- 2 seater electric buggy with a rear cargo box
- electric mini fire trucks, with water tank, small for narrow place, EG6020F
Product Details
Seats: | 5 - 6 | Fuel Type: | Electric | Battery Voltage: | 48V |
Certification: | CE |
Product Description
Model | EG2048HSZR-01 | EG2048HSZR-02 | EG2048HSZR-04 | |
System | 48V/5KW AC Sepex | 48V/5.3KW Sepex | 48V/5KW AC Sepex | |
Key Components | ||||
Battery | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | |
Motor | 5KW Chinese motor for 60minutes | 5.3KW Chinese motor for 60minutes | 5.3KW Chinese motor | |
Controller | Curtis 1236 (400A@2minutes) | Curtis 1268 (400A@2minutes) | ZAPI ACE2 (400A@2minutes) | |
Performance | ||||
Seating number | 4 | 4 | 4 | |
Range (loaded) based on flat road at a speed of 20km/h (km) | >100 | >80 | >80 | |
Max. speed | 40 | 40 | 40 | |
Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | |
Max. climbing ability (loaded) | 20% | 20% | 20% | |
Max. movement after brake | ≤4m | ≤4m | ≤4m | |
Max. loading weight | 450kgs | 450kgs | 450kgs | |
Net weight | 710kgs | 710kgs | 710kgs | |
Dimensions | ||||
Overall dimensions (mm) | 3710*1200*1850 | |||
Min. ground clearance (mm) | 120 | |||
Wheelbase (mm) | 1700 | |||
Front wheel tread (mm) | 855 | |||
Rear wheel tread (mm) | 975 | |||
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
Body and Frame | ||||
Frame | Welded steel framework with phosphate+electro-coating treatment | |||
Body | PP plastic front body + PP plastic rear body | |||
Roof | Fiberglass | |||
Roof Handle | ||||
Windshield | one-piece Laminated glass | |||
Wiper and water tank | / | |||
Upright and bracket | Carbon Steel, powder coating | |||
3point seat belt | 4 pieces | |||
Large Seats: | ||||
1) backrest and cushion | Rebond seat + artificial leather | |||
2) armrest | Formed | |||
3) plastic seat bottom | ||||
Formed seat&backrest vinyl | exclude the first row of seat cushion and the rear seat cushion | |||
Backrest cover in wood finish | ||||
Floor | rubber | |||
Center storage basket | Large volume | |||
Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||
Dashboard in wood finish | ||||
Steering wheel in wood finish | ||||
Beverage holders | 4 cups drink holders | |||
Glove box | ||||
Glove box door (include two locks) in black plastic | 2 doors per set | |||
Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | |||
Side trim | Aluminum | |||
Score card holder | on steering wheel | |||
Towing bracket | on front of golf car | |||
Side rear view mirror | Two pieces per cart | |||
Battery watering system,48V system | without water supply tool | |||
Manual Pump | water supply tool (other water supply tools are available) | |||
Electric system | ||||
Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||
Reversing alarm | ||||
Meter | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | |||
12V accessory plug | to be mounted on the dashboard | |||
Hour meter | ||||
Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||
Steering and Suspension | ||||
Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
Brake system | 4-wheel hydraulic brake, front disc brake, rear drum brake | |||
4-wheel hydraulic brake + hand brake | ||||
Accelerator | Stepless speed change | |||
Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||
Driving mode | Rear axle two stage deceleration, motor direct driving | |||
Rear axle | Integrated, Gear ratio 10.25:1 | |||
Integrated, Gear ratio 12.49:1(Only for AC ststem) | ||||
Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
