Dongfeng 140 Fire-fighting Vehicle, Water Fire Engine,foam Fire Engine

Dongfeng 140 Fire-fighting Vehicle, Water Fire Engine,foam Fire Engine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Wheel:
4x2
Type:
Other, foam
Transmission Type:
Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Drive Wheel 4x2
Type Other, foam
Transmission Type Manual
Condition New
Emission Standard Euro 2
Fuel Type Diesel
Max. Work Height 60
Size 7000*2500*3400
Place of Origin Hubei, China
Brand Name CLW
Model Number HXF5090GXFPM35

Specifications

Dongfeng 140 Fire-fighting Vehicle
1,Dongfeng Chassis
2.Engine Power:Euro 2
3.water:2000kg
4.foam:1500kg

Dongfeng 140 Fire-fighting Vehicle, water fire engine



Item

unit

parameter

Vehicle model





Chassis model



Dongfeng EQ 1092FJ

Overall dimensions

mm

7000*2500*3400



GVW

kg

Appro×9250

Rated loading capacity

Appro×3500

Mass in working order

Appro×5300

Body internal dimensions

mm

xx

Wheel base

3950

F/R track base

1810/1800

Approach/departure angle

°

30/16

Exhaust/hp

ml/kw

5420/99

Max speed

km/h

90

Tire specification

9.00-20

Engine type

EQ6100-1

Traction system

4x2

Tires number

6

Number of axles

2

Allowable passengers in cab

7

The liquid volume of loading (water)

2000kg

The liquid volume of loading (form)

1500kg

Water pump

BD30 low pressure pump,CB 20.10/15.30mid-low pressure pump ,CB18/15 mid pressure pump

Fire artillery range

Water≥50m,foam ≥45m





1. Contact Information











2.   Factory Certifications

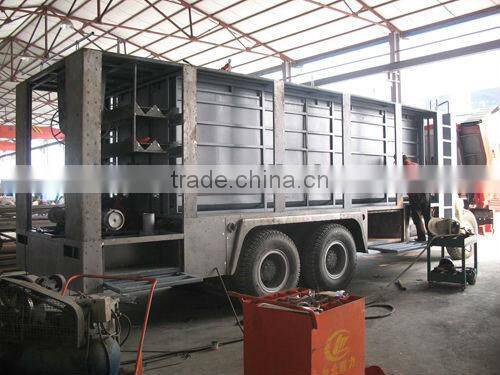

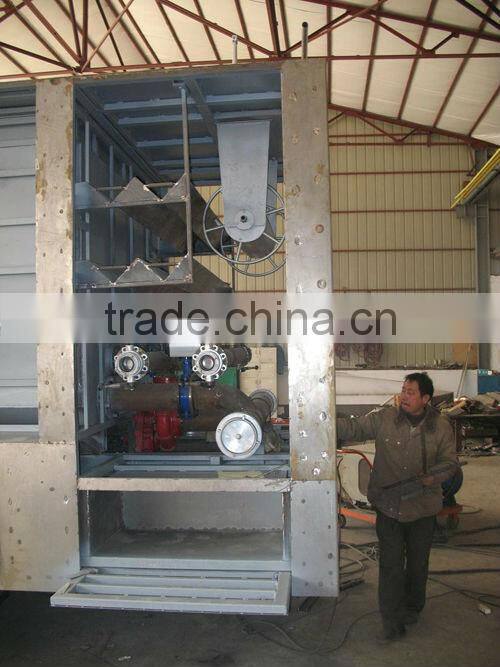

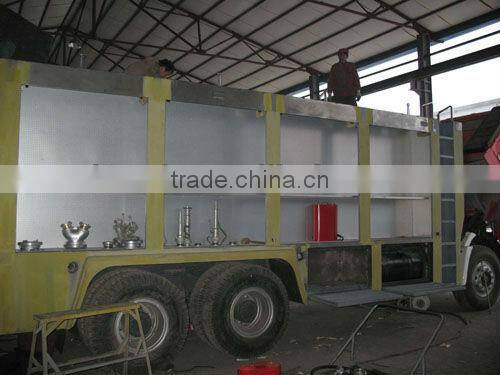

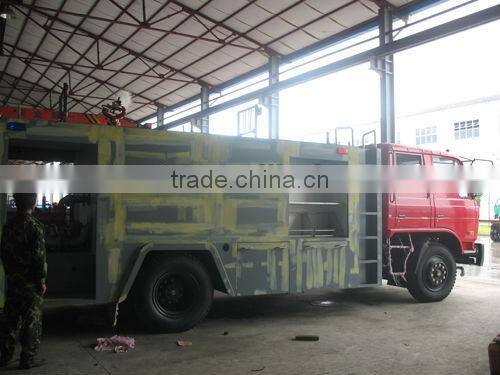

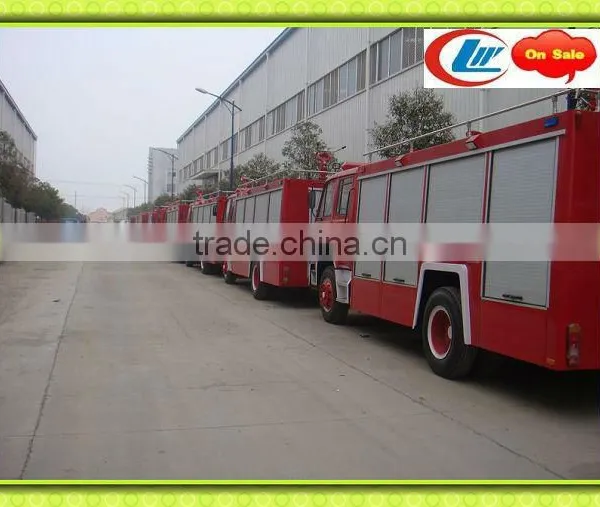

 3. Production Pictures







Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine

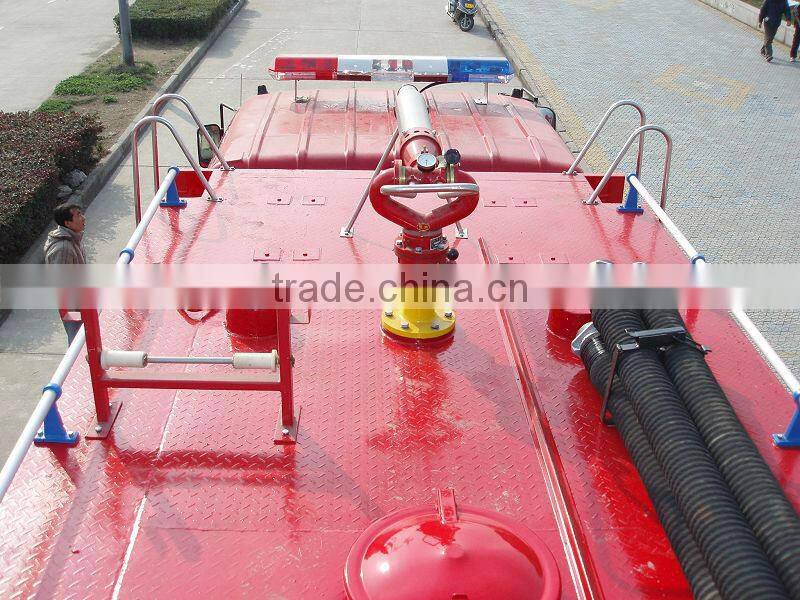

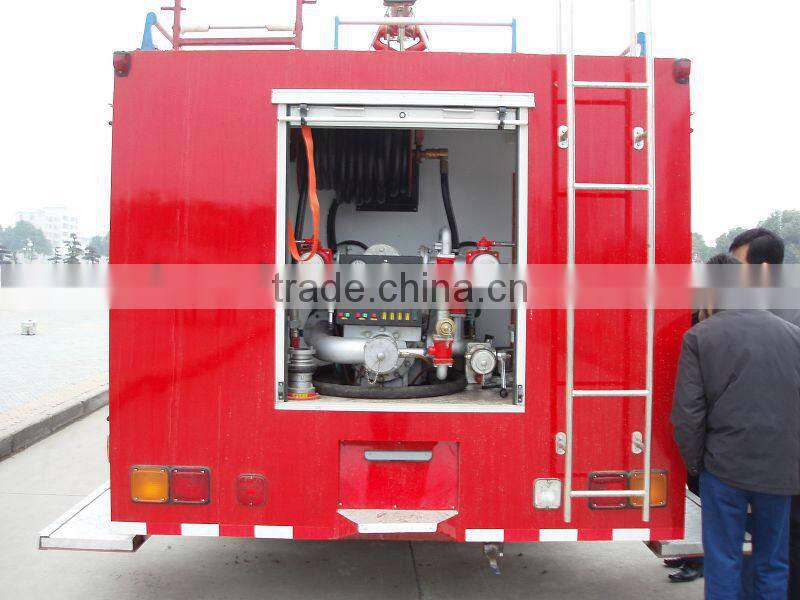

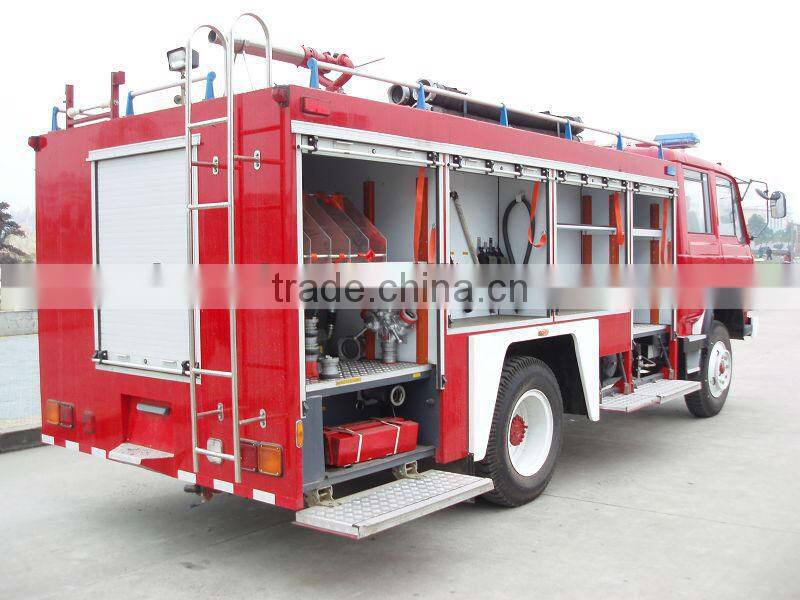

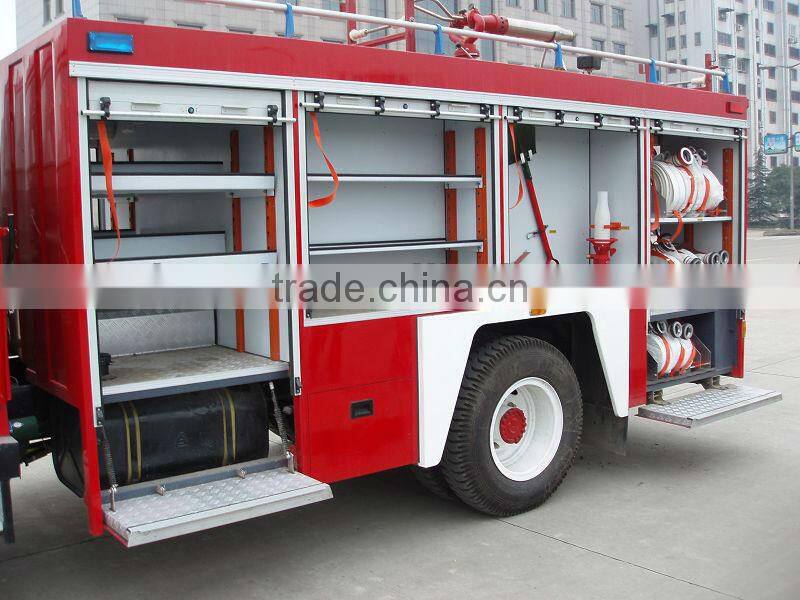

4. some detailed pictures:

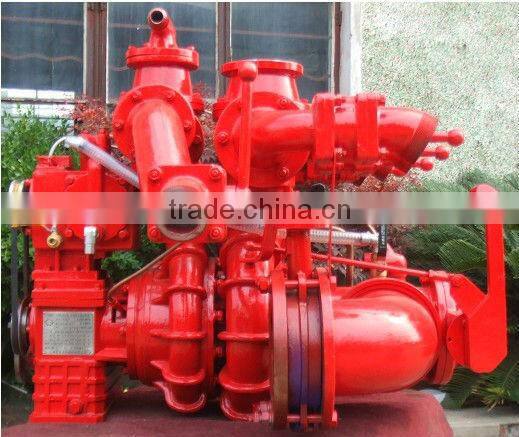

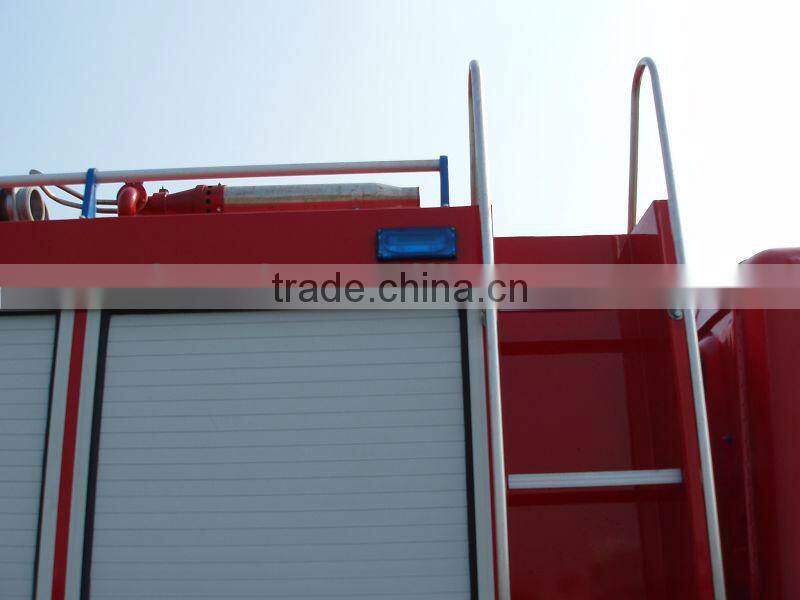

Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine



Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine



Dongfeng 140 Fire-fighting Vehicle, water fire engine,foam fire engine
